Aluminum silicate stone wol fiber, with performance of soft, flexible.etc
- Product Details
- {{item.text}}
Quick Details
-
Ultimate Strength (≥ MPa):
-
0.04
-
Density (kg/m³ ):
-
128
-
Length:
-
3600/7200/14640mm
-
Working Temperature:
-
1000-1350
-
Fiber Diameter:
-
3-5um
-
Shrinkage (1800 ℉, 3h):
-
3 (hours)
-
Thermal Conductivity:
-
0.055-0.180(W.k.m.)
-
Model Number:
-
Ceramic Fiber Blanket
-
Brand Name:
-
Ceramic Fiber Blanket
-
Place of Origin:
-
Tianjin, China
-
Color:
-
Pure white
-
Cetificate:
-
ISO
-
Size:
-
As customers' requirements
-
Name:
-
Ceramic Fiber Blanket
-
width:
-
610mm
-
length:
-
3000-7200mm
-
thickness:
-
25-150mm
-
sample:
-
free
-
Packing:
-
woven bag
-
name:
-
ceramic fibre blanket
Quick Details
-
Thickness:
-
10-50mm
-
Width:
-
610/1220mm
-
Chemical Composition:
-
AL2O3+SIO2
-
Ultimate Strength (≥ MPa):
-
0.04
-
Density (kg/m³ ):
-
128
-
Length:
-
3600/7200/14640mm
-
Working Temperature:
-
1000-1350
-
Fiber Diameter:
-
3-5um
-
Shrinkage (1800 ℉, 3h):
-
3 (hours)
-
Thermal Conductivity:
-
0.055-0.180(W.k.m.)
-
Model Number:
-
Ceramic Fiber Blanket
-
Brand Name:
-
Ceramic Fiber Blanket
-
Place of Origin:
-
Tianjin, China
-
Color:
-
Pure white
-
Cetificate:
-
ISO
-
Size:
-
As customers' requirements
-
Name:
-
Ceramic Fiber Blanket
-
width:
-
610mm
-
length:
-
3000-7200mm
-
thickness:
-
25-150mm
-
sample:
-
free
-
Packing:
-
woven bag
-
name:
-
ceramic fibre blanket

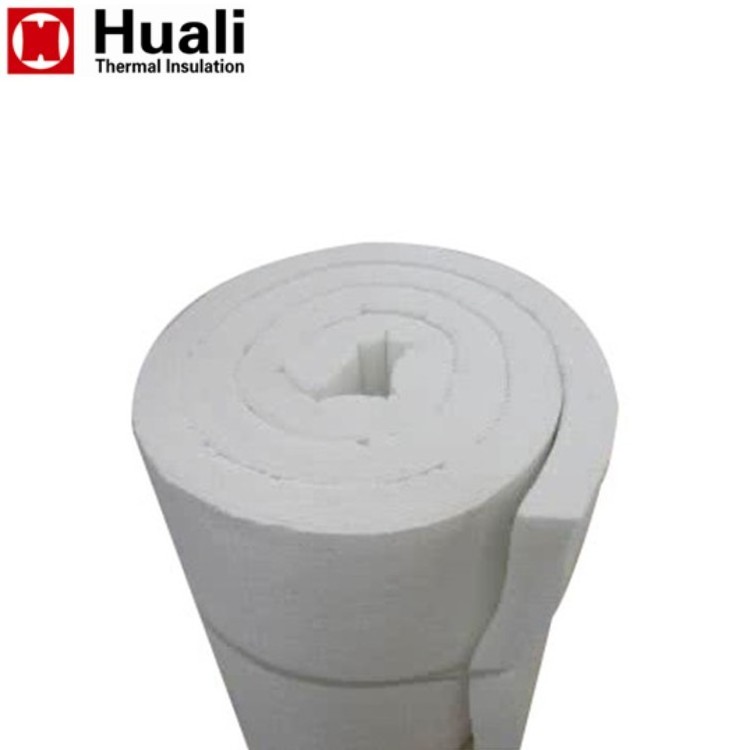

CERAMIC WOOL BLANKET
Ceramic Fibre Insulation Blanket, Aluminum Silicate Ceramic Fiber Wool Felt
Ceramic wool is made from aluminum silicate stone, burn above 2000℃ electric stove melt, spray to blow fiber. It is widely uesed for pipe and equipments of pyroelectricity, petroleum-chemical, boats, building, machines, boilers,etc. with the performance of fire prevention, heat insulation, sound absorption,and other so many technical features.
|
Item
|
|
Standard
|
High Pure
|
High Aluminum
|
Zirconium
|
|
|
Classification Temp(℃）
|
|
1260
|
1260
|
1360
|
1430
|
|
|
Service Temp(℃）
|
|
≤1050
|
≤1100
|
≤1200
|
≤1350
|
|
|
Color
|
|
White
|
White
|
White
|
White
|
|
|
Density(kg/m3)
|
|
96-128
|
96-128
|
96-128
|
96-128
|
|
|
Permanent linear shrinkage (%)
|
|
1000°C×24h≤3
|
1000°C×24h≤3
|
1200°C×24h≤3
|
1350°C×24h≤3
|
|
|
Thermal conductivity (average temperature(70±52) (w/m.k)
( 128kg/m3)
|
|
0.09(400°C)
0.16(800°C)
|
0.09(400°C)
0.16(800°C)
|
0.12(600°C)
0.20(1000°C)
|
0.16(800°C)
0.20(1000°C)
|
|
|
Tensile strength (MPa) ( 128kg/m3)
|
|
0.08-0.12
|
0.08-0.12
|
0.08-0.12
|
0.08-0.12
|
|
|
|
AL2O3
|
45-46
|
47-49
|
52-55
|
39-40
|
|
|
|
AL2O3+SiO2
|
97
|
99
|
99
|
-
|
|
|
|
AL2O3+SiO2+ZrO2
|
-
|
-
|
-
|
99
|
|
|
|
ZrO2
|
-
|
-
|
-
|
15-17
|
|
|
|
Fe2O3
|
≤1.0
|
≤0.2
|
≤0.2
|
≤0.2
|
|
|
|
Na2O+K2O
|
≤0.5
|
≤0.2
|
≤0.2
|
≤0.2
|
|
|
Ceramic Wool Blanket
|
|
|
|
Density
|
96-128kg/m3
|
|
|
Length
|
3~7m
|
|
|
Width
|
610mm
|
|
|
Thickness
|
20-80mm
|
|
|
Remark
|
Special size can be customized
|
|
Raw Material
Anti-corrosion
Ceramic wool fiber blanket is anti-corrosion, firm, stable, durable.etc.
High temperature
Ceramic wool blanket can be used above 1000℃ for high tamperature, moreover, stability is perfect
Fire prevention
Ceramic fiber blanket is ignornic aluminum fiber, thus non-cumbustible, with good fire resistant performance.
HUALI PROFILE
Huali is established in 1995 and headquater is located in Tianjin of China, with registered capital of 100 million RMB, 8 branches, more than 500 employee. We are not only a insulation manufacturer but also engineering company for installation service, insulation solutions as EPC insulation contractor. Since 2013, Huali developed into the LNG market and successfully finish several international projects of Ichthys, Yamal, KIPIC, and now is specilized in GCGV modules built, future Canada LNG and Arctic 2 etc. If you want to know more inforamtion about us or cooperate with Huali, you can search our web-site: www. hualiinsulation. com or contact us directly.
FAQ
Q: Are you a manufacturer or a trading company ?
A: We are a manufacturer founded in 1995, located in Tianjin China, with 8 branches
Q: Can you accept neutral packing & OEM ?
A: Normally, our packing is carton with Huali logo , but we can accept the neutral packing and OEM. However, custom should pay the OEM packing charge.
Q: Can you provide the sample for free ?
A: We provide some samples for free, but the express charge should be bore by customer
.
Q: What's the lead time?
A: 7-15 days after receipt of advanced payment
Q: What's the payment term?
A: 30% advanced payment and 70% paid prior to load by TT. and large amount can be paid by LC.
Q: How to contact you?
A: Contact us via email sales4@ hualibw.com, or wechat / whatsapp +86 13102032697
