Quick Details
-
Application:
-
Hotel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HAIDA
-
Model Number:
-
TS-80
-
Material:
-
Stainless Steel + Iron
-
Product Name:
-
Floor Spring
-
Closing Force:
-
EN5
-
Door Weight Upto:
-
300kg
-
Door Width Upto:
-
1400mm
-
Hold Open:
-
90° & 130°
-
Speed control:
-
Two Section Speed Control
-
Maximum Open Degree:
-
180°
-
Cycles Test:
-
2,000,000 cycles
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Hotel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HAIDA
-
Model Number:
-
TS-80
-
Material:
-
Stainless Steel + Iron
-
Product Name:
-
Floor Spring
-
Closing Force:
-
EN5
-
Door Weight Upto:
-
300kg
-
Door Width Upto:
-
1400mm
-
Hold Open:
-
90° & 130°
-
Speed control:
-
Two Section Speed Control
-
Maximum Open Degree:
-
180°
-
Cycles Test:
-
2,000,000 cycles

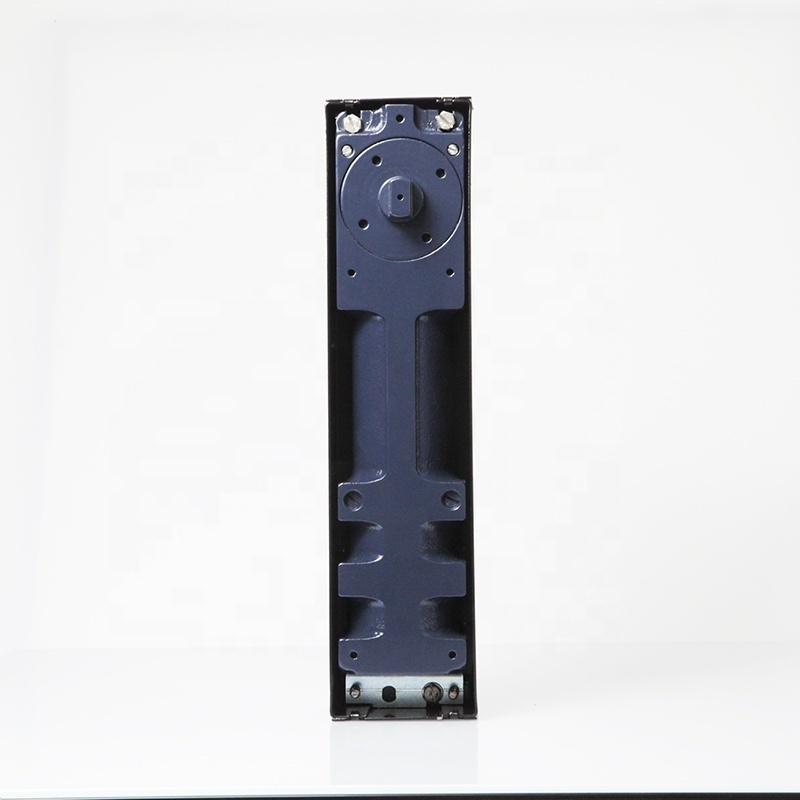

Heavy Duty 300kg Steel Door Closer Double Acting Hydraulic Cylinder Floor Spring Hinge TS-80
| Technical Parameters |
|
Model |
TS-80 |
| Applicable Standard | EN1154 & ANSI156.4&UL |
| Engine Cylinder | Single |
| Max Door With | 1400mm |
| Max Door Weight | 300kg |
| Max Open Degree | 180° |
| Stop Device | 90° & 130 ° |
| Latching Speed Adjustment | 0-20° |
| Closing Speed Adjustment | 20°-90° |
| Application Temperature | -40°-60° |
| Dimension:Length*Width*Height | 341mm*78mm*60mm |
| Dimension of Appearance |
| Product Features |
A. 2,000,000cycles tested by Intertek
B. ANSI/BHMA 156.4 Grade 1 Certification
C. Germany design same as BTS80, popular all over the world
D. Door weight upto 300KG
E.
Applicable for glass door, wooden door, aluminum door and frame door
F.
Germany type spindle for optional
| Special Function |
| Product Details |
