Quick Details
-
Brand Name:
-
Cruking
-
Model Number:
-
FDT365S-SA
-
Dimension(Long * Breadth * High):
-
2960*1650*2285 mm
-
Ground pressure:
-
68.3Kpa
-
Track gauge:
-
1150mm
-
Ground clearance:
-
240mm
-
Lift height of blade:
-
500mm
-
Height of blade:
-
675mm
-
Shoe width:
-
260mm
Quick Details
-
Machine Weight:
-
2830 KG, 2830kg
-
Dozing Capacity:
-
4.3 cbm, 4.3cbm
-
Place of Origin:
-
Guangxi, China, Guangxi, China
-
Brand Name:
-
Cruking
-
Model Number:
-
FDT365S-SA
-
Dimension(Long * Breadth * High):
-
2960*1650*2285 mm
-
Ground pressure:
-
68.3Kpa
-
Track gauge:
-
1150mm
-
Ground clearance:
-
240mm
-
Lift height of blade:
-
500mm
-
Height of blade:
-
675mm
-
Shoe width:
-
260mm

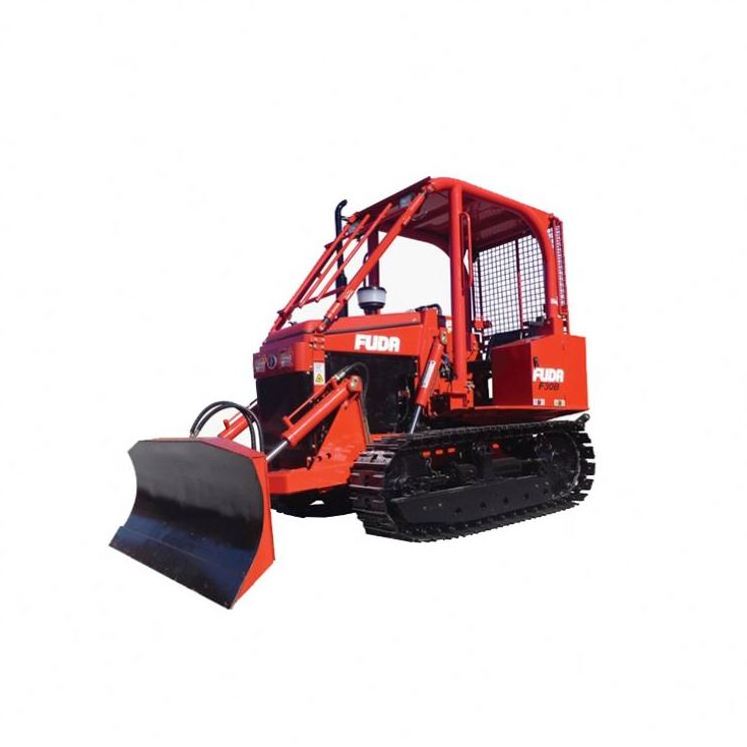

Chinese hot sale new small crawler bulldozer FDT356S-SA agricultural bulldozer
FDT356S-6FLH bulldozer is equipped with the engine of high power, low fuel consumption, and high torque reserve, featuring high working efficiency and high performance reliability
1) Product name: American crawler mini garden tractor
2) Keywords: crawler bulldozer
3) After-sales service system:
4) Length, width, height: 3000 * 1700 * 2300mm
5) Body weight: 3300Kg
6) Exercise method: crawler bulldozer
7) Status: new
8) Model: FDT356S-6FLH
9) Brand: FUDA
10) Origin: GUANGXI
11) Engine: diesel engine
|
Model Specifications |
FDT356S-SA |
|
|
Engine |
Type |
In-line,water-cooling,swirl chamber |
|
No.of Cylin.der |
4 |
|
|
Cylin.der Bore |
85mm |
|
|
Piston Stroke |
95mm |
|
|
Displacement |
2.16L |
|
|
Aspiration |
Natural |
|
|
Max. power |
25.7kw@2350rpm |
|
|
Max. torque |
120Nm@1650rpm |
|
|
Fuel |
Diesel |
|
|
Fuel consumption |
≤ 264g /kWh |
|
|
Lubrication means |
Full pressure by rotary pump |
|
|
transmission |
Clutch |
Single dry disk diaphragm-spring clutch 10”, pedal control |
|
Gearbox |
2-shaft, sliding gear shift, 8fwd+2rev |
|
|
Main drive |
Spiral bevel gear |
|
|
Final drive |
Externally meshed spur gear |
|
|
Brake and steering (interconnected) |
steering clutch |
Dry ceramic-metallic multi disk clutch |
|
brakes |
Brand brakes controlled by pedals |
|
|
Undercarriage system |
Undercarriage frame |
Semi-rigid |
|
Track rollers(each side) |
5+1 |
|
|
Tension device |
Helical spring, adjusted by screw |
|
|
Number of shoes |
32 (1pitch=130mm) |
|
