Quick Details
-
Model Number:
-
KL-2DHS1
-
Place of Origin:
-
Henan, China
-
Product name:
-
electrical hoist gantry crane chain for lifting
-
Sling Type:
-
Chain
-
Usage:
-
Construction Hoist
-
Capacity:
-
300KG-10T
-
Color:
-
Red or Blue
-
Power Source:
-
Electric Chain
-
Power supply:
-
220V/380V
-
Lifting height:
-
3m/6m/9m
-
Application:
-
Lifting Industry
Quick Details
-
Warranty:
-
2 years, 2 Years
-
Voltage:
-
220V/50HZ, 380v
-
Lift Speed:
-
1m/min
-
Model Number:
-
KL-2DHS1
-
Place of Origin:
-
Henan, China
-
Product name:
-
electrical hoist gantry crane chain for lifting
-
Sling Type:
-
Chain
-
Usage:
-
Construction Hoist
-
Capacity:
-
300KG-10T
-
Color:
-
Red or Blue
-
Power Source:
-
Electric Chain
-
Power supply:
-
220V/380V
-
Lifting height:
-
3m/6m/9m
-
Application:
-
Lifting Industry

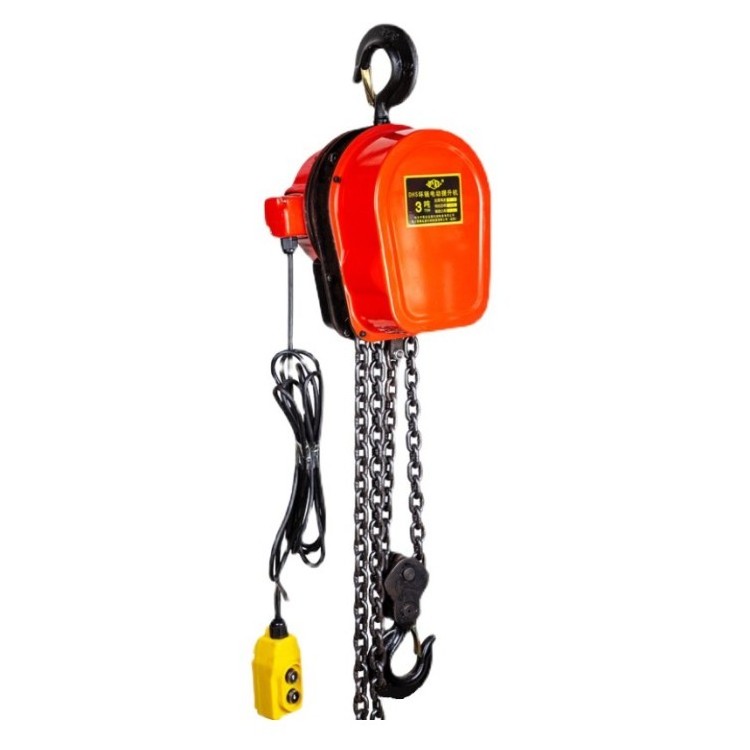

Electric Chain Hoist
Electric chain hoist is a light and small lifting equipment. The electric chain hoist consists of a motor, a transmission mechanism and a sprocket. The electric chain hoist is produced in accordance with international standards, which is strong and durable. The internal gears are all quenched at high temperature, which increases the wear resistance of the gears and the fit between the gears is tight. This electric hoist can not only be used for fixed suspension, but also can be used with electric monorail trolley and hand-push/hand-pull monorail trolley.
Features:
1.
Shell
: The shell is light and strong, with high heat dissipation rate, and the fully sealed design is suitable for use in environments with poor operating conditions.
2.
Braking device
: The braking adopts disc DC electromagnetic field braking, with large braking torque, stable, rapid and low noise.
3.
Chain
: 80-grade super-strong heat-treated alloy steel chain is used to make the chain more tough, stronger and wear-resistant, ensuring safety.
4.
Remote control
: It is light and can be operated with one hand. The engineering plastic shell can be used for a longer time. The anti-fall and waterproof button can be used for a longer time. It can be equipped with a wireless remote control. Wireless) remote control.
Specification
This product has two voltage types, 380v and 220v. The length of the chain and voltage can be customized. Please consult customer service for specific parameters.
|
380V
|
|
|
|
|||
|
Model
|
KL-3DHS1
|
KL-3DHS5
|
KL-3DHS20
|
|||
|
Rated lifting capacity
|
1ton
|
5ton
|
20ton
|
|||
|
Lifting speed
|
2.25m/min
|
0.9m/min
|
0.45m/min
|
|||
|
Lifting Height
|
3-12M
|
|
|
|||
|
Motor Power
|
500w
|
750w
|
750W
|
|||
|
Motor speed
|
1380rev/min
|
|
|
|||
|
Weight
|
36KG
|
57KG
|
195KG
|
|||
|
220V
|
|
|
|
|||
|
Model
|
KL-2DHS1
|
KL-2DHS2
|
KL-2DHS3
|
|||
|
Rated lifting capacity
|
1ton
|
2ton
|
3ton
|
|||
|
Lifting speed
|
1.2m/min
|
0.6m/min
|
0.6m/min
|
|||
|
Lifting height
|
3-12M
|
|
|
|||
|
Motor power
|
550W
|
|
|
|||
|
Chain model
|
6MM*1
|
6MM*2
|
8MM*2
|
|||
|
Net weight of the whole machine
|
3M 28KG
|
3M 31KG
|
3M37KG
|
|||
|
Shortest distance
|
0.8
|
1.6
|
2.8
|
|||
Products Real Show
Product Details
Pure copper motor
Line multi-winding, fast heat dissipation, strong power and more stable
G80 manganese steel chain
Quenching and refining，
manufacturing of high strength manganese steel
High strength, strong tensile force, not easy to break
Increase the air vent
Good heat dissipation, strong power, strong performance, fast heat dissipation
Manganese steel hook
Made of high-quality alloy manganese steel, it is not easy to deform and fall off, and it is more reliable to use
Shell spray treatment
Thickened stainless steel shell, fast heat dissipation, light weight, strong and durable
Hook distance display
1 ton,the shortest distance is 55cm
2 tons,the shortest distance is 60cm
3 tons,the shortest distance is 65cm
5 tons,the shortest distance is 75cm
Buyer shows
Packing and delivery
Our company
Henan Kellen Machinery Equipment Co.,Ltd
Henan Kellen Machinery Equipment Co.,Ltd is mainly manufacture the fruit and vegetable juice machine,vegetable dicing machine,ice cube making machine.popcorn machine,dumpling maker machine,straw crushers, peanut shellers, dryer machine,flower refrigerator displayer, oil fryer and so on.Our machine adopt the latest technology and complied with international quality standard,.made of high quality stainless steel with competitive price.Many of our products are exported to America,
Australia,France,Netherlands,Ireland and more than 20 countries and regions,we have got a lot of good feedbacks from clients. "High reputation,Competitive price,Efficient delivery speed and Good after-se1l service"is our principle,looking forward to cooperate with more friends from all over the word. If you are interested in any of our mamachine,welcome to contact us any time freely, will try our best to provide you help timely.
FAQ
Q1: what is MOQ?
A1: no matter which model 1set is our MOQ(
Minist Order Quntity
)
.
Q2: Where will the orders be shipped from?
A2: It will ship from the main ports China,Shanghai ,Qingdao,Tianjin.
Q3: what is payment Terms for making order?
A3: Our payment terms is T/T or use Alibaba Trade Assurance (50% deposit+50%balance).
Q4: are you manufacturer?
A4: yes,OEM,we are manufacturer with own workshop,welcome to visit our factory if u have time.
Q5: can we make customized order?
A5: yes,we accept custom design.
Q6:Can you offer us the necessary paper to do the customs clearance?
A6:Yes, of course. We will send you the commercial invoice, sales contract, packing list, bill of lading(FOB or CFR, CIF terms), insurance policy (if CIF terms), also CO if you need.
Q7: can your meet our country's standards?
A7: we can do your order as your request to meet different standards .
Q8: How about quality guarantee Terms?
A8: Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer.
