Quick Details
-
Warranty:
-
25 years, 25 years
-
Brand Name:
-
Yangtze Solar
-
Model Number:
-
YS500M-96
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1956*1310*45 mm
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO/INMETRO, CE/TUV/ISO
-
Solar cell:
-
Mono 156*156 Cell
-
Junction Box:
-
IP67 Rated
-
Frame:
-
Anodized Aluminium Alloy
-
Color:
-
Blue & Black
-
Front Glass:
-
High Transparency Temperd Glass
-
Cable:
-
900mm PV Cable
-
OEM Order:
-
Acceptable
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Type:
-
PERC
-
Panel Efficiency:
-
19.8%
-
Warranty:
-
25 years, 25 years
-
Brand Name:
-
Yangtze Solar
-
Model Number:
-
YS500M-96
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1956*1310*45 mm
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO/INMETRO, CE/TUV/ISO
-
Solar cell:
-
Mono 156*156 Cell
-
Junction Box:
-
IP67 Rated
-
Frame:
-
Anodized Aluminium Alloy
-
Color:
-
Blue & Black
-
Front Glass:
-
High Transparency Temperd Glass
-
Cable:
-
900mm PV Cable
-
OEM Order:
-
Acceptable
Product Description

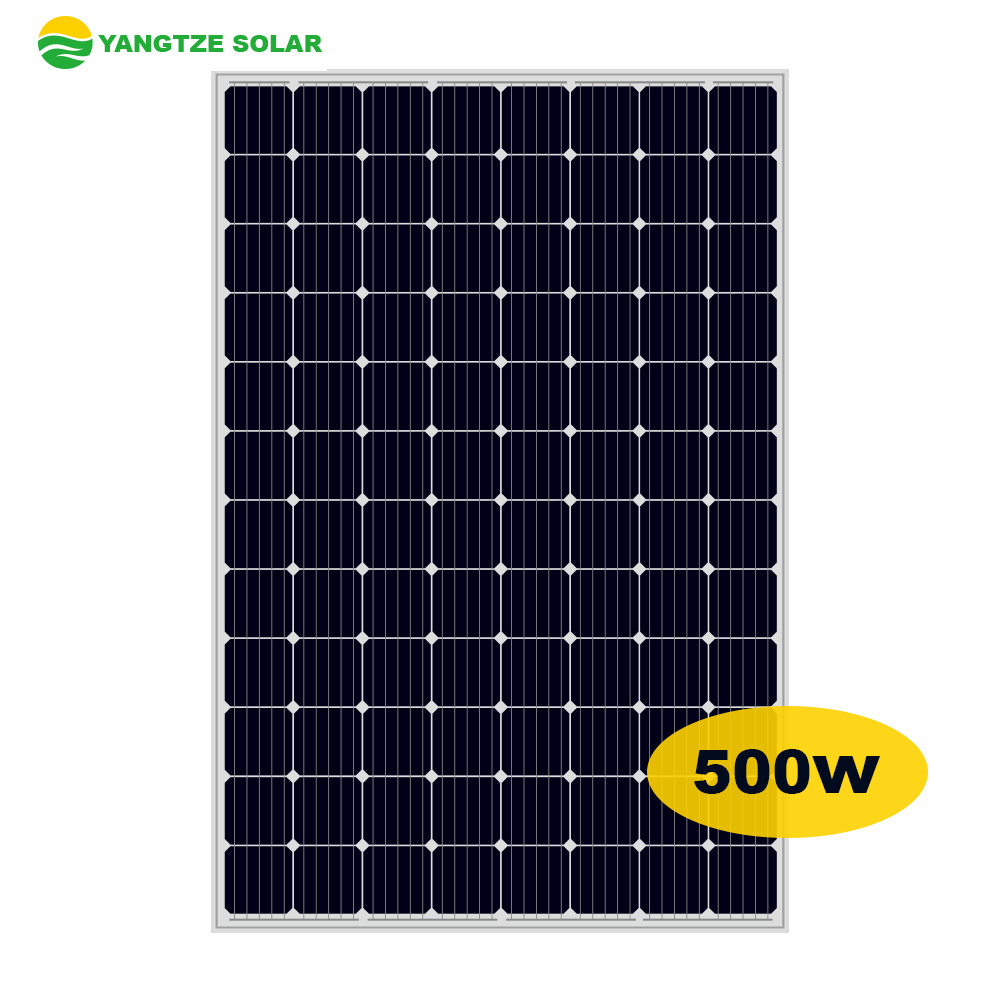

Free shipping highest efficiency 500w 1000w 10000kw monocrystalline solar panels direct price in China
| Model | YS400M-96 | YS420M-96 | YS440M-96 | YS450M-96 | YS460M-96 | YS480M-96 | YS500M-96 |
| Rated Maximum Power at STC | 400W | 420W | 440W | 450W | 460W | 480W | 500W |
| Maximum Power Voltage (Vmp) | 47.22V | 47.45V | 47.71V | 47.87V | 48.01V | 48.35V | 48.60V |
| Maximum Power Current (Imp) | 8.47A | 8.85A | 9.22A | 9.40A | 9.59A | 9.93A | 10.29A |
| Open Circuit Voltage ( Voc) | 58.05V | 58.28V | 58.42V | 58.57V | 58.75V | 58.90V | 59.12V |
| Short Circuit Current (Isc) | 9.18A | 9.40A | 9.66A | 9.73A | 9.78A | 10.04A | 10.44A |
| Module Efficiency | 15.61% | 16.39% | 17.17% | 17.56% | 17.95% | 18.73% | 19.46% |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
| STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5 | |||||||
| Mechanical Parameters | |||||||
| Cell Type | Mono-crystalline 156x156mm (6inch) | ||||||
| No. of Cells | 96 (8x12) | ||||||
| Dimension | 1956x1310x45mm | ||||||
| Glass | 3.2mm, High Transmission, Low Iron, Tempered Glass | ||||||
| Junction Box | IP65&IP67 Rated | ||||||
| Output Cable | Section Size: 4mm² , Length: 900mm | ||||||
| Frame | Anodized Aluminum Alloy | ||||||
| No. of Bypass Diodes | 6 | ||||||
| Connector | MC4 Compatible | ||||||
| Working Conditions | |||||||
| Maximum System Voltage | DC 1000V(IEC) / 1500V(IEC) / 1000V(UL) | ||||||
| Operating Temperature | -40°c~+85°c | ||||||
| Maximum Series Fuse | 15A | ||||||
| NOCT | 45±2°c | ||||||
| Application Class | Class A | ||||||
| Temperature Coefficient | |||||||
| Temperature Coefficient of Pmax | -0.39%/°c | ||||||
| Temperature Coefficient of Voc | -0.29%/°c | ||||||
| Temperature Coefficient of Isc | +0.05%/°c | ||||||
