Quick Details
-
Brand Name:
-
Gaimc
-
Model Number:
-
GOG100
-
Feature:
-
Oval Gear Flowmeter
-
Medium:
-
Fuel oil, chemical liquids,other liquids
-
Accuracy:
-
0.5% or 0.2%
-
Medium temperature:
-
-20℃-100℃
-
Operating temperature:
-
-20℃~60℃
-
Medium viscosity:
-
2-8mPa.S
-
Housing material:
-
Cast iron/ steel/ stainless steel
-
Nominal diameter:
-
DN10 - DN200
-
Structure:
-
With insulation jacket, tube thread, etc.
-
Application:
-
Petrolum, chemical, medical, transportation, food and other industries
Quick Details
-
Type:
-
oval gear flow meter
-
Warranty:
-
1 years
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Gaimc
-
Model Number:
-
GOG100
-
Feature:
-
Oval Gear Flowmeter
-
Medium:
-
Fuel oil, chemical liquids,other liquids
-
Accuracy:
-
0.5% or 0.2%
-
Medium temperature:
-
-20℃-100℃
-
Operating temperature:
-
-20℃~60℃
-
Medium viscosity:
-
2-8mPa.S
-
Housing material:
-
Cast iron/ steel/ stainless steel
-
Nominal diameter:
-
DN10 - DN200
-
Structure:
-
With insulation jacket, tube thread, etc.
-
Application:
-
Petrolum, chemical, medical, transportation, food and other industries

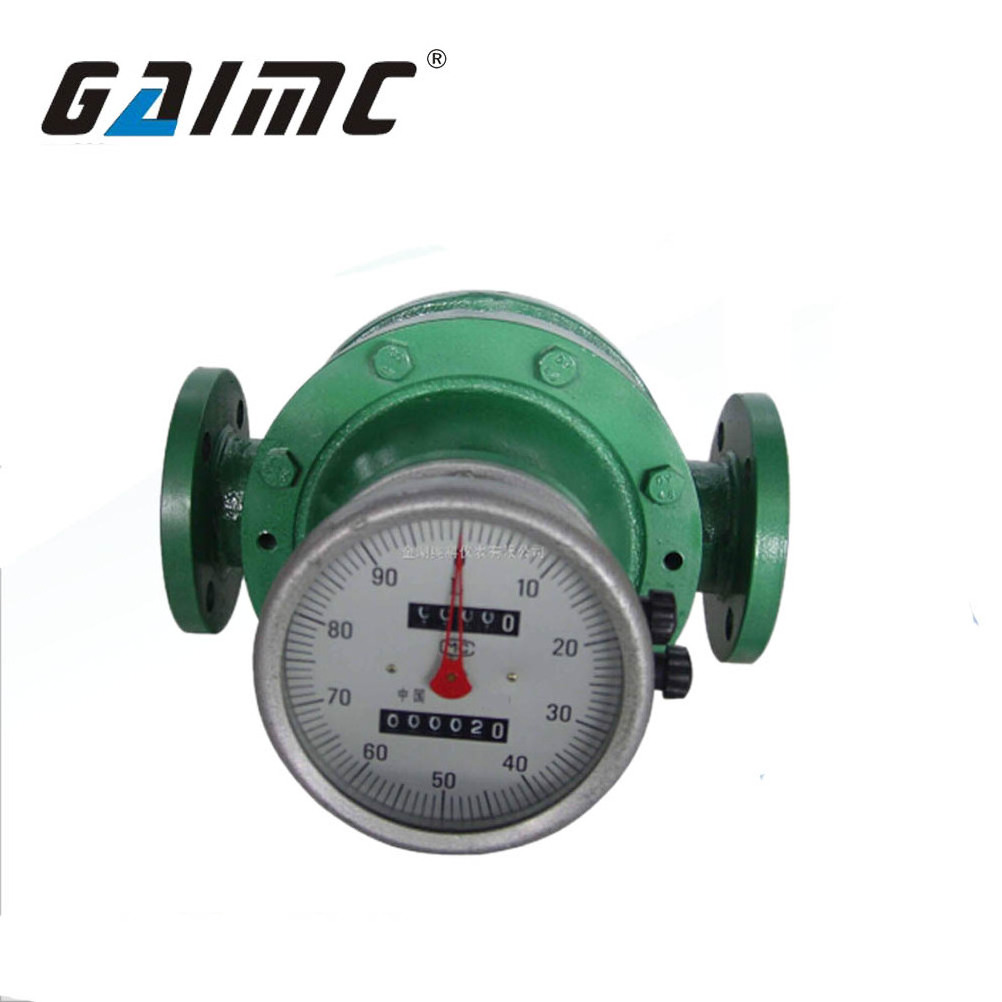

Cast Steel Oval Gear Flowmeters in Resin Flow Measurement Instrument
As one of the typical positive displacement flow meter, the oval gear flow meter is used to measure flow rate of liquid in pipelines under certain pressure.
The GOG100 oval gear flow meter is widely applied in petrolum, chemical, medical, transportation, food and other commercial industries for flow measurement and is particular suitable for measurement of fuel oil.
Oval Gear Flowmeter selection recommendation
Cast iron
construction
oval gear flow meter is suitable for oils and other non corrosive liquid for cast iron;
Steel construction
ones for high pressure low corrosion liquid medium;
Cast iron construction
with aluminum alloy rotator
oval gear flow meter shall be used for low viscosity, low corrosion medium;
Stainless steel construction ones shall be used for liquid medium with strong corrosion, including acid, alkali, salt or other organic compounds.
Operating principle
Technical Specification
|
|
Housing / front and back lids |
Plate |
Oval gears |
Shaft |
Shaft sleeve |
Nominal pressure (Mpa) |
|
GOG-A |
Cast iron |
Cast iron |
Cast iron/ Stainless steel/ Aluminum alloy |
Stainless steel |
Broze oil retaining bearing orantifriction bearing |
1.6 |
|
GOG-E |
Cast steel |
Cast iron |
Diametersmaller than DN50: 6.3 DN80-100: 4.0/6.3 DN150-200: 2.5 |
|||
|
GOG-Q |
Cast iron/ steel |
Cast iron |
Graphite |
1.6 |
||
|
GOG-B/C |
Stainless steel |
Cast iron |
Stainless steel |
Graphite or antifriction bearing |
Diameter larger than DN50: 2.5 Diameter larger than DN80: 2.5 |
|
|
Note: 1. Material of GOG-C is 0Cr18NiMo2Ti and GOG-B is 0Cr18NiTi 2. Default type flange: flow meter with nominal pressure lower than 2.5MPa will be with male flange. Product with 6.3Mpa will be with male and female flange, and product with 4.0 MPa will be with both type of flanges. 3. Please inform us for special material you need. |
||||||
Flow rate range Unit m3/h
|
|
Cast iron |
Cast steel |
Stainless steel |
|||
|
Nominal pressure MPa |
1.0 1.6 |
2.5 4.0 6.4 |
1.0 1.6 |
|||
|
Medium viscosity |
2-8mPa.S |
|||||
|
Medium temp. |
-20℃-100℃ |
|||||
|
Nominal diameter |
Cast iron |
Cast steel |
Stainless steel |
|||
|
0.5 class accuracy |
0.2 class accuracy |
0.5 class accuracy |
0.2 class accuracy |
0.5 class accuracy |
0.2 class accuracy |
|
|
10 |
0.08-0.4 |
0.1-0.4 |
0.08-0.4 |
0.1-0.4 |
0.08-0.4 |
0.1-0.4 |
|
15 |
0.25-1.5 |
0.3-1.5 |
0.25-1.5 |
0.3-1.5 |
0.25-1.5 |
0.3-1.5 |
|
20 |
0.5-3 |
0.6-3 |
0.5-3 |
0.6-3 |
0.5-3 |
0.6-3 |
|
25 |
1-6 |
1.2-6 |
1-6 |
1.2-6 |
1-6 |
1.2-6 |
|
40 |
2.5-15 |
3-15 |
2.5-15 |
3-15 |
2.5-15 |
3-15 |
|
50 |
4-24 |
4.8-24 |
4-24 |
4.8-24 |
4-24 |
4.8-24 |
|
80 |
10-60 |
12-60 |
10-60 |
12-60 |
10-60 |
12-60 |
|
100 |
16-100 |
20-100 |
16-100 |
20-100 |
16-100 |
20-100 |
|
150 |
32-190 |
38-190 |
32-190 |
38-190 |
32-190 |
38-190 |
|
200 |
34-340 |
68-340 |
34-340 |
68-340 |
34-340 |
68-340 |
Structure
Order Guide
|
GOG100 |
Oval gear flow meter |
|||||||
|
|
Code |
Structure |
||||||
|
U |
With insulation jacket |
|||||||
|
G |
Tube thread |
|||||||
|
H |
Welding type steel flow meter |
|||||||
|
P |
Product special for nuclear power |
|||||||
|
PI |
Anti-shock product special for nuclear power |
|||||||
|
|
Code |
Applications |
||||||
|
N |
High viscosity liquid flow meter |
|||||||
|
SP |
Flow meter for food |
|||||||
|
T1/2 |
High temp. cooling tube (1 long 2 short tubes) |
|||||||
|
Q |
Gasoline measurement flow meter |
|||||||
|
|
Code |
Housing material |
||||||
|
A |
Cast iron |
|||||||
|
B/C |
Stainless steel |
|||||||
|
E |
Cast steel |
|||||||
|
|
Code |
Gear material |
||||||
|
A |
Cast iron |
|||||||
|
B/C |
Stainless steel |
|||||||
|
L |
Aluminum alloy |
|||||||
|
|
Code |
Nominal diameter |
||||||
|
|
10 … 200 |
10mm … 200mm |
||||||
|
|
Code |
Special requirement |
||||||
|
S/K |
Reducing (S) or expanding (K) flange |
|||||||
|
|
II |
Counter |
||||||
|
A/A1 |
For counter with diameter smaller than DN40 |
|||||||
|
A5/J1 |
Single roller counter |
|||||||
|
BELZ |
Digital counter |
|||||||
|
A6 |
Null counter |
|||||||
|
BXZ |
Small scale flow meter counter |
|||||||
