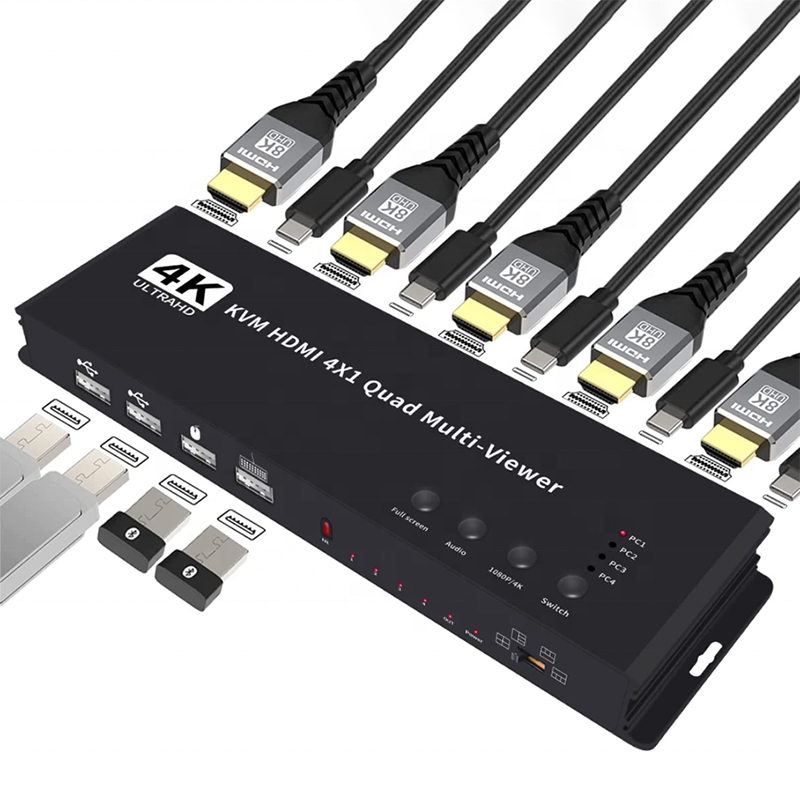

4K HD HDMI KVM Switch 4 Ports HDMI USB Switch 4x1 HDMI KVM Quad Multiviewer Seamless Switch

Introduction:

1. HD 4x1 Quad Multi-viewer is a high performance with four HD screen segmentation and seamless switching output switch.

2. It can display 4HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 4 HD input signal synchronously.

3. The control methods of the switch is flexible, it can be switched via button and IR control.

4. It’s a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places.

[HDMI 4x1 Quad Multi-Viewer]: HDMI 1080P @ 60Hz, 3D, HDMI 1.4 compatible with multiple resolutions, supports HDMI 1.3a. HDCP1.2, input compatible with DV1.0 version. The audio output format is compatible with PCM2.0

[Stable transmission]: Built-in chip, stable transmission, stable performance, good heat dissipation and effective protection of split screen work. Metal shell, wear resistance, strong anti-interference.

[A variety of switching modes]: 4 HD inputs, 1 HDM output, 4 screen divisions, 4 types of switching without screen, supports 5 video switching modes (see Figure 2); supports infrared remote control; supports audio and video modes Change.

[Applicable equipment]: Suitable for HDMI input devices, computers, decoders, DVD players, PS4, smart boxes; for HDMI output devices, televisions, monitors, projectors; Widely used in multi-user videoconferencing systems, monitoring, live games, each Great shopping mall

Features:

Support 4 HD input, 1 HD output

Support 4 channels HD signal screen segmentation

Support 4 channels HD signal seamless switching

Support highest resolution up to 1080P/60Hz

Support IR control

Compatible HD 1.3a, HDCP1.2, input compatible DVI1.0 version

Support resolution: 1080P,720P,1080i,1024X768,1360X768 and so on

Support audio output format: PCM2 Support standard AWG26 cable, input up to 15 metres ,output up to 15 metres DC12V/1A power adapter

Net weight: 460g Dimension (L x W x H): 200mm*93mm*20mm

Specifications:

Maximum Single Link Range:1080P/60Hz

HD input resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p

HD output resolution:720p/1080p/60Hz

Supports video color format:24bit/deep color 30bit, 36bit Vertical Frequency Range:720/1080p@60Hz

Max bandwidth:225MHz

Max bandrate:6.7Gbps 1080P

Input/Output cable distance:15m AWG26 HD standard cable

Max working current: DC12V / 1A

Fives modes for switching:

MODE1: Switching IN1-IN4, to choose the audio output

MODE2: Switching IN1-IN4, the audio output is the same as the audio of the main interface. MODE3: IN1-IN4, the4 channels HD signal seamless switching

MODE4: Switching IN1-IN4 to HDMI Screen

MODE5: Double screen

Package Includes:

1x HDMI 4x1 quad multi-viewer

1x 12V/ 1A power adapter

1x Remote control

1x User manual
