Quick Details
-
Brand Name:
-
SNTOOM
-
Model Number:
-
EXKLT2
-
Max. Current:
-
5
-
Product name:
-

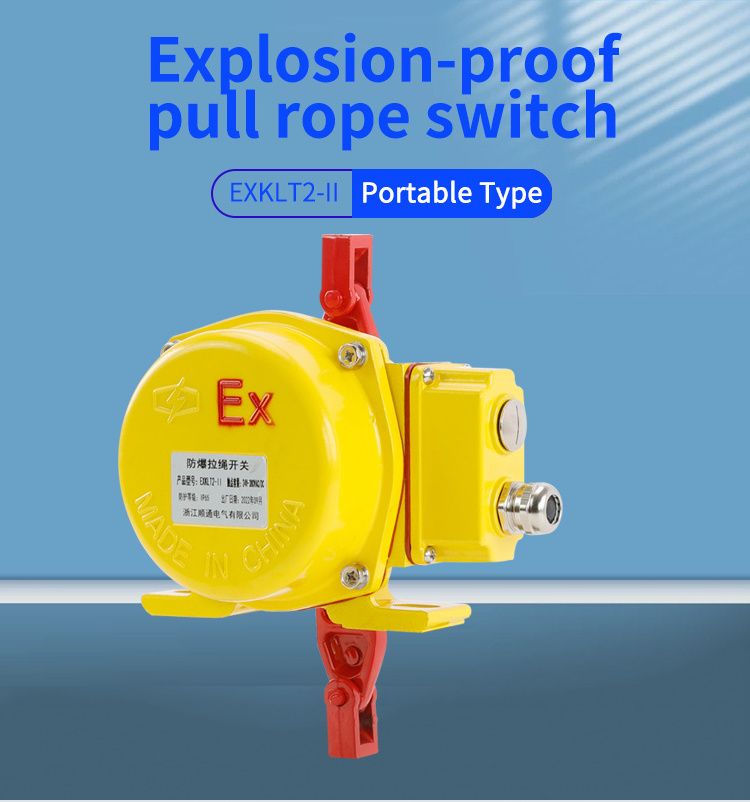

Explosion proof pull rope deviation switch
-
Color:
-
Yellow
-
Rated current:
-
5A
-
Rated voltage:
-
DC24-AC380(V)
-
Type:
-
Manual
-
Material:
-
Copper
-
Application:
-
Industrial
-
Function:
-
Safety Protection Device
-
ANY QUESTION:
-
Send
-
Condition:
-
100% Original
-
Certification:
-
CE/ISO/IEC
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
DC24-AC380(V)
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SNTOOM
-
Model Number:
-
EXKLT2
-
Max. Current:
-
5
-
Product name:
-
Explosion proof pull rope deviation switch
-
Color:
-
Yellow
-
Rated current:
-
5A
-
Rated voltage:
-
DC24-AC380(V)
-
Type:
-
Manual
-
Material:
-
Copper
-
Application:
-
Industrial
-
Function:
-
Safety Protection Device
-
ANY QUESTION:
-
Send
-
Condition:
-
100% Original
-
Certification:
-
CE/ISO/IEC
Product Description
Specification
|
Product name
|
Explosion-proof Rope switch
|
|
Limit angle
|
60°
|
|
Ambient temperature
|
-30℃ ~ +75℃
|
|
Reset method
|
Automatic reset
|
|
Action force
|
10KG
|
|
Contact capacity
|
24~380 AC/DC
|
|
Explosion- proof mark
|
Ex td A21 T80℃
|
|
Number of contacts
|
1(2) NO,1(2) NC
|
Working principle:When an emergency occurs at the tape transportation site, the steel wire rope attached to the rope switch lifting ears can be pulled, so that the slider inside the machine controls the internal micro switch to actuate, and sends a shutdown or alarm signal. Automatic reset models automatically reset after loosening the wire rope, manual reset models can only be reset after operating the reset handle.
