- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
1408*750*1120mm, 1408*750*1120mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support
-
Product name:
-
marble floor scrubber
-
Color:
-
Blue
-
Voltage:
-
24VDC
-
Brush rotation speed:
-
220rpm
-
Dirty water box:
-
105L
-
Weight:
-
145KGS
-
Cleaning width:
-
700MM
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CWZ
-
Power:
-
640
-
Dimension(L*W*H):
-
1408*750*1120mm, 1408*750*1120mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support
-
Product name:
-
marble floor scrubber
-
Color:
-
Blue
-
Voltage:
-
24VDC
-
Brush rotation speed:
-
220rpm
-
Dirty water box:
-
105L
-
Weight:
-
145KGS
-
Cleaning width:
-
700MM
floor washing machine, automatic floor scrubber, industrial zone cleaning equipment
Specifications
1) Disc brush and squeegee easy to operate
2) Brush floating tray design
3).CE,ISO900,QCQ.
4). low noise mode
Applications
The machine fit all ground of the business environment, paint ground, concrete and ceramic tile ground. Besides, it can provide excellent cleaning performance for workshop, storage, logistics center, supermarket, hospital and so on.
Features:
– The simple fuselage accord with the design of body engineering. It ensures that the clean work normal conducted.
– The oversized volume of solution water tank and recovery tank reduced time greatly, it is economic, environmental.
– Punchy double motor brush head effectively clean the ground quickly and thoroughly.
– Use the environmental protection and high-volume battery. The work time can up to 5 hours.
– This type machine is equipped on-board charger. It will make the cleaning work become more convenient.
– The large open transparent window of recovery tank will let user clearly observe the circumstantial inside it and clean it quickly.
– Unique brush unloaded device. You can ensure faster, simpler replacement the brush without any tools.
Plenty of power support low-noise technology. It is guarantee for operators’ safe and health
Technical data
|
– Technical Data |
– X5-700 – (with drive) |
– X5-850 – (with drive) |
|
– Recovery/ Solution Tank Capacity |
– 105L/85L |
– 105L /85L |
|
– Drive System |
– 24VDC 450W |
– 24VDC 450W |
|
– Productivity rate |
– 286m2 /h |
– 346m2 /h |
|
– Cleaning path width |
– 700mm |
– 850mm |
|
– Brush pressure |
– ≥ 54kg |
– ≥ 54kg |
|
– Squeegee width |
– 1051mm |
– 1151mm |
|
– Brush motor |
– 2×0.55kw 220rpm 24VDC |
– 2×0.6kw 220rpm 24VDC |
|
– Vacuum motor |
– 0.64kw 24VDC |
– 0.64kw 24VDC |
|
– Batteries |
– 4×6v 225Ah/20h rate |
– 4×6v 225Ah/20h rate |
|
– Run Time Per Charge |
– 4.5-5 hours |
– 4.5-5 hours |
|
– Voltage DC |
– 24V DC |
– 24V DC |
|
– Noise level |
– 67dba |
– 67dba |
|
– Grade level, Max |
– Cleaning mode 5% ( 3° ) – Moving mode 8% ( 5 °) |
– Cleaning mode 5% ( 3° ) – Moving mode 8% ( 5° ) |
|
– Weight |
– 145kg |
– 145kg |
|
– Volume(L x W x H) |
– 1408×750×1120mm |
– 1408×890×1120mm |

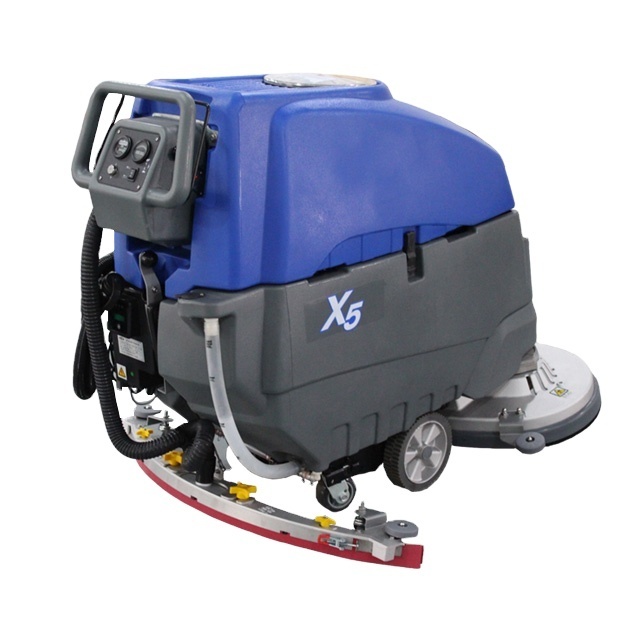

Product pictures
