Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NVVV
-
Model Number:
-
MDR-20-5
-
Output Frequency:
-
47-63Hz
-
Output Current:
-
4A
-
Product Name:
-
switch power supply
-
Application:
-
LED, CCTV and so on
-
Quality:
-
100%Factory
-
Protections:
-
Short Circuit Overload Overvolt Overtemp
-
Efficiency:
-
83%
-
Certification:
-
CE ISO9001 CCC
-
Dimension:
-
22.5*90*100mm
-
MOQ:
-
1pcs
Quick Details
-
Output Power:
-
1 - 50W
-
Input Voltage:
-
85-264VAC
-
Output Voltage:
-
5V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NVVV
-
Model Number:
-
MDR-20-5
-
Output Frequency:
-
47-63Hz
-
Output Current:
-
4A
-
Product Name:
-
switch power supply
-
Application:
-
LED, CCTV and so on
-
Quality:
-
100%Factory
-
Protections:
-
Short Circuit Overload Overvolt Overtemp
-
Efficiency:
-
83%
-
Certification:
-
CE ISO9001 CCC
-
Dimension:
-
22.5*90*100mm
-
MOQ:
-
1pcs
Product Description
Specification
|

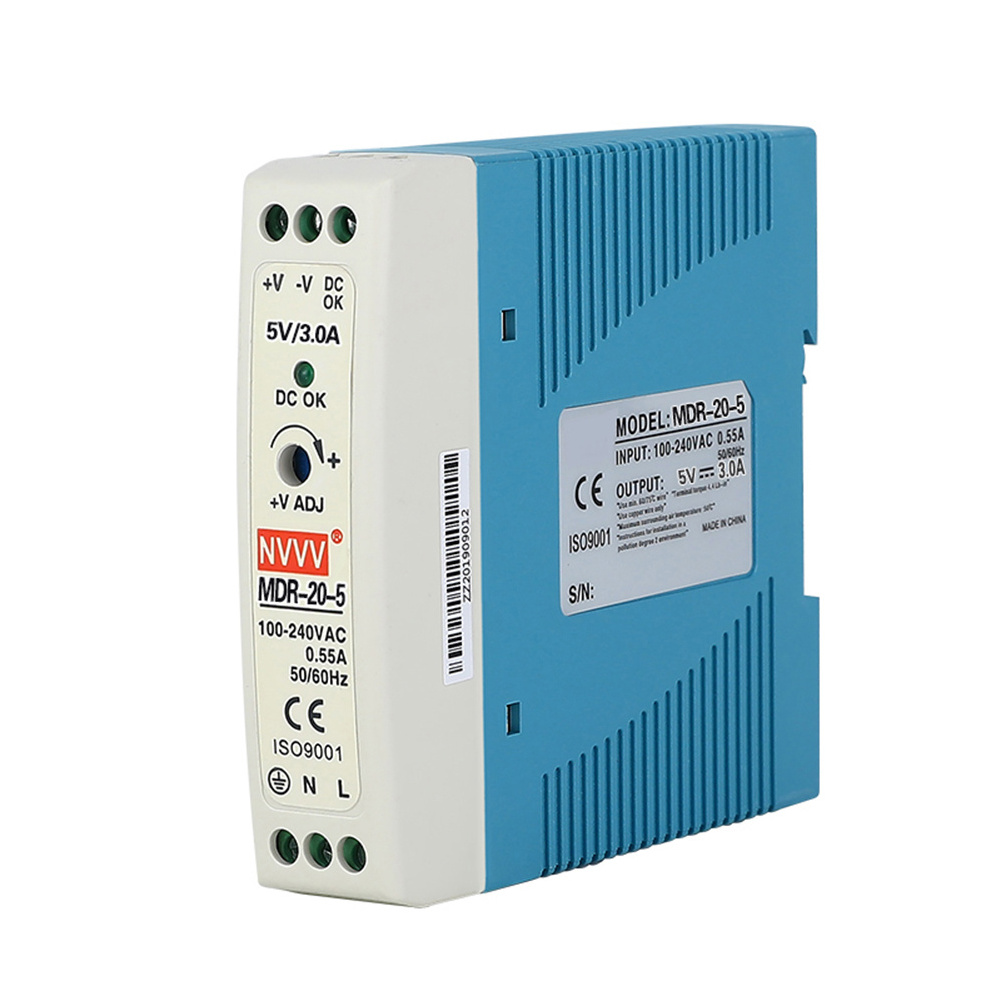

MDR-20W DIN Rail Switch Power Supply
|
|
|
|
|
|
|
||||||
|
Model
|
|
Technical index
|
|
|
|
|
||||||
|
Output
|
DC Voltage
|
5V
|
12V
|
|
24V
|
|
||||||
|
|
Rated Current
|
3A
|
1.67A
|
|
1A
|
|
||||||
|
|
Rated Power
|
15W
|
20W
|
|
24W
|
|
||||||
|
|
Ripple and noise ①
|
＜80mV
|
＜120mV
|
|
＜150mV
|
|
||||||
|
|
Voltage Precision
|
±1%
|
|
|
|
|
||||||
|
|
Output Voltage regulation Range
|
±10%
|
|
|
|
|
||||||
|
|
Load adjustment rate
|
±1%
|
|
|
|
|
||||||
|
|
Linear adjustment rate
|
±1%
|
|
|
|
|
||||||
|
Input
|
Voltage Range
|
85-264VAC 47Hz～63Hz (120VDC～370VDC)
|
|
|
|
|
||||||
|
|
Efficiency(typical)②
|
＞77%
|
＞81%
|
|
＞84%
|
|
||||||
|
|
Working Current
|
＜0.55A 110VAC ＜0.35A 220VAC
|
|
|
|
|
||||||
|
|
Shock Current
|
110VAC 35A， 220VAC 70A
|
|
|
|
|
||||||
|
|
Start,Rise,Hold time
|
100ms、30ms、21ms ：110VAC/100ms、30ms、100ms ：220VAC
|
|
|
|
|
||||||
|
Productions
|
Short circuit protction
|
105%-150% type:protection mode: automatic recovery after belching mode abnormal conditions are removed
|
|
|
|
|
||||||
|
|
Short circuit production
|
VO when the abnormal condition of output is released,it will recover automatically
|
|
|
|
|
||||||
|
Eveironmental Science
|
Working temp.and humidity
|
-10℃～+50℃；20%～90RH
|
|
|
|
|
||||||
|
|
Working temp.and humidity
|
-20℃～+85℃；10%～95RH
|
|
|
|
|
||||||
|
Security
|
Pressure Resistance
|
O/P-I/P,I/P-O/P:3KVAC
|
|
|
|
|
||||||
|
|
Isolation Resistance
|
I/P-O/P， O/P-Shell,O/P-Shell ：500VDC/100MΩ
|
|
|
|
|
||||||
|
Others
|
Size
|
22.5*90*100mm
|
|
|
|
|
||||||
|
|
Net/Gross Weight
|
170/185g
|
|
|
|
|
||||||
