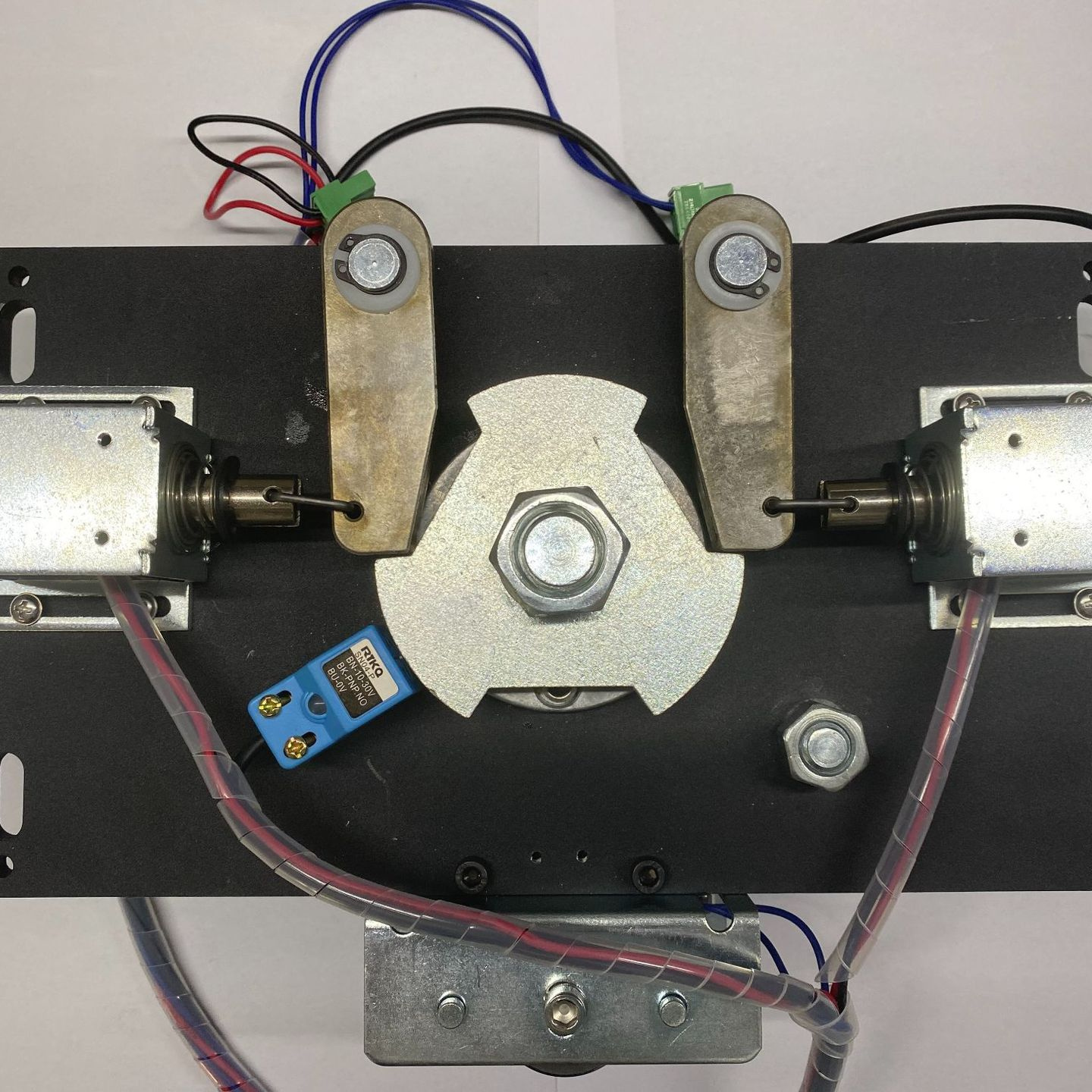

Semi-automatic tripod turnstile gate controller magnet mechanism and accessories

Semi-automatic tripod turnstile gate controller magnet mechanism and accessories

FOB Reference Price: Get Latest Price

≥2 Pieces

US $7

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: SUS 304 Stainless Steel

Type:: semi-automatic

Power supply:: 220/110 V 50/60 HZ

Size:: 430*430*980mm

Passing Speed:: 35 Person/min

Direction:: Bi-direction Adjustable

Signal input:: dry contact

Passage Width:: 650mm

Interface:: USB/RS485/RJ45/WIegand

Warranty:: 2 years

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Yuyuan

Model Number:: YY-T1

Material:: SUS 304 Stainless Steel

Type:: semi-automatic

Power supply:: 220/110 V 50/60 HZ

Size:: 430*430*980mm

Passing Speed:: 35 Person/min

Direction:: Bi-direction Adjustable

Signal input:: dry contact

Passage Width:: 650mm

Interface:: USB/RS485/RJ45/WIegand

Warranty:: 2 years

Product Overview

Dual Mechanism Vertical Tripod Turnstile Gate YY-T302

YY-T302 is SUS304 stainless steel housing Bi-directional tripod turnstile with dual Mechanism arm drop function LED pictogram for intuitive use High throughput rate Easy and simple installation process.

FEATURES AT A GLANCE

Anti tailgating.

Bi-directional.

Intergate with multi-access control reader.

Drop arm in emergency mode.

Quickly installed and and easy to maintain.

Dual Mechanism.

Durable and long-lasting.

Dual Mechanism Tripod turnstile gate

Dual lanes tripod turnstile gate

Dual motor tripod turnstile gate

PRODUCT SPECIFICATIONS

No	Item	Data
1	Power supply	AC110V/220V, 50/60Hz
2	Power Consumption	Running: 40W Standby: 10W
3	Working Temperature	28°C to 60°C
4	Speed of Throughput	RFID: Maximum 25/minute Fingerprint: Maximum 20/minute
5	Lane Width (mm)	650mm
6	Arm Length	510mm
7	Dimension (LWH)	430430980mm
8	LED Indicator	YES
9	Control System	Input controlled by dry contact
10	Cabinet Material	SUS304 (optional SUS316)
11	Lid Material	SUS304 (optional SUS316)
12	Barrier Material	SUS304 (optional SUS316)
13	Barrier Movement	Rotated
14	Emergency Mode	Support ( power off drop arm )
15	Options / Accessories	Cardbox, Remote control, QR
16	Net Weight (kg)	35kg
17	Max. torque	500N.m
