China Manufacturer Waste Plastic/Rubber/Tyre To Fuel Oil Pyrolysis Plant

Product Description

China Manufacturer Waste Plastic/Rubber/Tyre To Fuel Oil Pyrolysis Plant

The simplest treatment for plastic and rubber waste is simple burning and to bury under earth. Burying under earth requires a lot of valuable land resources. Since the development of waste rubber and waste plastics refining fuel oil equipment, it has also become a subject of joint research and attention at all levels of government. It not only saves valuable land resources for mankind, but also creates new problems for new energy. The equipment is invested in 450 square meters of production site, the plant is simple, the source of raw materials is rich, the cost is low, the profit margin is large, and the recovered fuel oil is widely used.

Working Process of  Waste Tyre Pyrolysis Plant

First, two or three workers put waste tires into the main reactor from the feed door, close the feed door, and seal. Then start firing and heat the main furnace with fuel coal or wood in the heating chamber. When the temperature reaches 150 °C, some gas will be precipitated (most of the gas at this time is exhaust gas). When the temperature reaches 220 °C, the oil will precipitate and enter the gas separation package. The residue (containing part of the slag) will sink to the slag. Oil tanks, while light oil automatically enters the water cooling system, cooling and liquefaction. Enter the light tank. In this way, heavy oil and light oil can be obtained.

After condensation, some of the gas that cannot be condensed is called exhaust gas, and the exhaust gas passes through a safe setting--water seal. (The function of the water seal is to prevent the open flame from returning from the combustion chamber and exploding with the exhaust gas), and return to the heating chamber for fuel heating. Hearth. Therefore, at the beginning of the operation of the equipment, the fuel is coal or wood. When the temperature rises to 220 °C - 270 °C, the exhaust gas can be used as fuel. In general, the fuel required per ton of used tires is 60kg.

Dust treatment: The smoke comes out from the middle of the main furnace and the outer casing, enters the flue condensation system, and then enters the desulfurization and dedusting tower. There are three processes in the desulfurization and dedusting tower: water, magnetic ring, stainless steel small nozzle (atomization, filtering soot), soot Filtered, purified, and discharged more than 90% of the gas is water vapor, no pollution.

Suitable Raw Material

Solid: various products such as used tires, oil sludge, waste plastics, and waste rubber.
Liquid: waste oil. For example: waste diesel oil, waste engine oil and other waste washing oil.
Semi-solid: semi-flowing waste oil such as waste residue and bottom oil residue.

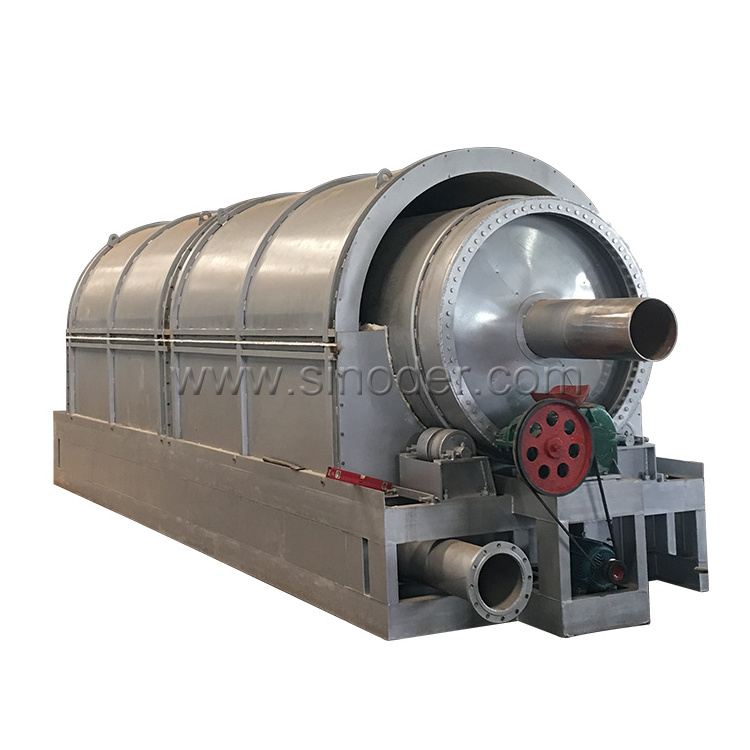

Main Machines

Main Features of Tyre Pyrolysis System

1. Fully automatic continuous horizontal rotation.
2. The degree of mechanization is high.
3.adapt to a wide range of raw materials
4.desulfurization powerful atomization dust removal + vortex dust removal, dust treatment in line with advanced national environmental protection requirements.
5. After a thermal cracking secondary catalysis, and then filtering, the quality of the oil is improved by one grade and can be directly sold as a commodity.
6. high temperature spray evaporation, low temperature immersion, the largest advantage of less floor space, easy to clean, good cooling effect, under normal circumstances do not need to use water cooling tower.
