Quick Details
-
Warranty:
-
12 Months
-
Product Name:
-
Automatic car park entry systems with barcode ticket dispenser
-
Working temperature:
-
-20℃ to +50℃
-
Humidity:
-
10%~95%
-
Ticket stype:
-
Barcode
-
Bar code ticket dispenser capacity:
-
2000-2500 pieces
-
Card reader type:
-
ID card
-
Reading range:
-
0-8cm
-
LCD Display:
-
7 inch TFT
-
Dimension (mm):
-
410*320*1470
-
Gross weight: (KG):
-
55
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Coma
-
Model Number:
-
M2
-
Warranty:
-
12 Months
-
Product Name:
-
Automatic car park entry systems with barcode ticket dispenser
-
Working temperature:
-
-20℃ to +50℃
-
Humidity:
-
10%~95%
-
Ticket stype:
-
Barcode
-
Bar code ticket dispenser capacity:
-
2000-2500 pieces
-
Card reader type:
-
ID card
-
Reading range:
-
0-8cm
-
LCD Display:
-
7 inch TFT
-
Dimension (mm):
-
410*320*1470
-
Gross weight: (KG):
-
55

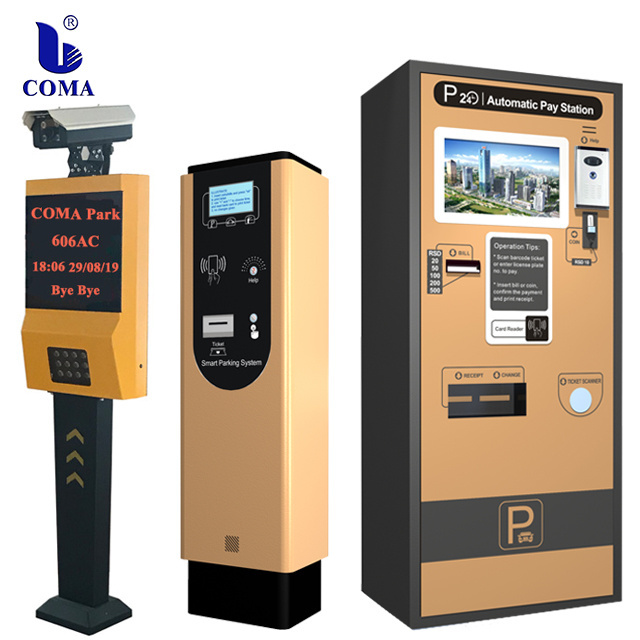

Automatic car park entry systems with barcode ticket dispenser
Guangzhou Coma Ltd.offers a reliable range of automated access control systems tailored to car park application. The integrated solutions include ticket systems,swipe cards,Automatic Number Plate Recognition(ANPR) or bluetooth card parking system.A well designed car parking system can be a successful revenue generator.
Entry bar code ticket dispenser car parking access control system, is applied to parking lot with a lot of visitors. The cost of bar code ticket is cheap, and can dispense up to 1000pcs of bar code ticket for one refill.
The visitor presses the button to get a bar code ticket, then before leaving, visitor passes the bar code ticket to the toll collector for scanning. After scanning, the parking fee is shown on the computer. After payment, the visitor is allowed to leave.
Parameter
|
Specification CMK802 |
|
|
Power supply |
AC 110/ 220V±10%, 5 0/60 HZ, Max.1.5A |
|
Environmental temperature: |
-20℃- +50℃ |
|
Humidity: |
10%~ 95% |
|
Ticket type: |
Barcode |
|
Ticket size: |
80mm( W ) |
|
Capacity: |
2 000-2 500 pcs. (diameter150mm) per roll |
|
Ticket Cutter: |
high strength, free maintenance |
|
Ticket dispensing time: |
<1s |
|
Card reader Interface: |
Rs 232 interface |
|
Card Reader type: |
ID/IC card |
|
Card reading and verifying time |
<1s |
|
Reading range: |
0-8 cm |
|
LCD Display:
|
7 inch TFT resolution 800 × 480 Brightness: 400 cd /m² Contrast: 500:1 |
|
Intelligent Control Unit:
|
J1900 4-cores, 2.0G |
|
Rs232× 5 no.s |
|
|
Multi Relay output |
|
|
HDMI × 1 |
|
|
USB × 4 |
|
|
Audio output × 1 |
|
|
Dimension (mm) |
41 0*3 2 0*14 7 0 |
|
Net weight: (KG) |
45 |
|
Gross weight: (KG) |
55 |
Working process
Entrance
1.LED display gives word welcome and remind driver to enter
2.Voice prompt reminds driver to take a ticket,
3.Driver presses the button to get a bar code ticket in the entrance machine.
4.After the driver takes the ticket, the barrier gate will automatically open, then the driver can drive his car into the parking lot.
5.When the vehicle detector cannot detect a car's coming, the control cabinet and barrier will never start working, in this case, even a man press the green button, the entrance cabinet will never dispense a ticket.
Exit
1.LED display gives word bye bye and reminds driver to leave
2.The ticket should be passed to toll collector if there is charge at the exit.
3.After payment, the barrier gate will automatically open, then the driver can drive his car out of the parking lot.
4.When the vehicle detector cannot detect a car's coming, the control cabinet will never start working, the barrier will never open.
Picture illustrating the process 1) exit payment method 2)center payment method
The toll station software and background software
Toll station softwareP.S. The software is English version, if customer would like to change to other language, please consult us.
Please tell below information for working out a solution
1 How many extrance and exit for your parking lot?
2 Do you prefer RFID or ticket parking system?
3 Do you have visitors and long term parker separately?
4 Do you need charging for the parking, if yes, what is the charging standard?
5 Do you have special requirement for the system?
1. How about the warranty and after-sales service?
We provide 1 years warranty and life long paid services.
2 What about the technology support?
We have hardware/software engineer 24/7 to provide the help you need.
3. What about the delivery time?
20-30 working days upon receipt of your payment
4.Do you support OEM?
we support OEM, and can customize machine and software according to your requirement
