Quick Details
-
Function:
-
CC-CV
-
Model Number:
-

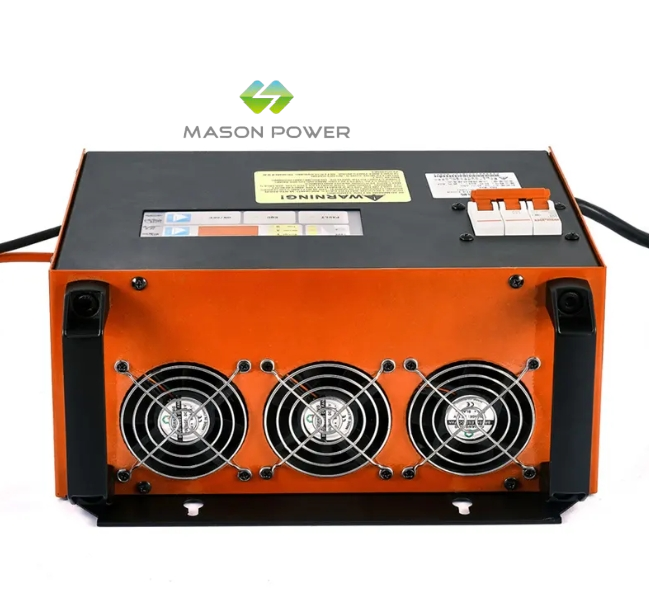

MAS-Charger-6600W
-
Input voltage and current:
-
220Vac, 380Vac
-
output voltage and current:
-
96V/60A
-
Maximum Output Power:
-
6600W
-
Place of Origin:
-
guangdong
-
Max efficiency:
-
> 93%
-
Noise:
-
<40dB
-
Size:
-
325*148*290mm
Quick Details
-
Type:
-
Electric
-
Port:
-
DC
-
Material:
-
Aluminium
-
Function:
-
CC-CV
-
Model Number:
-
MAS-Charger-6600W
-
Input voltage and current:
-
220Vac, 380Vac
-
output voltage and current:
-
96V/60A
-
Maximum Output Power:
-
6600W
-
Place of Origin:
-
guangdong
-
Max efficiency:
-
> 93%
-
Noise:
-
<40dB
-
Size:
-
325*148*290mm
Product Description
|
AC Input Operating Voltage Range
|
185V-265V, 380V
|
|
AC Input Frequency Range
|
40~70Hz
|
|
Max Efficiency
|
≥93%
|
|
Protection Level
|
IPx4
|
|
Operating Temperature
|
-30~+65℃
|
|
Storage Temperature
|
-40~+95℃
|
|
Noise
|
≤40dB
|
|
Overall Size
|
325*148*290mm
|
|
Net Weight
|
9.6kg
|
|
Shell Material
|
RED IRON SHELL
|
AC Cable and Connector
You can customize the AC cable.There are more options than those connectors in the picture.
For example:
Standard Length of AC cable: 1m/1.2m/1.5m/2.8m...Wire
For example:
Standard Length of AC cable: 1m/1.2m/1.5m/2.8m...Wire
size:3*1mm²/3*1.31mm²/3*1.5mm²....
DC Cable and Connectors
Same as AC cable, you can customize the DC cable.There are more options than those connectors in the picture.
For example:
Standard Length of DC cable: 1m/1.5m/2m/2.5m...Wire size: 2*2.5mm² / 2*3.5mm²/2*4mm²...Common DC connectors (We can provide more connectors than those below):
For example:
Standard Length of DC cable: 1m/1.5m/2m/2.5m...Wire size: 2*2.5mm² / 2*3.5mm²/2*4mm²...Common DC connectors (We can provide more connectors than those below):
