Quick Details
-
Brand Name:
-
MACAW
-
Weight (KG):
-
3260 kg
-
Product Name:
-
Single Girder Overhead Crane
-
Model:
-
LD5t x 10.5m(span)-H6m
-
Lifting speed:
-
5/0.8 m/min
-
Hoisting motor:
-
6.1/1 kw
-
Travel speed:
-
5-20 m/min
-
Travel motor:
-
0.64 kw
-
Crane traveling speed:
-
8-32 m/min
-
Work Duty:
-
A5
-
Power Source:
-
380V 50HZ 3P
-
Control method:
-
Pendant Control + Wireless Remote Control
Quick Details
-
Max. Lifting Height:
-
6m
-
Span:
-
10.5m
-
Place of Origin:
-
JIANGSU
-
Brand Name:
-
MACAW
-
Weight (KG):
-
3260 kg
-
Product Name:
-
Single Girder Overhead Crane
-
Model:
-
LD5t x 10.5m(span)-H6m
-
Lifting speed:
-
5/0.8 m/min
-
Hoisting motor:
-
6.1/1 kw
-
Travel speed:
-
5-20 m/min
-
Travel motor:
-
0.64 kw
-
Crane traveling speed:
-
8-32 m/min
-
Work Duty:
-
A5
-
Power Source:
-
380V 50HZ 3P
-
Control method:
-
Pendant Control + Wireless Remote Control
Products Description

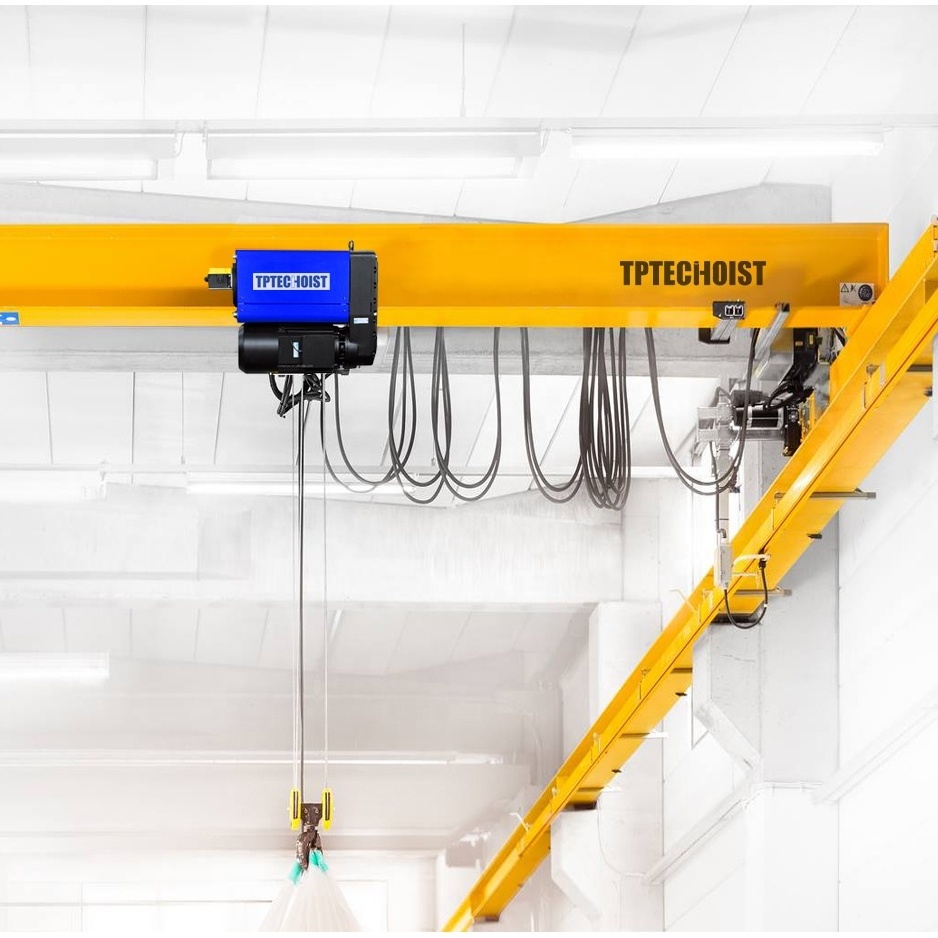

European Standard 5 ton Electric Single Girder Overhead Crane
* Advanced design, collection the advantages of industry's top brands.Safe & reliable, precise positioning, and efficient operations.
* Wideley used in varios application.
* High efficiency and make the most use of space.
* Core components imported,frequency control system as standard.
* Non-standard products can be designed.
Chain Hoist Bridge Crane
Rope Hoist Bridge Crane
Recommend Products
Technical Paremeter
Please contact me for customized parameters
|
Capacity
|
|
t
|
5
|
10
|
||
|
Span
|
|
m
|
10.5~28.5
|
|
||
|
Lifting Height
|
|
m
|
6~12
|
|
||
|
Speed
|
Lifting
|
m/min
|
6.1/1
|
9.5/1.5
|
||
|
|
Cross Travel
|
m/min
|
5~20
|
|
||
|
|
Long Travel
|
m/min
|
8~32
|
|
||
|
Electric Hoist
|
|
Type
|
Chain Hoist
|
Rope Hoist
|
||
|
Working Duty
|
|
|
A5
|
|
||
|
Power Supply
|
|
AC
|
380V/50HZ/3P
|
|
||
Details Images
Crane Girder
Crane girders made of computer-optimised box sections or rolled sections.
End Carriage c/w driven motor
End carriages of torsionally rigid,welded box section design.
Wire rope hoists meet all the requirements of state-of -the-art hoist units and give you the certainty of a secure long-term investment.
Power Supply
Power supply to the crab by means of highly flexible flat cable with protective earth conductor
Control Pendant
Control pendant suspended for separate travel on the crane girder,with display for installation monitoring
Packaging & Delivery
Electric overhead crane girder part
Electric hoist part
