Quick Details
-
Dimension(L*W*H):
-
1510x1262x1605mm
-
Weight (T):
-
0.15 T
-
Power (kW):
-
25
-
Applicable Industries:
-
Laboratory
-
Contact Us:
-
business @ nyxinyu.cn
-
After-sales Service Provided:
-
Engineers available online, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Application:
-
large capacity muffle furnace for sintering
-
type:
-
high temperature industrial muffle furnace
-
Max. temperature:
-
1200.C
-
Working temperature:
-
1100.C continious
-
heating element:
-
Resistance Wire
-
Thermocouple:
-
K type
-
temperature accuracy:
-
+/- 1.C
-
usage:
-
electric furnace for ceramic sintering
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Xinkyo
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1510x1262x1605mm
-
Weight (T):
-
0.15 T
-
Power (kW):
-
25
-
Applicable Industries:
-
Laboratory
-
Contact Us:
-
business @ nyxinyu.cn
-
After-sales Service Provided:
-
Engineers available online, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Application:
-
large capacity muffle furnace for sintering
-
type:
-
high temperature industrial muffle furnace
-
Max. temperature:
-
1200.C
-
Working temperature:
-
1100.C continious
-
heating element:
-
Resistance Wire
-
Thermocouple:
-
K type
-
temperature accuracy:
-
+/- 1.C
-
usage:
-
electric furnace for ceramic sintering
-
Certification:
-
CE

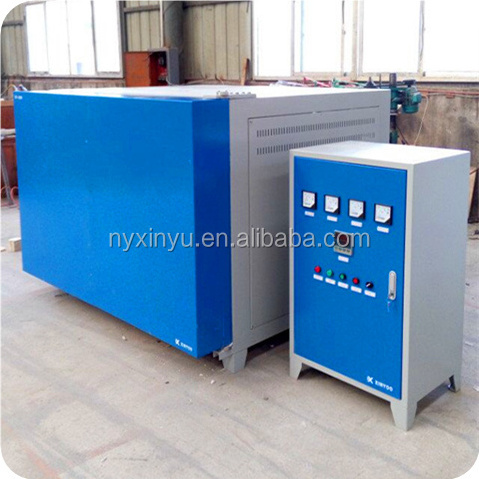

1200 degree heat treatment ceramic oven for sintering 500x500x500mm 125L capacity
Many experiments and procedures taken in the lab requiring extreme heat environment from
400-1900.C. For this purpose, the high temperature muffle furnace steps in as the necessary
part of laboratory equipment. Xinyu furnace are providing the muffle furnace at a affordable cost
including box muffle furnace, crucible furnace, dental furnace, atmosphere furnace, vertical furnace, tube furnace and etc.
Industrial Muffle furnace Application:
Melting Muffle mainly used in chemical analysis, physical decomposition and synthesis, super hard
materials (such as ceramic), Rare and precious metal smelting and purification, metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific
research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and
technology supervision agencies, and other units laboratory, laboratory are the use of such equipmen.
1. Gravimetric analysis ;
2. Sintering ;
3. Quantitative analysis ;
4. Heat treating ;
5. Glass preparation ;
1200 degree Industrial ceramic oven specification:
Chamber size: 5 00x50 0x50 0mm,125 L. More bigger can be customized.
Rated voltage: AC 380V 50/60Hz.;
Power: 25 kW;
Max. Temperature :1200 . C (< 1 hour) ;
Continuous Working Temperature: 0- 1150 . C;
Max. Heating Rate:0-30 . C /min;
Temperature Accuracy :+/- 1 . C ;
Heating Elements : electric resistance belt.
Thermocouple : K type .
RS232/485 Communications Port optional (need extra cost).
Temperature Control:
PID automatic control and auto-tune function.
30-51 programmable segments for precise control.
Built-in over temperature alarm and protection allows for operation without attendant.
+/- 1 ºC temperature accuracy.
Temperature’s curve for your reference as below.( for example: 6 segments)
Warranty: One year limited warranty with lifetime support , excluding heating element
and ceramic tube damaged by user.
A ttention : Any damages caused by the use of corrosive and acidic gases, and any damage
from wrong operate and use are not under the coverage of One Year Limited Warranty.
