Quick Details
-
Filling Accuracy:
-
±1%
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LIANYUAN
-
Dimension(L*W*H):
-
1180*1890*2750(mm)
-
Weight:
-
850KGS
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts, Field maintenance and repair service
-
Certification:
-
CE Certification
Quick Details
-
Machinery Capacity:
-
20-60bags/min
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Powder
-
Filling Accuracy:
-
±1%
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LIANYUAN
-
Dimension(L*W*H):
-
1180*1890*2750(mm)
-
Weight:
-
850KGS
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts, Field maintenance and repair service
-
Certification:
-
CE Certification
Product Description
Suitable material:
It is applicable for packing foodstuff, medicine and chemical industry powder such as corn powder, flavouring powder, additive powder, coffee, and other powder material more than 200mesh.
1.Packing material: Pe pet/ al foil/ paper/ penylon/ pe and other heat-sealing compound material.
2.Packing material: 0.04≤film thickness≤0.08mm, inner diameter of film roll need 75mm at least, outer diameter of film roll need 320mm.

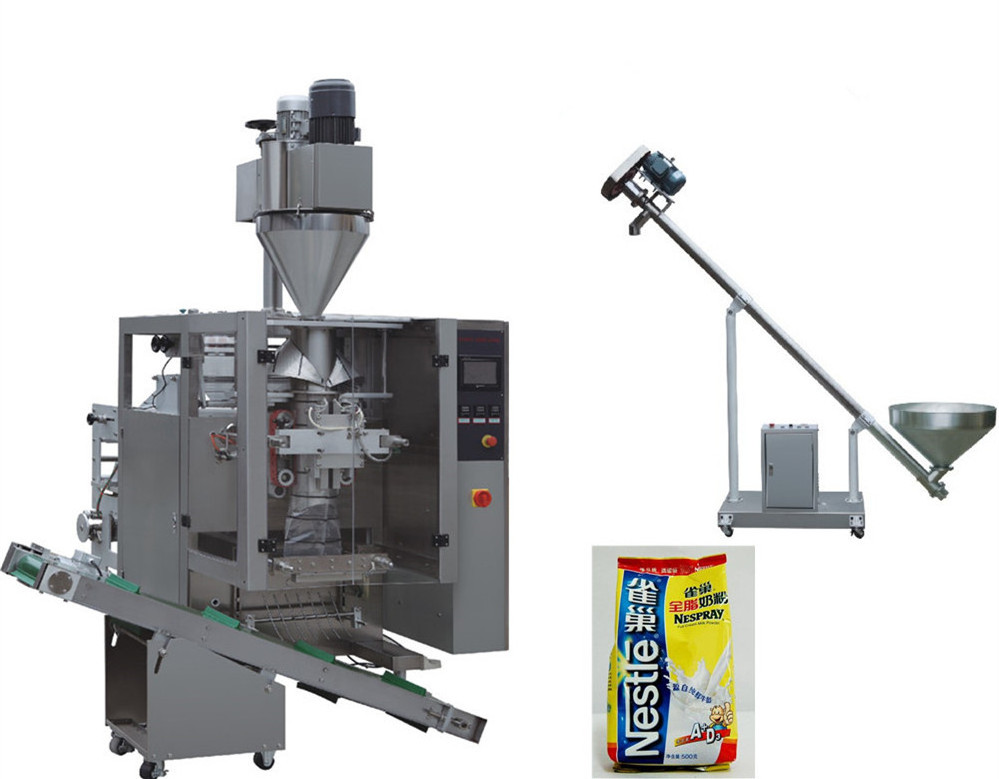

Detailed Images
Features:
1.High capacity pillow sealing style.
2.PLC control. Bag length, packing volume and speed etc data adjustment can be displayed on the screen. The user can directly operate it on it.
2.PLC control. Bag length, packing volume and speed etc data adjustment can be displayed on the screen. The user can directly operate it on it.
Features:
3.Reliable double servo driving system makes bag-making length and packing capacity more accurate, makes operation more steady and less noisy.
Features:
4.It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batch number.
Features:
5.The body and the parts touching the material are made of stainless steel.
|
Model
|
SJIII-F500
|
|
Bag-making length
|
100-550mm
|
|
Bag-making width
|
120-290mm
|
|
Packing film width
|
260-600mm
|
|
Packing capacity
|
100-500ML
|
|
Packing speed
|
20-60bags/min
|
|
Power
|
4KW
|
|
Air power
|
0.65Mpa
|
|
Air consumption
|
500L/min
|
|
Dimension
|
1180*1890*2750mm
|
|
Weight
|
850kg
|
