Quick Details
-
Brand Name:
-
DAWSON
-
Year:
-
2021
-
Voltage:
-
220V,380V
-
Dimension(L*W*H):
-
4.4*3.4*3.6
-
Hollow part volume:
-
10-30L
-
Screw L/D Ratio:
-
24
-
Screw diameter (mm):
-
80 mm
-
Screw Heating Power(kW):
-
9 kW
-
Extruder Motor Power(kW):
-
37 kW
-
Mold Platen Size(Width)(mm):
-
400 mm
-
Mold Platen Size(Height)(mm):
-
540 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
1 m³/min
-
Die Head Heating Power(kW):
-
8 kW
-
Accumulator Capacity(L):
-
0 L
-
Power (kW):
-
101.2
-
Weight (T):
-
8.5
-
Model NO.:
-
ABLB80-25L
-
Station:
-
Single Station or Double Station
-
Max. Product Volume:
-
25L
-
Clamping System:
-
Toggle Type Clamping System
-
Suitable Material:
-
HDPE,PP,PVC,PS,PETG,LDPE
-
Made in:
-
China
-
Oil Pump Motor Power:
-
11kw
-
Head Heating Power:
-
8kw
-
Trademark:
-
DAWSON
-
Model:
-
ABLB90
Quick Details
-
Clamping Force (kN):
-
100
-
Output (kg/h):
-
100 kg/h
-
Place of Origin:
-
China
-
Brand Name:
-
DAWSON
-
Year:
-
2021
-
Voltage:
-
220V,380V
-
Dimension(L*W*H):
-
4.4*3.4*3.6
-
Hollow part volume:
-
10-30L
-
Screw L/D Ratio:
-
24
-
Screw diameter (mm):
-
80 mm
-
Screw Heating Power(kW):
-
9 kW
-
Extruder Motor Power(kW):
-
37 kW
-
Mold Platen Size(Width)(mm):
-
400 mm
-
Mold Platen Size(Height)(mm):
-
540 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
1 m³/min
-
Die Head Heating Power(kW):
-
8 kW
-
Accumulator Capacity(L):
-
0 L
-
Power (kW):
-
101.2
-
Weight (T):
-
8.5
-
Model NO.:
-
ABLB80-25L
-
Station:
-
Single Station or Double Station
-
Max. Product Volume:
-
25L
-
Clamping System:
-
Toggle Type Clamping System
-
Suitable Material:
-
HDPE,PP,PVC,PS,PETG,LDPE
-
Made in:
-
China
-
Oil Pump Motor Power:
-
11kw
-
Head Heating Power:
-
8kw
-
Trademark:
-
DAWSON
-
Model:
-
ABLB90
Products Description
DAWSON MACHINERY & MOULD GROUP

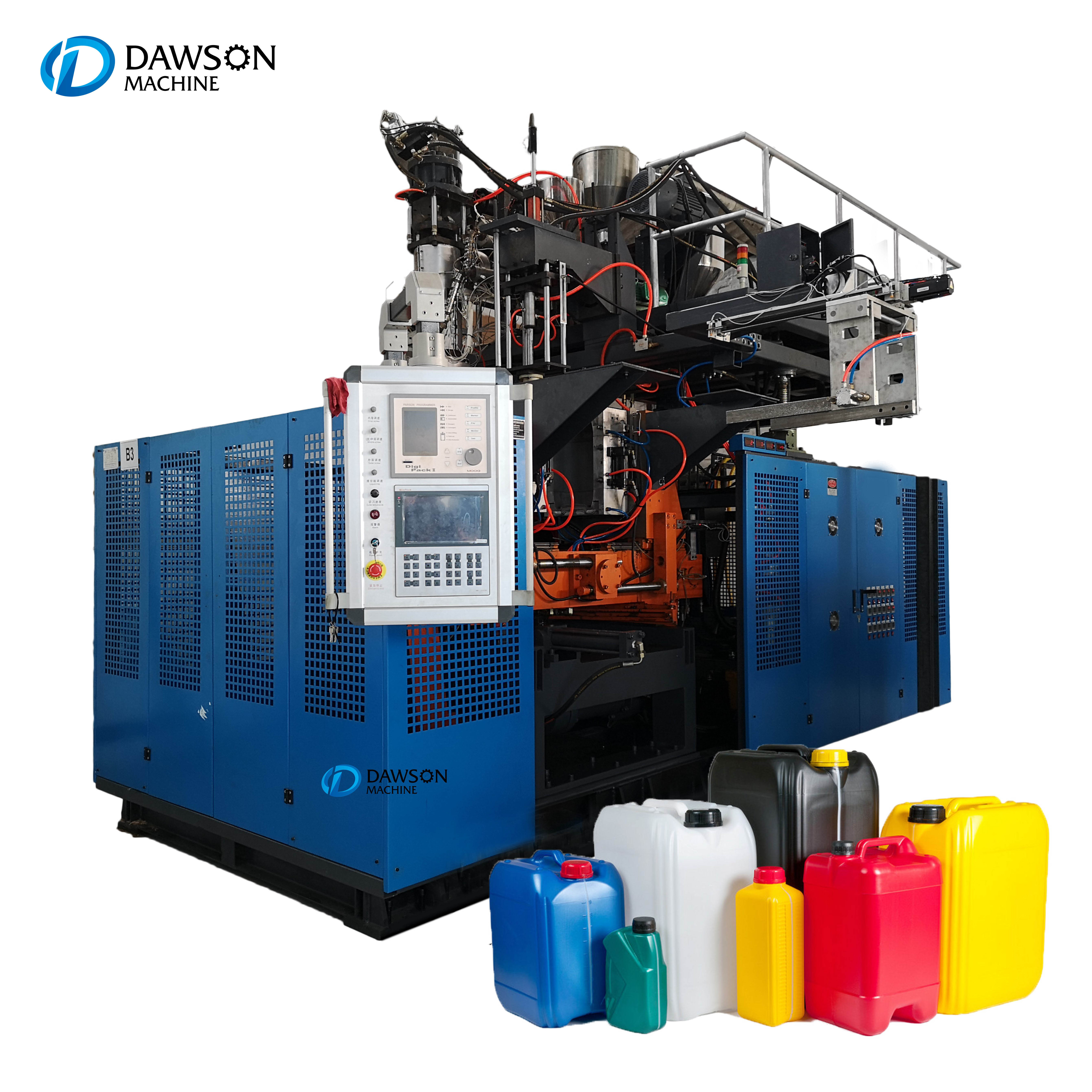

Extrusion Blow Molding Machine ABLB90-30
20L Jerry cam blow moulding machine suitable for making plastic bottle, jars, containers, jerrycans up to 30L,
The whole blow molding machine is equipped with bilingual operation panel and automatic configuration from world famous brands to realize the advantages of simple operation and high automation.
|
Machine Model
|
|
Max. Bottle size
|
Production forecast
|
|
|
ABLB90-30
|
Single Station
Single
Head
|
30L
|
48~50 BPH
|
|
Technical Parameters
|
Name
|
Units
|
ABLB90-30L
|
|
Max.product volume
|
L
|
30L
|
|
Screw diameter
|
MM
|
90
|
|
Screw drive power
|
KW
|
10
|
|
Output of HDPE
|
KG/H
|
130
|
|
Oil pump drive power
|
KW
|
11
|
|
Clamping force
|
KN
|
270
|
|
Max.size of mold
|
MM
|
680× 660
|
|
Template size
|
MM
|
290×320
|
|
Mold stroke
|
MM
|
450-950
|
|
Size of machine
|
L×W×H
|
4.4×3.4×3.6
|
|
Weight of machine
|
TON
|
11.3
|
Photos Reference
Clamping System
Workshop
Our professional blow molding machine workshop...
High Quality Blow Molding mould
In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.
- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU,
HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...
