Quick Details
-
Feed Mechanism:
-
Needle Feed
-
Place of Origin:
-
China
-
Brand Name:
-
JOCONN
-
Power:
-
2.2kw
-
Overall Dimensions:
-
1100*1200*1600mm
-
Weight (KG):
-
180 KG
-
Product name:
-
Cushion Dot Pattern Sewing Making Machine
-
Keywords1:
-
pillow sewing machine
-
Keywords2:
-
cushion sewing machine
-
Keywords3:
-
pillow stitching machine
-
other name:
-
pillow/cushion tacking sewing machine
-
driven power:
-
electric and pneumatic
-
Max. pillow /cushion thickness:
-
15cm
-
sewing speed:
-
200-2700rpm
-
advantage:
-
automatic thread cutting
-
sewing patterns:
-
customized
Quick Details
-
Type:
-
Household Sewing Machine
-
Max. Sewing Thickness:
-
15CM
-
Stitch Length:
-
1.0-12.7
-
Feed Mechanism:
-
Needle Feed
-
Place of Origin:
-
China
-
Brand Name:
-
JOCONN
-
Power:
-
2.2kw
-
Overall Dimensions:
-
1100*1200*1600mm
-
Weight (KG):
-
180 KG
-
Product name:
-
Cushion Dot Pattern Sewing Making Machine
-
Keywords1:
-
pillow sewing machine
-
Keywords2:
-
cushion sewing machine
-
Keywords3:
-
pillow stitching machine
-
other name:
-
pillow/cushion tacking sewing machine
-
driven power:
-
electric and pneumatic
-
Max. pillow /cushion thickness:
-
15cm
-
sewing speed:
-
200-2700rpm
-
advantage:
-
automatic thread cutting
-
sewing patterns:
-
customized

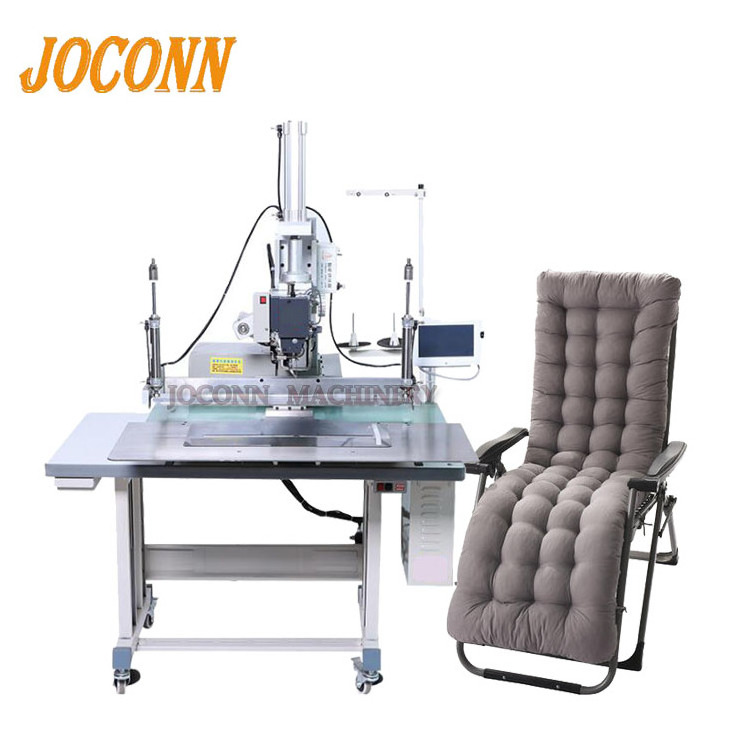

Computer pillow sewing machine
is to stitch high thickness
pillow, cushion, quilt, sleeping bag, even pet animals bed
, etc. pillow sewing machine consists of sewing head, working table, and control panel. The sewing patterns can be
customized
according to customer need. pillow sewing machine is driven by both electric and pneumatic, customer need connet it
with an air compressor
when sewing.Sewing effect is fast and fficient.
Feature
|
1
|
25cm lifing height, suitable for both thin and high thickness products sewing.
|
|
2
|
design of belt swing arm, has longer service life, more stable working performance.
|
|
3
|
different sewing patterns
, a line or round circle, or customized according to customer need
|
|
4
|
accurate positioning, and press pillow or cushion firmly
|
|
5
|
Dedicated Stitch Foot, meticulous workmanship , stable and firm stitching effect
|
|
6
|
Adopting high-quality rotary shuttle, no thread stuck, continuous thread, high sewing efficiency
|
|
7
|
fast and automatic winding, high working efficiency
|
|
Computer Cushion Pillow Sewing Machine
|
|
|
||
|
Model
|
DNBZ-42
|
DNBZ-60
|
||
|
Max.circle diameter
|
0.5-4cm
|
|
||
|
Head lifting height
|
25cm
|
|
||
|
Needle to inner width
|
42cm
|
60cm
|
||
|
Max.Sewing speed
|
2500rpm
|
|
||
|
Packing Weight
|
220KG
|
300KG
|
||
|
Packing Size
|
1220*750*1300mm
|
1220*950*1300mm
|
||
|
Note: need connect an
air compressor
separately, Air consumption:400Kpa
|
|
|
||
DNBZ-42(Regular style)
DNBZ-60(Widened style)
Electronic thread clamp
Ensure precise positioning of thread ends to prevent thread breakage
round hole sewing presser foot
Stable sewing thread marks
Back type small hand wheel
Turning the machine is more convenient
PLC operation screen
Humanized touch screen operation panel with various patterns
cylinder for needle lifting up and down
round circle shape
Customized sewing mold
Molds can
be customized
according to user needs,
single-hole or multi-hole molds
. Put the material into the machine without moving the material. The pattern can be sewn in one go, and molds can be replaced.
