Quick Details
-
Material:
-
304 Stainless steel
-
Finish:
-
Anti-Brass
-
Mortise:
-
ANSI Five latches mortise
-
Accepted Door Thickness:
-
30-65mm
-
Type:
-
M1 S50 Card
-
Unlocking Way:
-
Cards, Mechanical keys
-
Certification:
-
RoHS, CE, Ce,ISO9001
-
HS code:
-
830140000
-
Warranty:
-
2 year, lifetime maintenance
-
Power supply:
-
4*AA Alkaline Battery
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tediton
-
Model Number:
-
E300
-
Material:
-
304 Stainless steel
-
Finish:
-
Anti-Brass
-
Mortise:
-
ANSI Five latches mortise
-
Accepted Door Thickness:
-
30-65mm
-
Type:
-
M1 S50 Card
-
Unlocking Way:
-
Cards, Mechanical keys
-
Certification:
-
RoHS, CE, Ce,ISO9001
-
HS code:
-
830140000
-
Warranty:
-
2 year, lifetime maintenance
-
Power supply:
-
4*AA Alkaline Battery

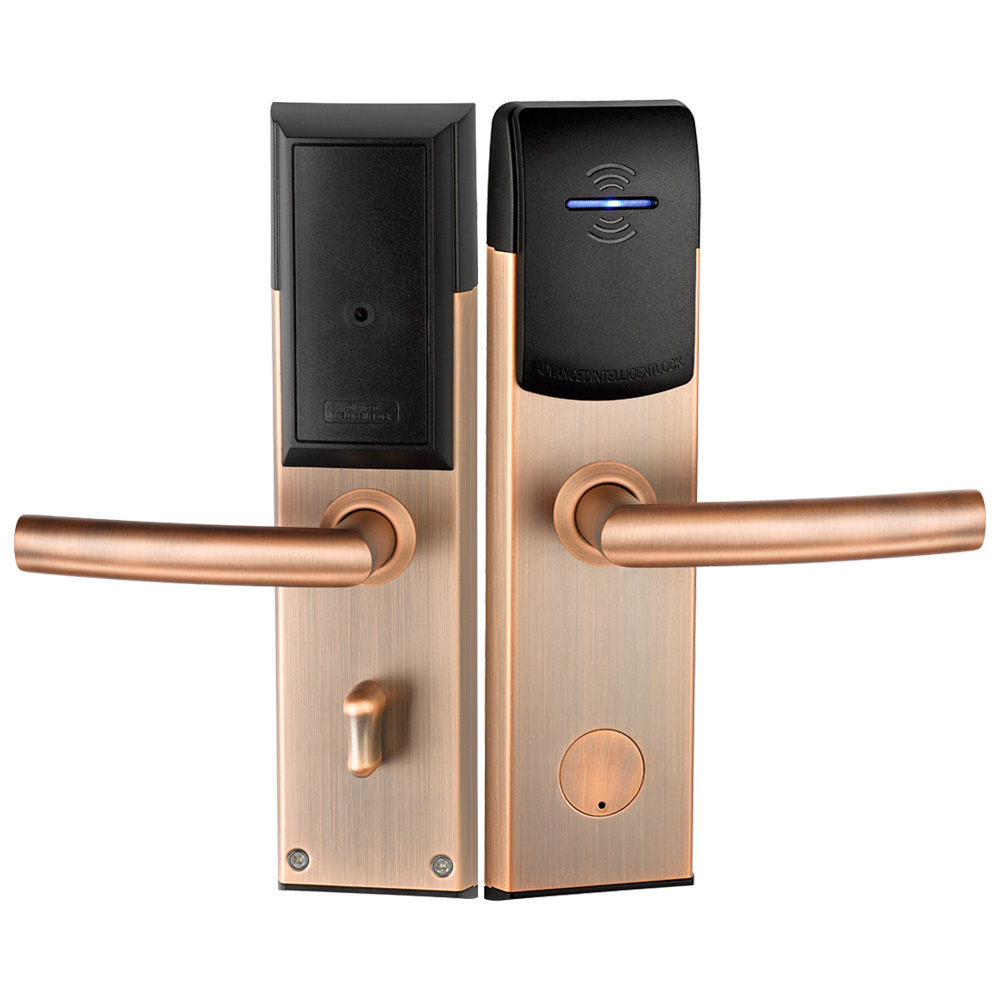

304 Stainless Steel Keyless Electronic Door Lock Hotel Card Key Lock System
RFID Hotel Card Reader Door Lock with key and card
Technical Specification:
|
Model No |
H700 |
|
Certificates |
CE,FCC certificated |
|
Material |
Pure 304# stainless steel |
|
Mortise |
ANSI 70mm backset standard Mortise, |
|
Latch and deadbolt material |
304# die casting stainless steel material |
|
Motor life test |
500,000 times |
|
Keycard type |
M1 card 1K S50 Philip chip, ISO 14443A standard |
|
Power supply |
4*AAA alkaline batteries (DC6V) |
|
Static current |
25uA |
|
Dynamic current |
<150mA |
|
Working Temperature |
-20-45 degree |
|
Battery life in normal open |
150 times |
|
Low batteries alarm |
When battery is lower than 4.8V, there is di-di beep, then you can still open 150 times |
|
Audit Trial |
990 latest records include the mechanical key |
|
Available door thickness |
40-65mm |
|
Color option |
Satin stainless steel/Gold/Black |
|
Suggest Usage |
Wooden door |
PRODUCT DETAILS
1.Pure 304 stainless steel panel and handles, color enjoys 10 years warranty
Import PC material for the reader.
Die casting 304# mortise latch and deadbolt
2. Back up mechanical key to ensure security, brass+ ABS
3. Proximity RF technology, fast and stable
4. Low batteries alarm
5. Free to change to different handles.
4. Dimension and European Mortise
External Reader dimension: L 288mm*W78mm*H17.5mm
About our mortise:
- With standard 70mm backset ANSI mortise.
- Inside part are with blue zinc treatment to reach the environmental protection requirement.
- Mircoswitch inside the mortise is with over 1000,000 times life test.
- Latch and deadbolt are with 304 stainless steel material, durable and reliable.
- Flat spring for the mortise is with imported piano wire with 500,000 times life test.
- Spring part is with special steel and heat treatment with over 1000,000 times test.
- High quality motor with 500,000 time life test, ensure long year use.
- Patent structure design with simple change for left and right direction.
4. Strong Advance Hotel management software, which can interface with most of the PMS system, Fidelio, Opera system.
which bring a big conveniences for hotel owner and projector.
Support operation system: WINDOWS XP/WINDOWS 7/ WINDOWS 8/ WINDOWS10
5. One-stop intergrated Hotel lock system service.
- Comupter memory: 500GB above, hard disk suggest 2G above, USB port required.
- Software: Window system, Windows 7/8/10
- Data base: Window access/ Microsoft SQL Server 2008 above
- Encoder: Read and write card and software registration
- Door Lock: Installed on each room.
- LCD Handset: Configure room No, Adjust time, Audit trial records etc.
- RFID Cards: unlock the door
- Printer: as request from the site.
About Card encoder:
| Working voltage | DC5V |
| Related current | 500MA |
| Working Humidity | 10%-90% |
| Working Temperature | -20degree-55degree |
| reading speed | <1s |
| Detect Type | auto check |
| port | Universal USB port, no need extra driver |
| system | support one card system intergration. |
About LCD HANDSET
Function:
One station solution, no need special room setting card.
Fast and correct time adjustment.
Special system checking for hardware and firmware.
Easy to check card information.
Convenient to check Audit trial records.
Support check-out function.
| Working Voltage | DC3V |
| Static current | <10uA |
| Working current | <100mA |
| Storage humidity | RH5%-95% |
| Working Temperature | -25 degree ~70 degree |
| sizes | 177.6*85*30mm |
About the card:
Adopt Philip chip M1 card 1K S50 Cards, stable with good performances.
Can be customized if order more than 200pcs.
About the package:
| Singel gross weight | 2.8 kg/pc |
| Standard package | Foam packing One lock one box |
| Carton sizes | 485*390*410mm |
| Quantity of package | 6 pcs/ carton |
