Quick Details
-
Weight:
-
2350
-
Working Pressure:
-
17bar
-
Screw machine:
-
from atllas
-
Technical support:
-
from atllas
-
Working pressure:
-
17bar
-
Capacity:
-
16m3/min
-
Motor power:
-
176kW
-
Fuel Tank Capacity:
-
250L
-
Compressor oil capacity:
-
32 L
-
Noise(Sound pressure, 7 meters beyond):
-
83± 3
-
Color:
-
Blue / customizable
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
LIUTECH
-
Dimension(L*W*H):
-
2680*1660*1669mm
-
Weight:
-
2350
-
Working Pressure:
-
17bar
-
Screw machine:
-
from atllas
-
Technical support:
-
from atllas
-
Working pressure:
-
17bar
-
Capacity:
-
16m3/min
-
Motor power:
-
176kW
-
Fuel Tank Capacity:
-
250L
-
Compressor oil capacity:
-
32 L
-
Noise(Sound pressure, 7 meters beyond):
-
83± 3
-
Color:
-
Blue / customizable

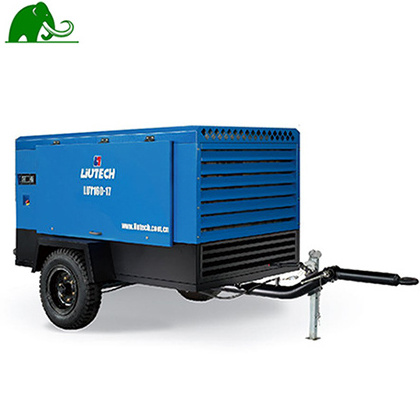

LUY 160-17 Diesel Portable Mobile 13Bar Screw Air compressor For Sand blast
Atlas Copco designed controller Xc2003
- The robust design guarantees longer lifetime and reliability.
Great service access
- The large service diirs give easy access to all consumables,including the filters and separator. We offer long intervals beetween servicing and reduced time to perform the service.
Complying to China III non-road machinery exhaust pollutants standard
- The fuel injection system provides higher fuel pressure, good combustion,more power,but importantly, is cleaner for the environment.
Fuel autonomy
- Thanks to the large fuel tank capacity, the compressors can run for a full work shift without the need for refueling - even under 100% full load conditions.
Low noise level
- All components are houses inside a custom designed noise-dampening canopy.
Down The Hole(DTH) and rotary drilling,offering a comfortable operating zone for drill hole diameters from 4.5 to 15 in (114 to 381 mm).
Common applications include drilling for water wells and foundations for high-rise buildings,along with geotechnical/geothermal applications.
| Model: LUY120-7 | |||||
|
Working pressure (bar) |
Flow (m3/min) |
Noise sound level (at 7m distance, dBA) |
Fuel tank capaticy (L) |
Compressor oil capaticy (L) |
Outlet valves (qty*size) |
| 7 | 12 | 81±3 | 120 | 26 | 1*G3/4 1*G1 1/2 |
| Engine | |||||
| Engine maker | Engine model |
Engine power (kW) |
Norminal engine speed (rpm) |
Unloading engine speed (rpm) |
Engine inspiration |
| Yuchai | YC4A130-H311 | 96 | 2300 | 1400 | torbue charger |
| Dimension&Weight | |||||
| Box mounted | |||||
|
Length (mm) |
Width (mm) |
Height (mm) |
Weight (mm) |
||
| 2350 | 1300 | 1550 | 1470 | ||
| With undercarriage, adjustable two bar horizontally | |||||
|
Length (mm) |
Width (mm) |
Height (mm) |
Weight (kg) |
||
| 3700 | 1790 | 1900 | 1650 | ||
