Quick Details
-
BCD Curve:
-
B
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNCSGK
-
Model Number:
-
DZ47-63
-
Rated Frequency (Hz):
-
50hz/60hz
-
Number of Pole:
-
1
-
Product name:
-
Miniature Circuit Breaker
-
Brand:
-
CNCSGK
-
Pole:
-
1P/2P/3P/4P
-
Material:
-
pc,metal
-
Certificate:
-
CE/ISO9001/CCC
-
Color:
-
customized
Quick Details
-
Breaking Capacity:
-
4.5KA/6KA
-
Rated Voltage:
-
250v/500v/750v/1000v
-
Rated Current:
-
1A-63 A
-
BCD Curve:
-
B
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNCSGK
-
Model Number:
-
DZ47-63
-
Rated Frequency (Hz):
-
50hz/60hz
-
Number of Pole:
-
1
-
Product name:
-
Miniature Circuit Breaker
-
Brand:
-
CNCSGK
-
Pole:
-
1P/2P/3P/4P
-
Material:
-
pc,metal
-
Certificate:
-
CE/ISO9001/CCC
-
Color:
-
customized
DZ47-63 series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short circuit in the system. The product is neoteric in structure light in weight, reliable and excellent in performance .Its frame and parts adopt plastics of high fire resistant and shockproof. The product overload and Short circuit protection, as well as for unfreouently switching on&of electric equipment and lighting circuit in
normal case.The products comply with IEC60898.
Specifications
|
Type
|
|
DZ47-63DC
|
|
|
Frame Degree Rated Current (A)
|
|
63A
|
|
|
Pole
|
|
IP, 2P, 3P, 4P
|
|
|
Rated Operating Voltage (VDC)
|
|
lP 250V\2P 500V\3P 750V\4P 1000V
|
|
|
Rated Current In (A)
|
|
1,2,3,4,6,10,16,20,25,32,40,50,63
|
|
|
Rated Insulation Voltage Ui (VDC)
|
|
1200VDC
|
|
|
Rated Impact Voltage Uimp (kV)
|
|
4kV
|
|
|
Ultimate Breaking Capacity leu (kA)
|
|
4.5kA/6kA
|
|
|
Run Breaking Capacity les (%lcu)
|
|
75%
|
|
|
Curve Type
|
|
B/C
|
|
|
Trip Type
|
|
Thermal-magnetic
|
|
|
Mechanical Life
|
Actual Average Value
|
20000
|
|
|
|
Standard Value
|
8500
|
|
|
Electric Life
|
Actual Average Value
|
6000
|
|
|
|
Standard Value
|
2500
|
|
Condition and Installation
|
Wiring Capacity (mm2)
|
|
32A, 1~25 mm2J^40A, 10~35mm2
|
|
|
|
||||
|
Ambient Temperature (*C)
|
|
-20-+70
|
|
|
|
||||
|
Altitude
|
|
^2000
|
|
|
|
||||
|
Relative Humidity
|
|
W95%
|
|
|
|
||||
|
Pollution Level
|
|
3
|
|
|
|
||||
|
Installation Environment
|
|
No obvious shock and vibration
|
|
|
|
||||
|
Installation Category
|
|
Class III
|
|
|
|
||||
|
Installation
|
|
DIN Standard rail
|
|
|
|
||||
|

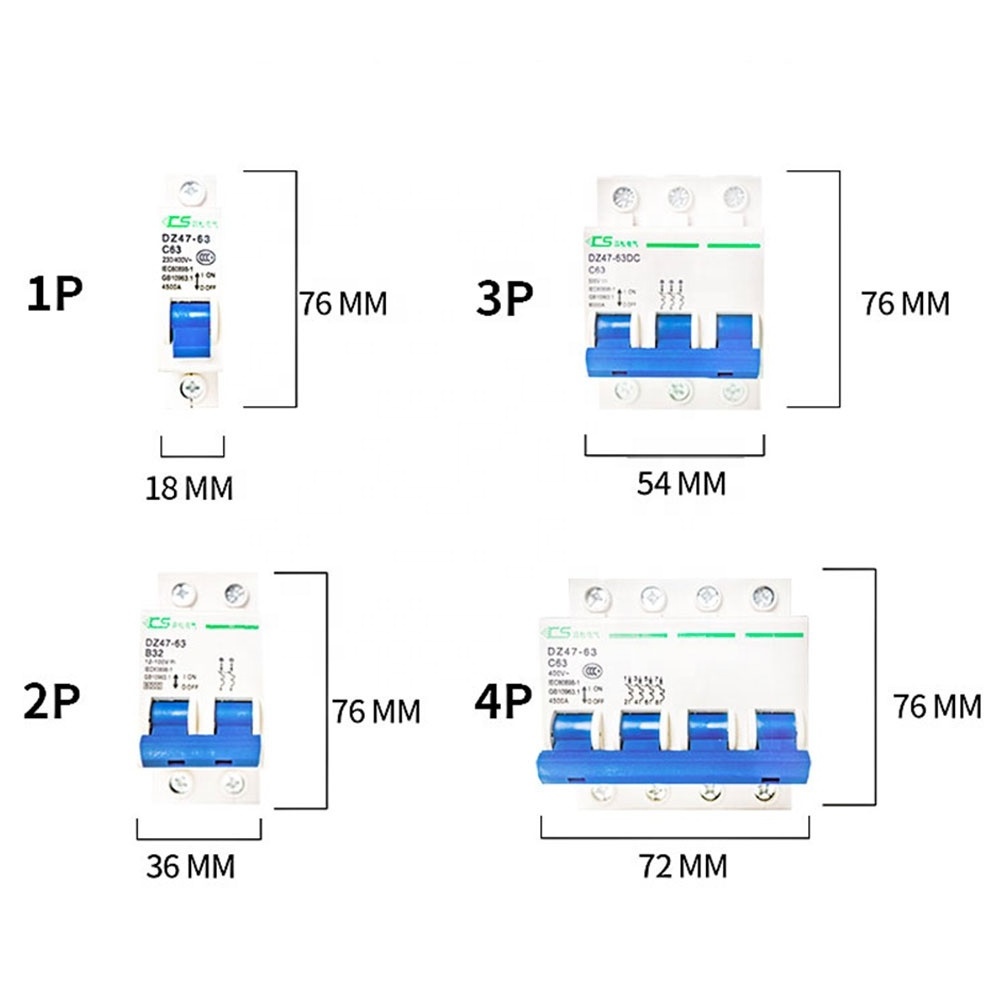

Dimensions(W)x(H)x(Deep)
|
W
|
18
|
36
|
54
|
72
|
||||
|
|
H
|
80
|
80
|
80
|
80
|
||||
|
|
Deep
|
71
|
71
|
71
|
71
|
||||
|
Weight (kg)
|
|
0.12
|
0.24
|
0.36
|
0.48
|
||||
