Quick Details
-
Model Number:
-
BST-L215
-
Product Name:
-
Motorized Tv Lift
-
Color:
-
Can be customized
-
Material:
-
Aluminum Alloy
-
Control way:
-
Remote Control/Manual
-
Suitable for:
-
Video Conference Room
-
Warranty:
-
1 Year
-
Control mode:
-
Panel button, remote control, center control
-
Certificate:
-
CE RoHS SGS
-
specification:
-
G/W 7KG 0.07CBM
Quick Details
-
Type:
-
Audio Conference System, Network Conference System, Video Conference System
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Blue Shark
-
Model Number:
-
BST-L215
-
Product Name:
-
Motorized Tv Lift
-
Color:
-
Can be customized
-
Material:
-
Aluminum Alloy
-
Control way:
-
Remote Control/Manual
-
Suitable for:
-
Video Conference Room
-
Warranty:
-
1 Year
-
Control mode:
-
Panel button, remote control, center control
-
Certificate:
-
CE RoHS SGS
-
specification:
-
G/W 7KG 0.07CBM

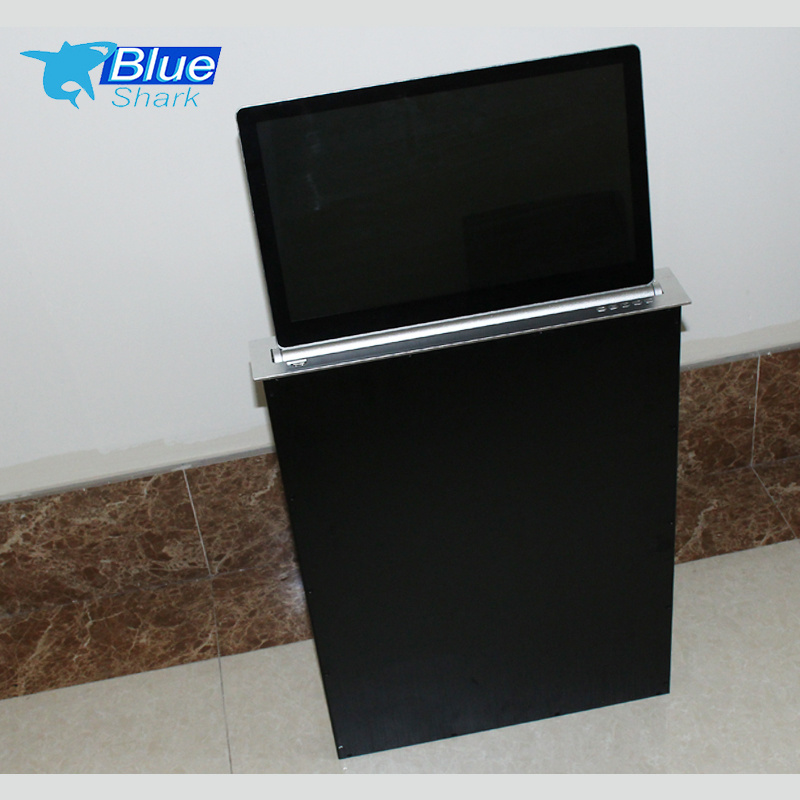

Digital paperless Conference System With Voting System/ office equipment pop up lcd monitor lift audio video conference system
Function: The office system for multimedia conference high-end conference venue. Automatically rises out of the desktop when needed, and hidden in the table when not in use.
Performance: The lcd monitor adopts two motors, double guide rails and single synchronous belt transmission principle. It has the advantages of waterproof, dust-proof, anti-card, anti-pollution , the originate anti-pinch and With power-off protection, memory LCD angle function.
Appearance : The aluminum alloy panel is made of advanced technology such as drawing, dyeing and oxidation. The exterior is beautiful and elegant, low failure rate and easy to operate and maintain .
Control method : manual control, central control, remote control
color: silver, black, etc. Can be customized as your requirements
The design concept : Aesthetics / Practicality / Stability / Ease of use
Product structure and characteristics:
1 Adopt the most advanced angle adjustment method with memory function
2 Use aluminum alloy wire drawing oxidation panel in top
3 Control the lifter by RS485 serial communication mode
4 With waterproof function
5 Adopting double-rail synchronous belt transmission principle
6 Adopt high-power ultra-quiet synchronous motor
Product interface:
1-2 channel DB15 VGA interface central control interface (RS485) AC220V
power interface panel size: 600*148*3mm
Panel cut-out size : 601*149*3mm
Cabinet size : 580*131*647mm
Chassis cut-out size : 591*140mm
Lifting port size : 526*76mm
Power: 5-15W
|
Screen size |
15.6" |
| screen resolution | 1920*1080 |
| Screen ratio | 16:09 |
| Touchpad type | capacitance |
| Touch points | 10 |
| light transmittance | ≥87% |
| surface hardness | 3H |
| Working temperature | -20℃~+70℃ |
| Casing material | aluminium plate |
| Casing color | Black /Silver |
| signal input | VGA/HDMI |
| Touchpad connector | USB |
| system requirement | Win7/Win8 |
| control interface | RS485 |
| Control type | Hand in hand |
| Input power | AC220V 50-60Hz |
