Quick Details
-
Voltage:
-
220V /380V/ 50-60HZ
-
Dimension(L*W*H):
-
5832*2727*2367mm
-
Weight (KG):
-
3000 KG
-
Power (kW):
-
2.2KW
-
Application:
-
Wood Drilling Furniture Making
-
Product name:
-
Panel Furniture Sides CNC Drilling Machine
-
Key words:
-
Automatic Hole Drilling Machine
-
Control system:
-
Blue Elephant Custom System
-
Spindle power:
-
2.2KW
-
Spindle speed:
-
0-18000RPM/MIN
-
Idling speed:
-
100m/min
-
working speed:
-
80m/min
-
Working travel:
-
2800mm
-
Height of table:
-
750mm
Quick Details
-
Motor Type:
-
Dongling servo motor and drive
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue Elephant
-
Voltage:
-
220V /380V/ 50-60HZ
-
Dimension(L*W*H):
-
5832*2727*2367mm
-
Weight (KG):
-
3000 KG
-
Power (kW):
-
2.2KW
-
Application:
-
Wood Drilling Furniture Making
-
Product name:
-
Panel Furniture Sides CNC Drilling Machine
-
Key words:
-
Automatic Hole Drilling Machine
-
Control system:
-
Blue Elephant Custom System
-
Spindle power:
-
2.2KW
-
Spindle speed:
-
0-18000RPM/MIN
-
Idling speed:
-
100m/min
-
working speed:
-
80m/min
-
Working travel:
-
2800mm
-
Height of table:
-
750mm
Products Description

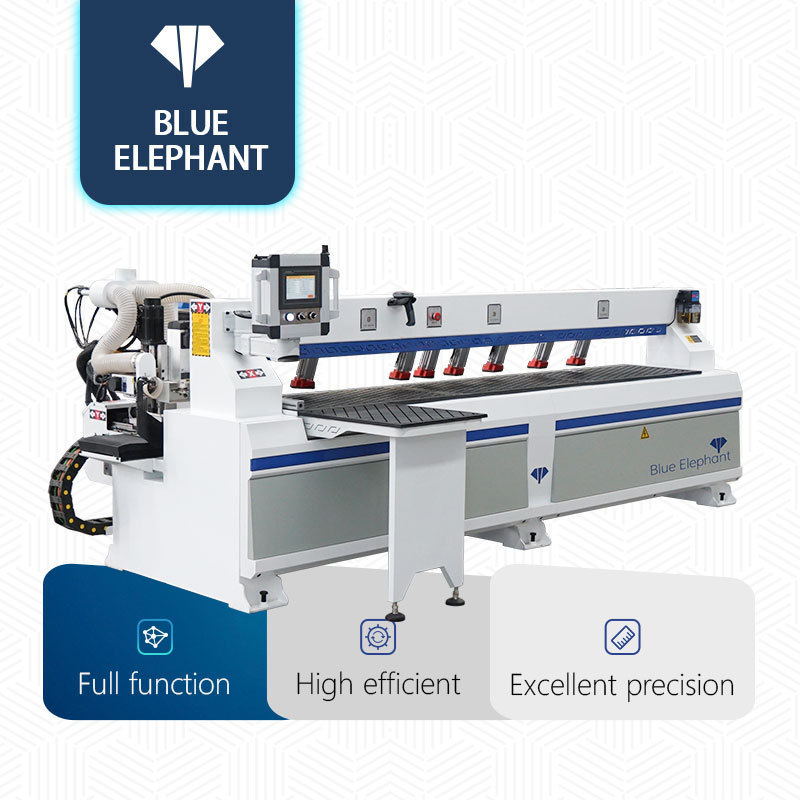

High Quality Three Head Side Drilling Machine CNC Wood Multi-Head Cabinet Door Drilling Machine For Furniture Making Machine
The multi head drilling machine is a practical numerical control equipment for plate furniture. It is mainly used to solve the
problem that the CNC nesting machine cannot punch or boring side holes, and the precision of ordinary pneumatic row drills is not high, and needs repeated positioning.
problem that the CNC nesting machine cannot punch or boring side holes, and the precision of ordinary pneumatic row drills is not high, and needs repeated positioning.
Features
1. Support various docking furniture design production software with opening worktable port.
2. Simple operation. Without any software, it can directly blind play truly intelligent production
3. Zero-based staff are qualified for operation after only one hour of professional training, which saving labor costs.
4. Please notice that all the specifications can be customized according to your special requirements.
Product Paramenters
|
Model
|
ELECNC300
|
|
Spindle power
|
2.2KW
|
|
Spindle speed
|
0-18000RPM/MIN
|
|
Idling speed
|
100m/min
|
|
Working speed
|
80m/min
|
|
Working travel
|
2800mm
|
|
Height of table
|
750mm
|
|
Drive and motor
|
0.75kW Dongling servo motor*3
|
|
Sensor
|
BANNER
|
|
Controller
|
Luolunchi code scanning and laser scanning dual system
|
|
Guild
|
#20 square rail
|
|
Rack
|
Taiwan JUELI
|
|
Whole size
|
3600*1250*1300mm
|
