Quick Details
-
Pressure range:
-
-0.1~0~100Mpa
-
Output:
-
4-20mA+2 relays
-
Swithc type:
-
PNP/NPN
-
Service life:
-
1million times
-
Power:
-
24VDC+-20%
Quick Details
-
Max. Voltage:
-
30V
-
Display accuracy:
-
0.1%FS
-
Connection:
-
M20*1.5 G1/2 G1/2 NPT
-
Pressure range:
-
-0.1~0~100Mpa
-
Output:
-
4-20mA+2 relays
-
Swithc type:
-
PNP/NPN
-
Service life:
-
1million times
-
Power:
-
24VDC+-20%

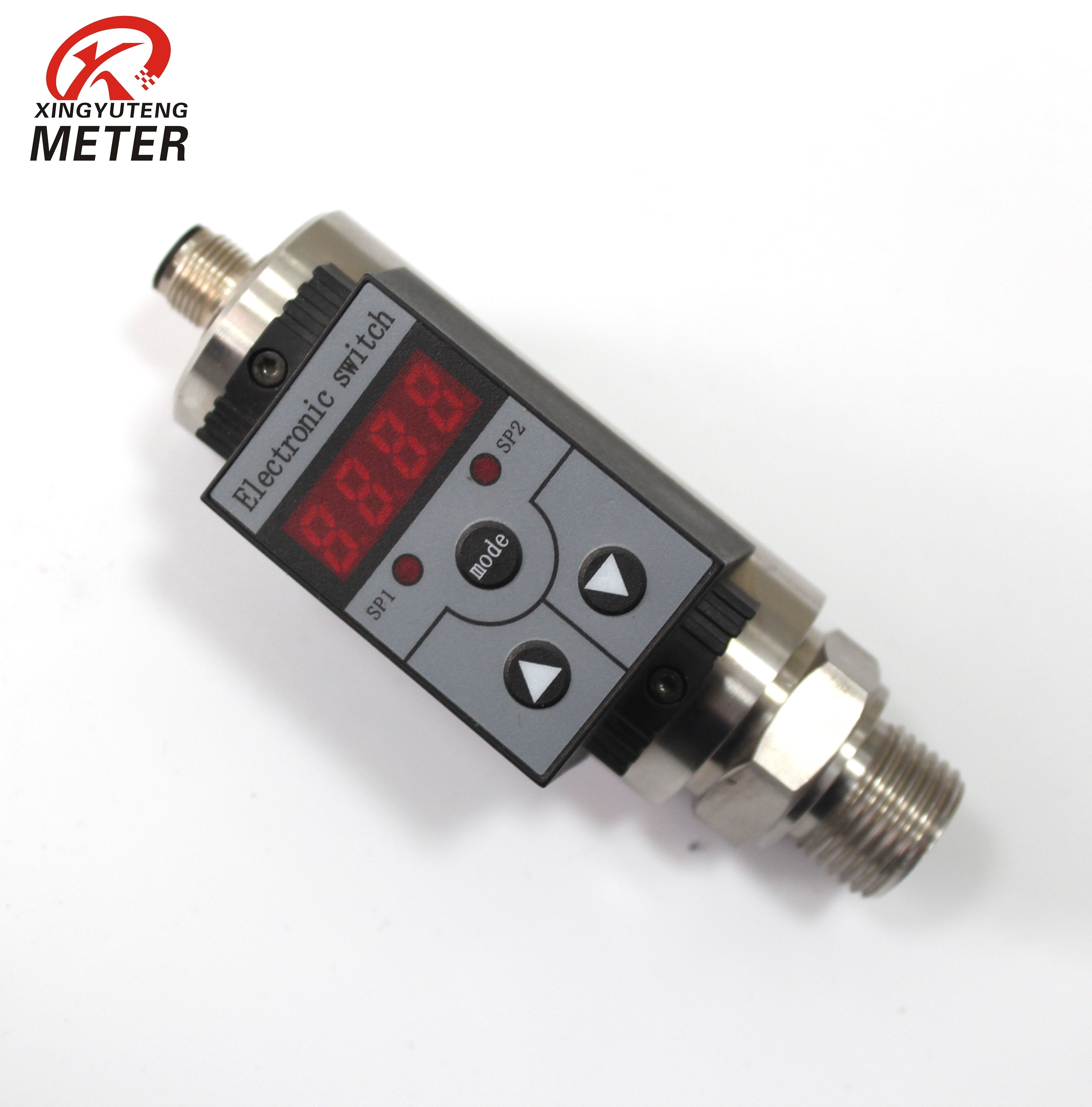

LED digital hydraulic pressure switch
Overview
LED digital hydraulic pressure switch
(QYK103) is a smart pressure transmitter with switch including measuring pressure, display, output and control. It has advantages of high stability and fast response speed, which is suitable for hydraulic field.
Main Features
1.4 digits display
2.Fast switch speed, 320 times/s
3.Span zoom and shift
4.Preset switch value and delay switch action
5.Optional switch output function
6.Luminous diode for switch action
7.Button adjustment and set up parameters on site
8.2 lines switch output, load capacity 1.2A
9.4-20mA output
10.330°rotary display window
|
SELECTION GUIDE OF LED digital hydraulic pressure switch (QYK103)
|
|
|
|
|||
|
Model
|
Electronic connection
|
H
|
1 analog output(Hirschann)
|
|||
|
|
|
M
|
2 switching outputs + 1 analog output(M12-5p)
|
|||
|
|
G14
|
G1/4
|
|
|||
|
|
G12
|
G1/2
|
|
|||
|
|
M20
|
M20*1.5
|
|
|||
|
Switching type
|
P
|
PNP
|
|
|||
|
|
N
|
NPN
|
|
|||
|
Measuring Range
|
|
Please contact us for customization
|
|
|||
|
SPECIFICATIONS OF LED digital hydraulic pressure switch (QYK103)
|
|
|
|
|||
|
PRESSURE RANGE
|
-0.1~0...100MPa
|
|
|
|||
|
CONTROL ACCURACY
|
≤0.5%F.S
|
|
|
|||
|
STABILITY
|
≤0.1%/year
|
|
|
|||
|
POWER SUPPLY
|
24V±20%
|
|
|
|||
|
Display accuracy
|
±0.1%F.S
|
|
|
|||
|
Max power dissipation
|
<1W
|
|
|
|||
|
DISPLAY
|
4-character digital LED
|
|
|
|||
|
Load Capacity
|
<24V/1.2A
|
|
|
|||
|
SWICTH TYPE
|
PNP/NPN
|
|
|
|||
|
Sensor
|
Diffused sillcon
|
|
|
|||
|
RESPONSE TIME
|
<5ms
|
|
|
|||
|
PROTECTION GRADE
|
IP65
|
|
|
|||
|
MEDIUM TEMPERATURE
|
-40-150℃
|
|
|
|||
|
DISPALY RANGE
|
-1999~9999
|
|
|
|||
|
Working life of switch
|
>1 million times
|
|
|
|||
