- Product Details
- {{item.text}}
Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
400 mm
-
Travel (Y Axis)(mm):
-
400 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
3
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LEEDER CNC
-
Voltage:
-
AC220V/380V-50HZ/60HZ
-
Dimension(L*W*H):
-
400*400*150
-
Power (kW):
-
2.2
-
Weight (KG):
-
400
-
Spindle power:
-
1.5/2.2/3.2KW
-
Working table:
-
T slot cast iron
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Working area:
-
400x400mm
-
Working Voltage:
-
AC220V/380V-50HZ/60HZ
-
Product name:
-

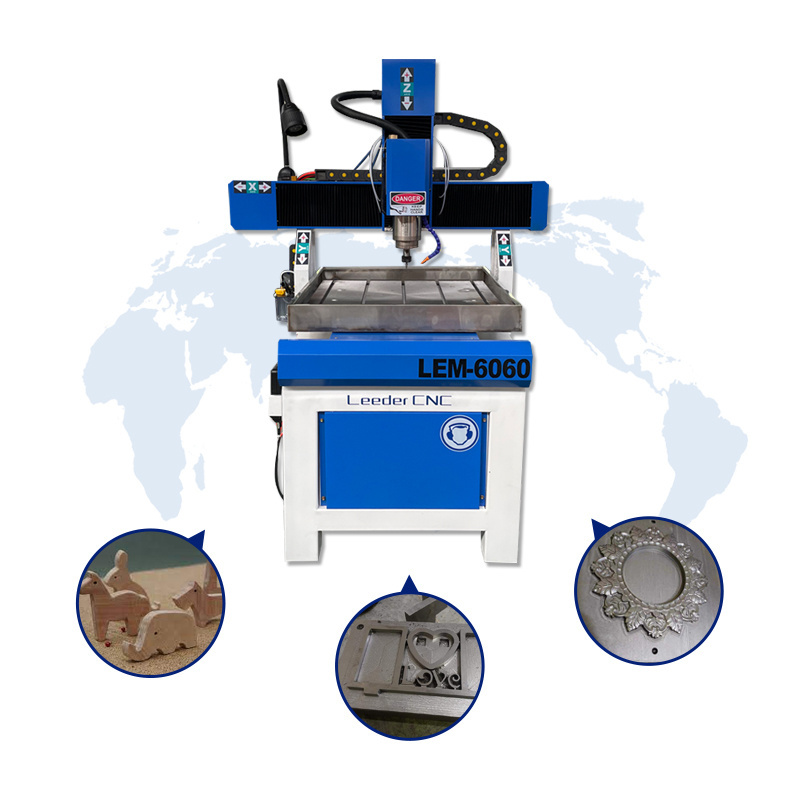

cnc router 4040 cnc milling machine 6060 6090
-
Control system:
-
Nc-studio/Mach3/DSP Controller
-
Inverter:
-
Fuling/Best
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Motor:
-
Stepper Motor
Quick Details
-
Working Table Size(mm):
-
400*400
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
18000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
400 mm
-
Travel (Y Axis)(mm):
-
400 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
3
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LEEDER CNC
-
Voltage:
-
AC220V/380V-50HZ/60HZ
-
Dimension(L*W*H):
-
400*400*150
-
Power (kW):
-
2.2
-
Weight (KG):
-
400
-
Spindle power:
-
1.5/2.2/3.2KW
-
Working table:
-
T slot cast iron
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Working area:
-
400x400mm
-
Working Voltage:
-
AC220V/380V-50HZ/60HZ
-
Product name:
-
cnc router 4040 cnc milling machine 6060 6090
-
Control system:
-
Nc-studio/Mach3/DSP Controller
-
Inverter:
-
Fuling/Best
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Motor:
-
Stepper Motor
Products Description
Feature
# High accuracy Taiwan TBI ball screw is more stable and has much higher precision than the common screw.
# X Y Z high quality Taiwan Hiwin linear rail has much longer life 10 times of life-time than round guide; It is stable and hard to distort.
# Chinese top brand HQD 1.5KW/2.2KW/3KW water cooling spindle has much powerful strength and higher efficiency, so it will have a better effect and have a longer time.
# Anti-dust system, prevent dust during working, make sure the long lifespan.
# Oil lubrication system for square rails and ball screw.
# Compact design with built-in cabinet reduces space for easy transportation
Product Paramenters
|
ITEM
|
DESCRIPTION
|
|
Model
|
LEA-4040
|
|
Working area
|
400 x 400 x 150/200/300 mm
|
|
Working table
|
Cast iron table
|
|
Spindle
|
1.5kw/2.2kw/3 kw
|
|
Cooling system
|
Air cooling or water cooling
|
|
Control system
|
NC Studio/DSP/MACH3
|
|
Inverter
|
Fuling / Best
|
|
Transmission system
|
XY and Z axis TBI ball screw
|
|
Guide rail
|
Taiwan Hiwin square rail
|
|
Driving system
|
Stepper or Servo
|
|
Machine body
|
Square tube welding body
|
|
Software
|
Artcam/AutoCAD/Type3,other CAD/CAM
|
|
Command code
|
G code
|
Details Images
Working Sample
# Woodworking: wooden door and furniture, windows, tables and chairs, cabinets and panels, 3D wave plate, MDF, computer desk, musical instruments, etc;
# Advertising: billboard, logo, sign, 3D characters cutting, acrylic cutting, LED/neon channel, literal-hole cut, lightbox mold, stamp, mould, etc;
# Die industry: copper sculpture, aluminum engrave, metal mold, plastic sheeting, PVC, etc;
# Decoration: acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper.
