Quick Details
-
Model Number:
-
FS-V-400/500/600
-
Certification:
-
CE/ROHS/ISO
-
Output Voltage:
-
12/24V
-
rotor diameter:
-
0.52m
-
Type:
-
Wind Power Generator
-
Blade material:
-
glass/basalt
-
Blades number:
-
2pcs
-
Generator:
-
Three phase permanent magnet suspension motor
-
Mount Height(m):
-
7~12m (9m)
-
Rated wind speed:
-
13m/s
-
start wind speed:
-
1.3m/s
-
safe wind speed:
-
40m/s
-
Model:
-
wind turbine for home
-
Product assembly weight (Kg):
-
<24Kg
Quick Details
-
Rated Power:
-
400/500/600W
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YIFENG
-
Model Number:
-
FS-V-400/500/600
-
Certification:
-
CE/ROHS/ISO
-
Output Voltage:
-
12/24V
-
rotor diameter:
-
0.52m
-
Type:
-
Wind Power Generator
-
Blade material:
-
glass/basalt
-
Blades number:
-
2pcs
-
Generator:
-
Three phase permanent magnet suspension motor
-
Mount Height(m):
-
7~12m (9m)
-
Rated wind speed:
-
13m/s
-
start wind speed:
-
1.3m/s
-
safe wind speed:
-
40m/s
-
Model:
-
wind turbine for home
-
Product assembly weight (Kg):
-
<24Kg

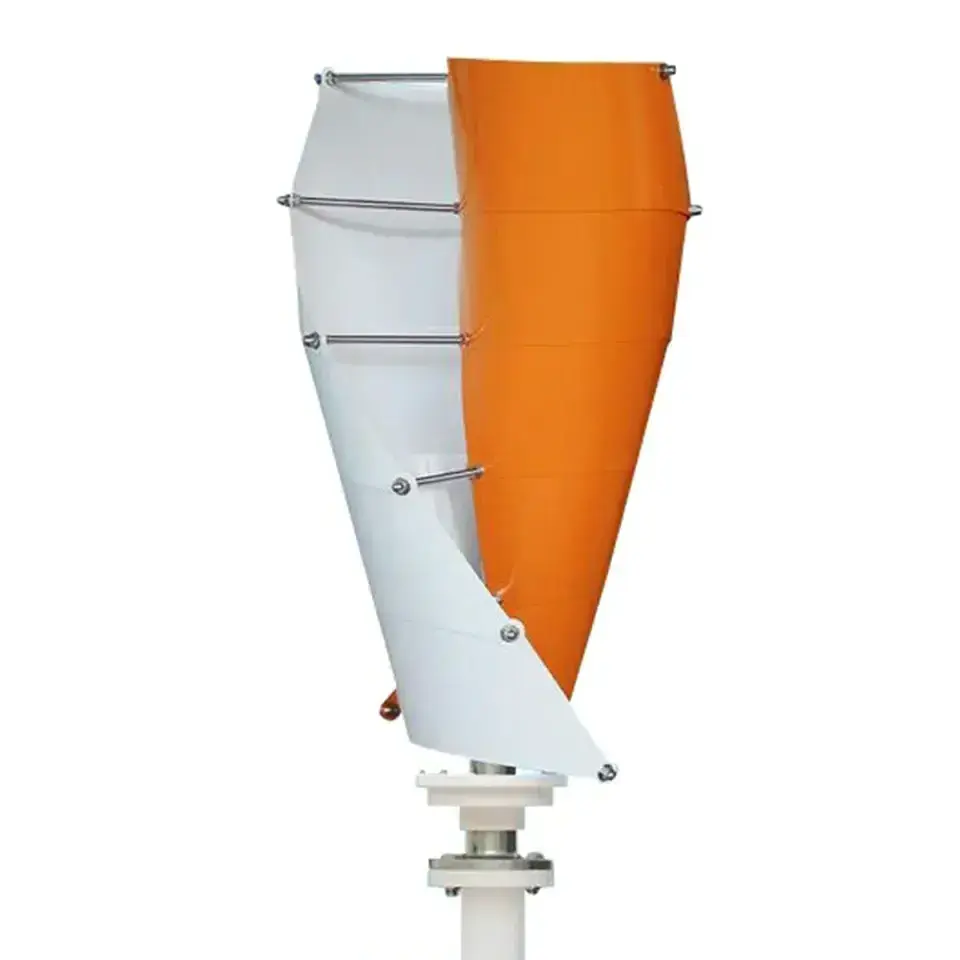

Product Description
YIFENG wind generator for home is the conversion of wind energy into mechanical energy first and electric energy afterwards. This equipment can fully make use of wind power to recharge a battery, and also can saved energy into ac source alternating current.Without the necessity of fuel, the GREEF wind power generator is pollution free and far away from noise. It is generally applicable to the area which has good condition but is far away from the power grid, or the power grid is not normal. The equipment can supply lighting, the television set, the searchlight, the communication equipment, the power tool and other household appliances.
Technical Parameters
|
item
|
FS-V-400
|
FS-V-500
|
FS-V-600
|
||
|
Started wind speed (m/s)
|
1.3 m/s
|
1.3 m/s
|
1.3 m/s
|
||
|
Cut-in wind speed (m/s)
|
2.5 m/s
|
2.5 m/s
|
2.5 m/s
|
||
|
Rated Wind speed (m/s)
|
13 m/s
|
13 m/s
|
13 m/s
|
||
|
Rated voltage（DC）
|
12/24V
|
12/24V
|
12/24V
|
||
|
Rated power（W）
|
400W
|
500W
|
600W
|
||
|
Max power（W）
|
450W
|
550W
|
650W
|
||
|
Rotor Diameter of Blades（m)
|
0.52
|
|
|
||
|
Blades Height（m)
|
1.3(no generator)
|
|
|
||
|
|
1.5 (include generator and Flange)
|
|
|
||
|
Safe wind speed (m/s)
|
Max wind speed：≤40m/s，The instantaneous maximum wind speed≤45m/s
|
|
|
||
|
Blades quantity
|
2
|
|
|
||
|
Blade material
|
glass/basalt
|
|
|
||
|
Generator
|
Three phase permanent magnet suspension motor
|
|
|
||
|
Control System
|
Electromagnet
|
|
|
||
|
Mount Height（m)
|
7~12m （9m）
|
|
|
||
|
Generator protection grade
|
IP54
|
|
|
||
|
Work environment temperature
|
VAWT -25~+45℃、
|
|
|
||
|
|
controller -10~+45℃
|
|
|
||
|
|
Inverter 0~+40℃
|
|
|
||
|
Work environment humidity
|
VAWT ≤90%、
|
|
|
||
|
|
Controller and inverter≤80%
|
|
|
||
|
Altitude：
|
≤4500m
|
|
|
||
|
Product assembly weight (Kg)
|
<24Kg
|
|
|
||
|
Overspeed protection
|
Electromagnetic brake
|
|
|
||
|
Overload protection
|
Electromagnetic brake and the unloading unit
|
|
|
||
Application&Installation
• Household, Garden, farm
• Telecom sites.
• Rural electrification programs. Island , sentry, island, sight lighting
The electric turbine 600W is often used in conjunction with solar panels to provide more reliable year-round energy supply.
• Telecom sites.
• Rural electrification programs. Island , sentry, island, sight lighting
The electric turbine 600W is often used in conjunction with solar panels to provide more reliable year-round energy supply.
