Quick Details
-
Brand Name:
-
LIYI
-
Usage:
-
density meter
-
Test range:
-
0.001-120g
-
Test type:
-
Powder particle body liquid
-
Accuracy:
-
0.0001g/cm3
-
Displaying data:
-
Powder true density; Liquid density, concentration
-
Temperature compensation:
-
Solution temperature can set to 0~49°C
-
Solution compensation:
-
Solution can set to 19.999
-
Mix proportion:
-
Set two kinds of mixture mixing ratio function
-
Purchasing accessary:
-
QL-P printer
-
Certificate:
-
CE ISO
Quick Details
-
Warranty:
-
12 months
-
Type:
-
Density meter
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LIYI
-
Usage:
-
density meter
-
Test range:
-
0.001-120g
-
Test type:
-
Powder particle body liquid
-
Accuracy:
-
0.0001g/cm3
-
Displaying data:
-
Powder true density; Liquid density, concentration
-
Temperature compensation:
-
Solution temperature can set to 0~49°C
-
Solution compensation:
-
Solution can set to 19.999
-
Mix proportion:
-
Set two kinds of mixture mixing ratio function
-
Purchasing accessary:
-
QL-P printer
-
Certificate:
-
CE ISO

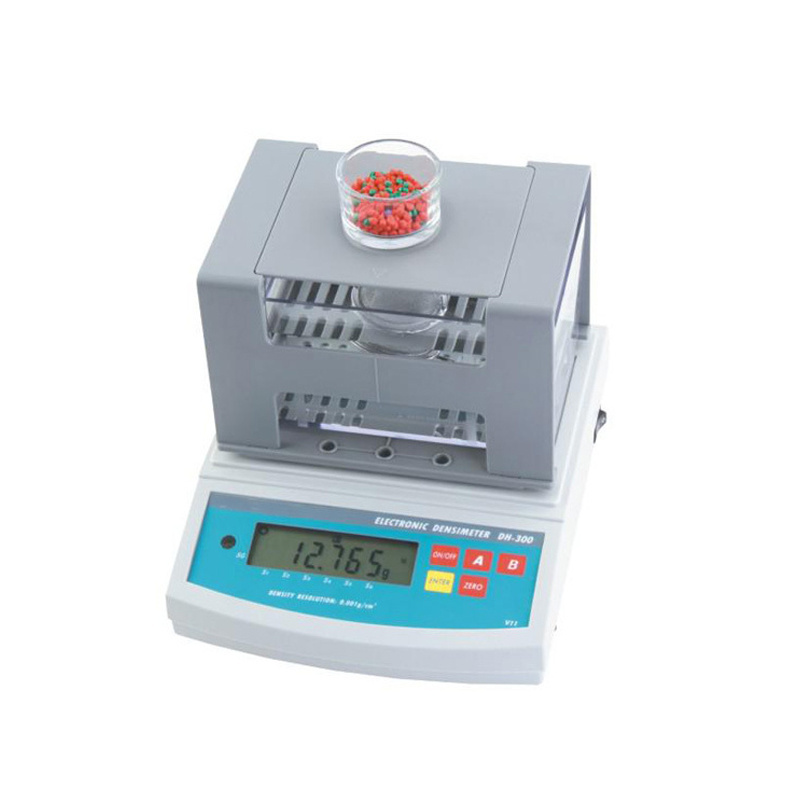

LIYI Manufacture electronic Powder Pycnometer Rubber Plastic Solid Density Meter Densitometer Densimeter
Suitable for:
Rubber, Plastic, Film, Electric wire, Glass industry, Liquid, Adding additives, New materials research lab.
Principle:
According to ASTM,JIS,GB/T,ISO standards, adopting the buoyancy method and the water displacement method of Archimedes principle , it can accurately and directly measure the value.
Functions:
1.
It
has the function of showing mixture proportion
for the new materials research and the choice of mixture proportion,
it
can directly show the proportion value.
2. It has the function of upper limit and lower limit, it can judge whether the density of the sample is appropriate or not.
3. The measuring is fast, shortening the testing time.
4.It h as the RS-232C interface easily connect with the PC and the printer.
5. It adopts design of tank (the maximum dimension of the sample is W70*D100*H25mm for solid measuring), this can decrease the inaccuracy caused by supporting wire’s buoyancy.
6. It has the liquid model, and the optional equipment can be purchased. It can satisfy the testing of solid and liquid.
|
Model |
LY- -300S |
LY-120S |
|
Weight |
4.4kg |
|
|
Size(W*H*D)mm |
425 * 175 * 325 |
|
|
Power supply voltage |
AC100~240V / 50HZ |
|
|
Density accuracy |
0.001g/cm 3 |
0.0001g/cm 3 |
|
Density range |
0.001—99.999 g/cm 3 |
0.0001—99.9999g/cm 3 |
|
Weighing accuracy |
0.005g |
0.00 1 g |
|
Maximum weighing |
300g |
12 0g |
|
Measur ing type |
Any solution can be measured |
|
|
R esult display |
Density value |
|
|
Specific gravity measuring frame |
Stainless steel specific gravity measuring frame |
|
|
Function setting |
Setting of temperature, density of solution, weight value of standard measuring weight and weight value of water |
|
|
Result correct mode |
Distilled water validation |
|
