Quick Details
-
Product name:
-
cloth wrapped flexible rubber bellow hose
-
Material:
-
EPDM rubber
-
Inner Diameter:
-
1 1/8" , 1 1/4" , 1 3/8" , 1 3/4" , 1 1/2" , 2" , 2 1/4", 2 1/2" , 3"
-
Length:
-
10",12",14",16",18",20",22",24",26",28",30"
-
Working Temperature:
-
-30 ℃ to +180 ℃
-
Wall Thickness:
-
2-6 mm
-
Hardness:
-
35~80 shore A
-
Color:
-
Black
-
Application:
-
Automotive
-
Item name:
-
Rubber corrugated flexible hose
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
KIDE
-
Model Number:
-
2 inch flexible radiator hose
-
Product name:
-
cloth wrapped flexible rubber bellow hose
-
Material:
-
EPDM rubber
-
Inner Diameter:
-
1 1/8" , 1 1/4" , 1 3/8" , 1 3/4" , 1 1/2" , 2" , 2 1/4", 2 1/2" , 3"
-
Length:
-
10",12",14",16",18",20",22",24",26",28",30"
-
Working Temperature:
-
-30 ℃ to +180 ℃
-
Wall Thickness:
-
2-6 mm
-
Hardness:
-
35~80 shore A
-
Color:
-
Black
-
Application:
-
Automotive
-
Item name:
-
Rubber corrugated flexible hose

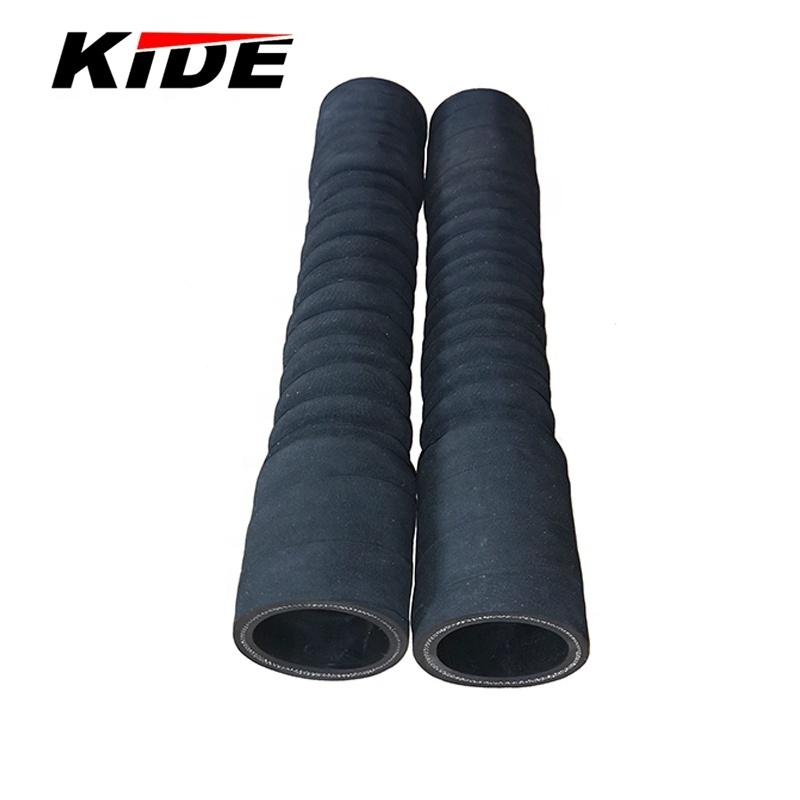

2 inch flexible radiator rubber corrugated hose cloth wrapped flexible rubber bellow hose
EPDM flexible rubber bellow hose is designed to replace the straight hoses or molded radiator when the trajectory permits. Construction with fabric reinforcement EPDM and meets the requirements of SAE J20R4, Class D-2, prevents the formation of cracks, bumps and stretching and is resistant to ozone and other harmful environmental elements, cooling and temperature variations – 40 F (-40 C) to + 257F (+ 125C). The folds of the hose provides excellent flexibility without crushing or collapse. Flexible radiator hose has a handy strap for easy hanging plastic. Note: Not suitable for transferring fuel or oil.
Flexible rubber bellow hose parameters
| Item name | Flexible radiator rubber corrugated hose |
| Material | EPDM rubber |
| Inner Diameter | 1 1/8" , 1 1/4" , 1 3/8" , 1 3/4" , 1 1/2" , 2" , 2 1/4", 2 1/2" , 3" |
| Length | 10",12",14",16",18",20",22",24",26",28",30" |
| Wall Thickness | 2-6 mm |
Flexible radiator rubber corrugated hose s how
1. Straight rubber radiator flexible hose dimensions:
2. Reduced flexible rubber bellow hose dimensions
