Quick Details
-
Application:
-
Warehouse
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CARIN
-
Model Number:
-
L7
-
Name:
-

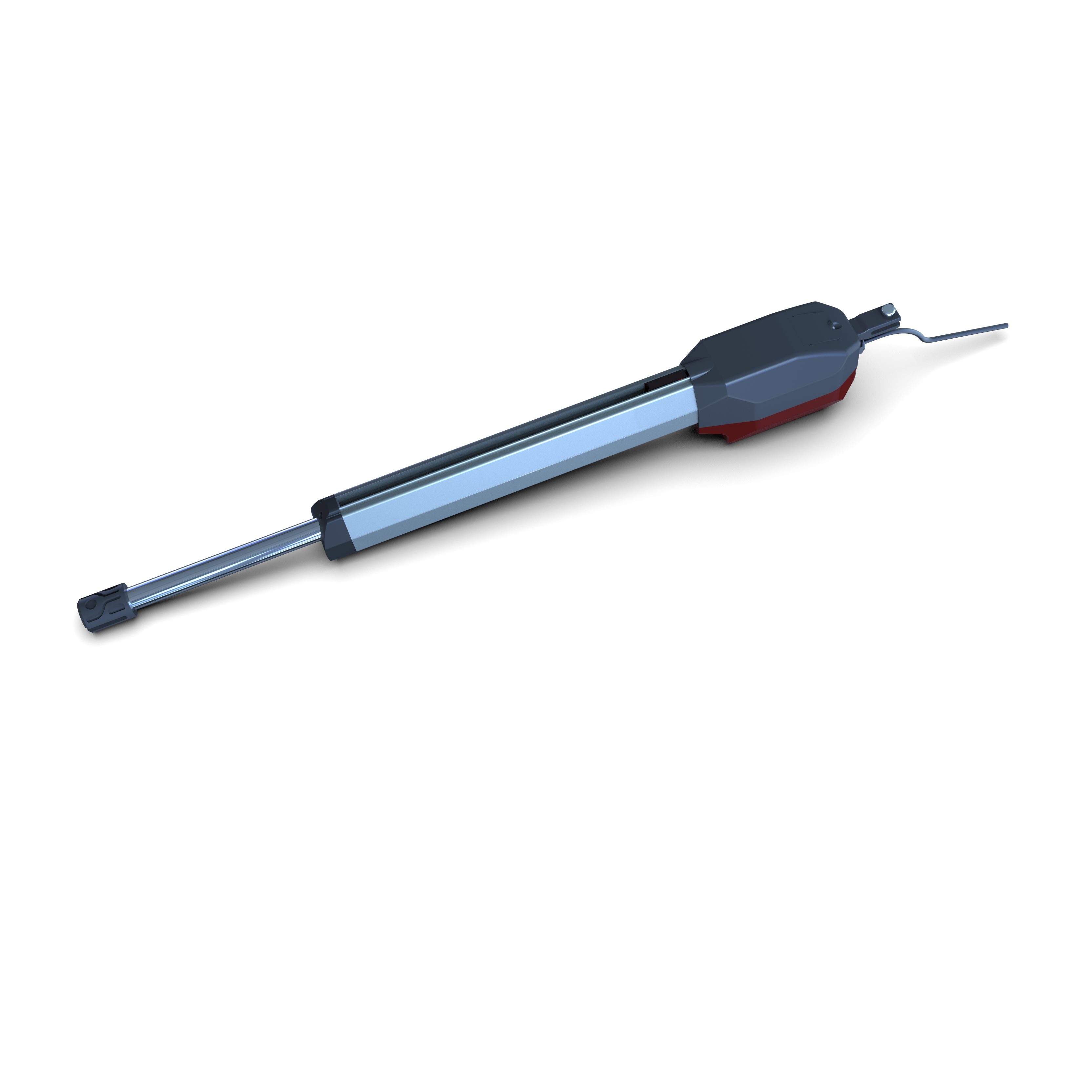

Swing Gate Operator
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Warehouse
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CARIN
-
Model Number:
-
L7
-
Name:
-
Swing Gate Operator
Products Description
FEATURE
• Automation for residential / commercial use
• Automation for gates leaves up to 5 m
• 230 V gate operator
• built-in capacitor
• rod extension gate operator
• electrical connections are easier thanks to the larger space
• quick and easy installation
• manual release with key lock
• Automation with high torque and power
• suitable for large gates and non standard sized posts
Powerful and quiet. Strong aluminium with bronze gearing system.
Quick and simple to install, it can easily fit on almost any kind of swing gate.
Product Paramenters
|
Model
|
L7-AC-400
|
L7-AC-600
|
|
Power Supply
|
AC110/220
|
AC110/220
|
|
Motor
|
110/220
|
110/220
|
|
Current
|
2A/1A
|
2A/1A
|
|
Absorbed Power
|
220W
|
220W
|
|
Max leaf Length
|
4M
|
5M
|
|
Max leaf Weight
|
500KGS
|
500KGS
|
|
Open Speed
|
1.6CM/S
|
1.6CM/S
|
|
Thrust
|
3000N
|
3000N
|
|
Stroke
|
400MM
|
600MM
|
|
Working Temp.
|
-20°C~+70°C
|
-20°C~+70°C
|
|
Duty
|
40%
|
40%
|
|
Protection Class
|
IP45
|
IP45
|
|
Capacitor
|
25uf/8uf
|
25uf/8uf
|
|
Open Angle
|
0~120
|
0~120
|
|
Limit Switch
|
Limit Switch
|
Limit Switch
|
