Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, Other
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HongBaoYuan
-
Voltage:
-
220v--440v
-
Dimension(L*W*H):
-
1600*1400*2100mm
-
Weight (KG):
-
4200 kg
-
Raw material:
-
Clay Soil Earth Cement
-
Block Type:
-
Interlocking Brick
-
Color:
-
Blue
-
Products:
-
Clay Interlock Blocks
-
Keywords:
-
Clay Logo Brick Making Machine
-
Product Name:
-
Automatic Interlocking Brick Making Machine
-
Brick type:
-
Soil Clay Brick
-
Molding cycle:
-
7-10s
-
Name:
-
HBY4-10 clay block machine
-
Weight:
-
2000KG
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other
-
Brick Raw Material:
-
Clay
-
Production Capacity (Pieces/8 hours):
-
4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours, Other
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, Other
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HongBaoYuan
-
Voltage:
-
220v--440v
-
Dimension(L*W*H):
-
1600*1400*2100mm
-
Weight (KG):
-
4200 kg
-
Raw material:
-
Clay Soil Earth Cement
-
Block Type:
-
Interlocking Brick
-
Color:
-
Blue
-
Products:
-
Clay Interlock Blocks
-
Keywords:
-
Clay Logo Brick Making Machine
-
Product Name:
-
Automatic Interlocking Brick Making Machine
-
Brick type:
-
Soil Clay Brick
-
Molding cycle:
-
7-10s
-
Name:
-
HBY4-10 clay block machine
-
Weight:
-
2000KG
Product Description

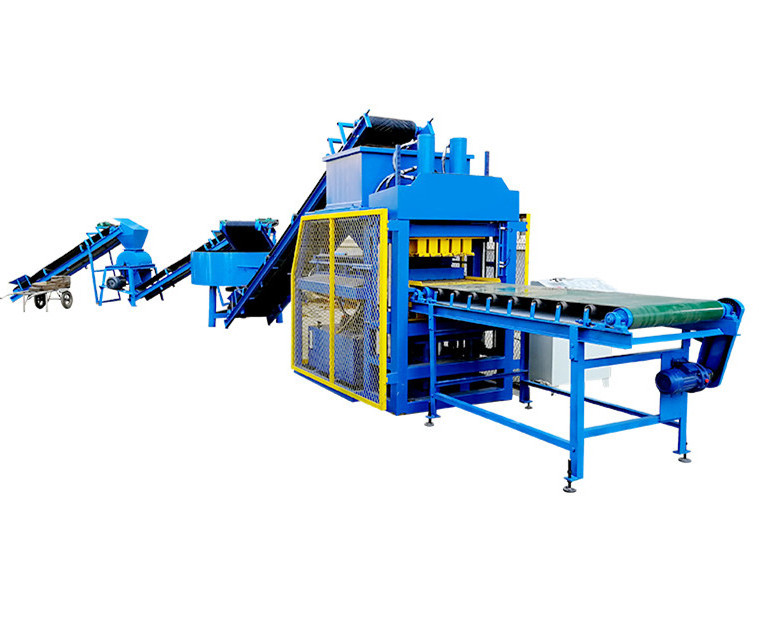

peru fired clay brick making machine soil brick press brick making machines for sale
Video Link in Youtube :https://youtu.be/opcGeldNxBM
https://youtu.be/m9L_Nepat9w
1.Four guidepost, the moulds rise/drop steadily.
| Main technical parameter of HBY4-10 clay brick machine | |
| Overall size | 2260 (L)* 1500 (W)* 2380 (H)mm |
|
Shipping method
|
Hydraulic pressure
|
| Shaping cycle | 7-10s |
| Power | 11KW |
| Rate voltage |
380v-440v as request R
|
| Pressure | 30-35Mpa |
| Total weight | 1800KGS |
The block molds is customizable and replaceable to produce different kinds of blocks according to your requirement.
| HBY4-10 clay brick machine production capacity | |||
| Size (LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr |
| 300x150x100mm | 4 |
1440-2050
|
11520-16450
|
| 250x125x100mm | 5 | 1800-2500 | 14400-20000 |
| 220x220x115 mm | 3 |
1100-1530
|
8800-12300 |
| 125x125x100mm | 10 |
3600-5000
|
28800-40000 |
| 150 x150x100 mm | 8 |
2880-4100
|
23040-32900 |
Detailed Images
