Quick Details
-
Range of Spindle Speed(r.p.m):
-
50 - 1200 r.p.m
-
Width of bed (mm):
-
182mm
-
Max. Turned Length (mm):
-
940 mm
-
Spindle Motor Power(kW):
-
1.1
-
Year:
-
2024
-
Place of Origin:
-
China
-
Brand Name:
-
Sumore
-
Model Number:
-
SP2142
-
Voltage:
-
Customer's Requirement
-
Dimension(L*W*H):
-
1780X750X760mm
-
Weight (KG):
-
435 KG
-
Marketing Type:
-
Hot Product 2024
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
metal cutting mini lathe, bench lathe CZ1340G
-
processing material:
-
Aluminium ,copper,steel, metal,wood
-
Machine Type:
-
Conventional Lathe
-
Function:
-
metal working
-
customized:
-
color,brand,logo,accessories
-
Key word:
-
lathe
-
motro:
-
1100W
-
certificate:
-
CE
Quick Details
-
Max. Length of Workpiece (mm):
-
940 mm
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
36 m'm
-
Range of Spindle Speed(r.p.m):
-
50 - 1200 r.p.m
-
Width of bed (mm):
-
182mm
-
Max. Turned Length (mm):
-
940 mm
-
Spindle Motor Power(kW):
-
1.1
-
Year:
-
2024
-
Place of Origin:
-
China
-
Brand Name:
-
Sumore
-
Model Number:
-
SP2142
-
Voltage:
-
Customer's Requirement
-
Dimension(L*W*H):
-
1780X750X760mm
-
Weight (KG):
-
435 KG
-
Marketing Type:
-
Hot Product 2024
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
metal cutting mini lathe, bench lathe CZ1340G
-
processing material:
-
Aluminium ,copper,steel, metal,wood
-
Machine Type:
-
Conventional Lathe
-
Function:
-
metal working
-
customized:
-
color,brand,logo,accessories
-
Key word:
-
lathe
-
motro:
-
1100W
-
certificate:
-
CE
Products Description

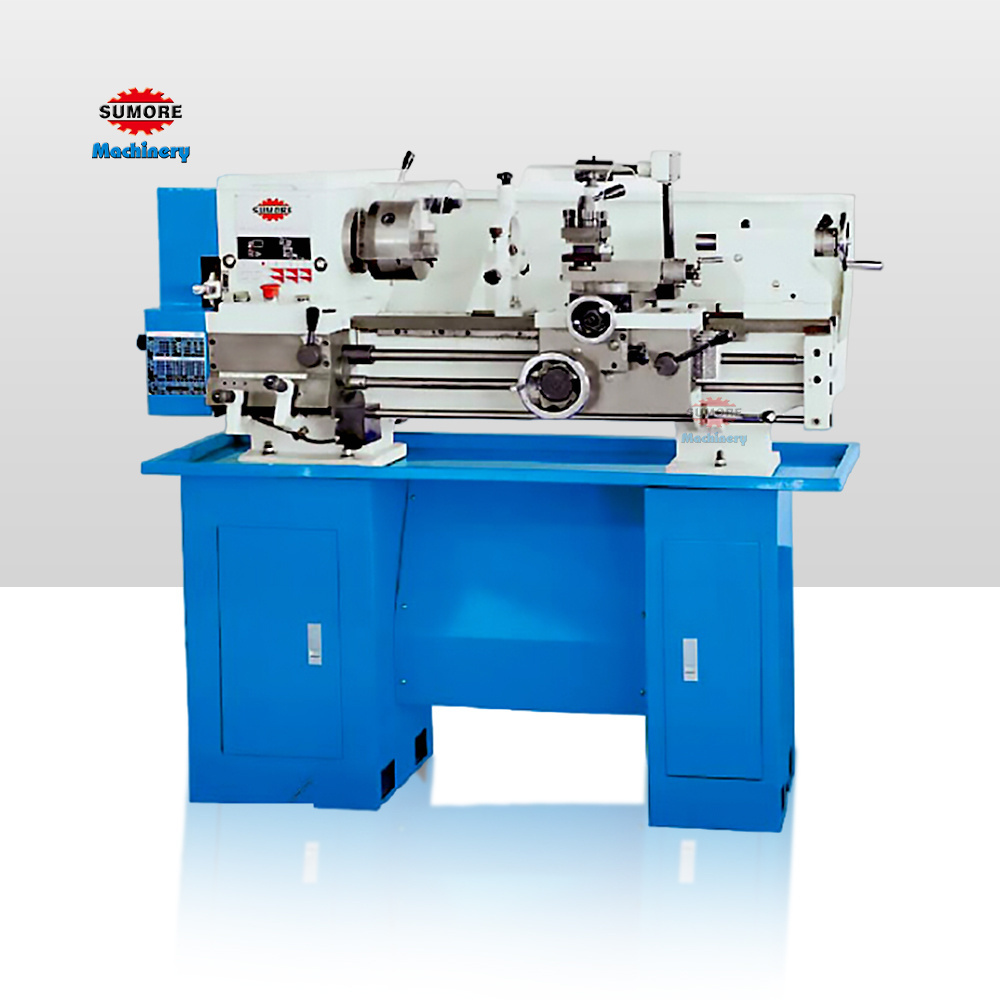

SP2142
SUMORE new product 530mm/940mm
Universal
hobby medium lathe machine 36mm bore metal lathe for sale !!!!!!
Product Paramenters
|
Model
|
SP2142-I
|
SP2142-II
|
|
|
Max. Swing over bed
|
305mm
|
|
|
|
Swing over Carriage
|
173mm
|
|
|
|
Max. Swing over gap
|
440mm
|
|
|
|
Width of bed
|
182mm
|
|
|
|
Distance between centers
|
530mm
|
940mm
|
|
|
Spindle taper
|
MT5
|
|
|
|
Spindle bore
|
36mm
|
|
|
|
spindle speed
|
12 step
|
|
|
|
Range of spindle speed
|
50~1200r/min
|
|
|
|
Range of Imperial thread
|
40kinds(4~112T.P.I)
|
|
|
|
Range of Metric thread
|
15kinds (0.25~7.5mm)
|
|
|
|
Range of feed amount
|
0.12~0.42 (0.0047”~0.0165)
|
|
|
|
Diameter of lead screw
|
φ22(7/8”)
|
|
|
|
Pitch of lead screw
|
3mm or 8T.P.I
|
|
|
|
Saddle travel
|
510mm
|
810mm
|
|
|
Cross slide travel
|
150mm
|
|
|
|
Compound travel
|
90mm
|
85mm
|
|
|
Barrel travel
|
100mm
|
95mm
|
|
|
Barrel diameter
|
32mm
|
|
|
|
Taper of tailstock quill
|
MT3
|
|
|
|
Motor power
|
1.1kw
|
|
|
|
Coolant power
|
0.04(0.055HP)
|
|
|
|
Machine size
|
1420×750×760mm
|
1780×750×760mm
|
|
|
Stand left
|
400×370×700
|
|
|
|
Stand right
|
300×370×700
|
|
|
|
Machine weight (N.W/G.W)
|
365/415
|
385/435
|
|
|
Stand (N.W/G.W)
|
60/65
|
|
|
|
Loading amount
|
24pcs/20’
|
27pcs/20’
|
|
Product detail pictures
1. High Rigid Construction
2. Industrial Level Accuracy
3. Large Range and Variable Spindle Speeds
4. Digital Readout Device Optional
5. Different Worktable Length Optional
6. Considerable Safety Design
7. CE & SGS & ISO Certification
2. Industrial Level Accuracy
3. Large Range and Variable Spindle Speeds
4. Digital Readout Device Optional
5. Different Worktable Length Optional
6. Considerable Safety Design
7. CE & SGS & ISO Certification
