Quick Details
-
Engine Brand:
-
Shangchai
-
Travel Speed:
-
11.17km/h
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
6150*2300*3200mm
-
Drum diameter:
-
431mm
-
Exciting Force:
-
274/190KN
-
Marketing Type:
-
Hot Product 2023
-
Static line load:
-
315N/cm
-
Compaction width:
-
2130mm
-
Wheelbase:
-
3076mm
Quick Details
-
Type:
-
Vibratory Roller
-
Power:
-
103KW
-
Weight:
-
14TON
-
Engine Brand:
-
Shangchai
-
Travel Speed:
-
11.17km/h
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
6150*2300*3200mm
-
Drum diameter:
-
431mm
-
Exciting Force:
-
274/190KN
-
Marketing Type:
-
Hot Product 2023
-
Static line load:
-
315N/cm
-
Compaction width:
-
2130mm
-
Wheelbase:
-
3076mm
Product Show

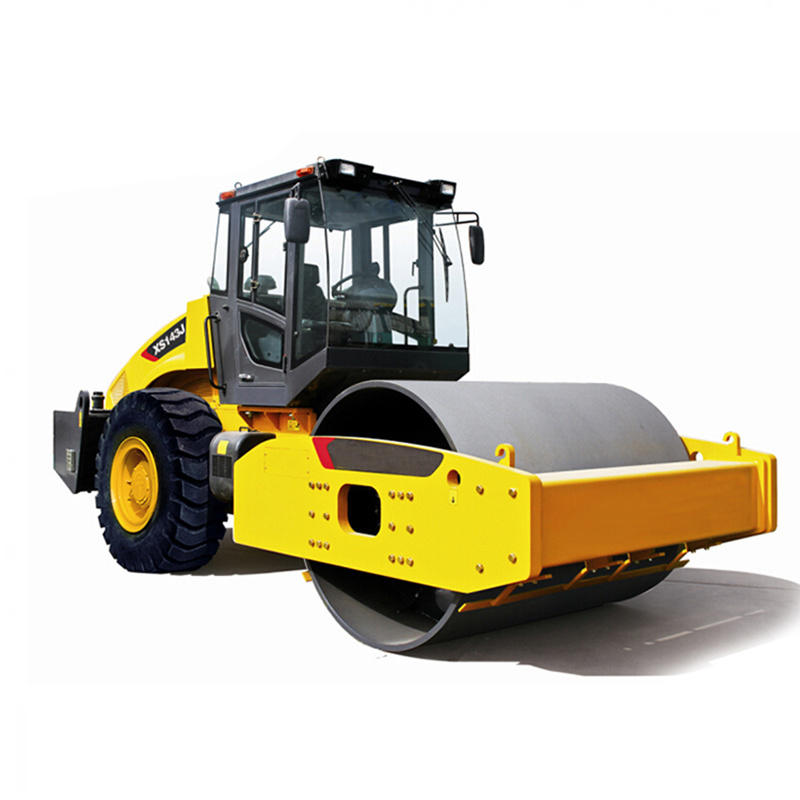

XS143J has a high static line load and exciting force, which is suitable for the compaction operation of pebbles, sandy soil, moraines, blasting rocks and cohesive soil, etc., and also suitable for the compaction of concrete and stable soil foundation materials in various large-scale projects, and its maximum effect depth can reach 1.0m or more. It is an important compaction equipment in the construction of large projects such as highways, railways, mines and ports.
* Using the H series of Shangchai Engine, water-cooled, four-cylinder, four-stroke, direct injection turbocharged, air-to-air cooling low speed diesel engine, large power reserve, energy saving and noise reduction. The transfer box is specially provided by the engine manufacturer to directly drive the hydraulic pump, which changes the previous structure of connecting the vibration and steering double pump through the transmission gearbox at the back of the engine, saving the mechanical transmission parts and reducing the possibility of transmission chain failure. Engine emissions meet China Phase II standards.
* Gearbox with shift synchronizer for easy handling.
* The main clutch adopts a heavy-duty special clutch, which is dry and often combined with single piece friction, reliable performance and good maintainability. The clutch is directly installed on the engine flywheel, and the operating mechanism of the main clutch is the gas-assisted mechanism, which greatly reduces the operating force.
* Double frequency and double amplitude to meet the requirements of different working conditions; Hydraulic vibration system by gear pump, motor composed of open system; The control form is electric control. Ensure the requirement of vibration parameters and the reliability of vibration system.
* The optimized vibration wheel structure and vibration parameters make the compaction surface more flat and the compaction efficiency higher. The fully hydraulic dumpling steering system allows for light and flexible steering. The cross dumpling connection mode ensures sufficient steering Angle and swing Angle.
* Equipped with in-service emergency braking and parking braking. Two sets of independent braking systems ensure reliable braking of the whole machine. The brake control device is a pneumatic force-increase driving mechanism, which makes the operation light and reliable.
Specification
|
ltem
|
|
|
Unit
|
XS143J
|
||
|
Service mass
|
|
|
kg
|
14000
|
||
|
Distributed mass of driving wheel
|
|
|
kg
|
7300
|
||
|
Distributed mass of vibration wheel
|
|
|
kg
|
6700
|
||
|
Static line load
|
|
|
N/cm
|
315
|
||
|
Vibration frequency
|
|
|
Hz
|
28/33
|
||
|
Theoretical amplitude
|
|
|
mm
|
1.9/0.95
|
||
|
Exciting force
|
|
|
kN
|
274/190
|
||
|
Range of speed
|
Forward
|
I
|
km/h
|
2.85
|
||
|
|
|
II
|
km/h
|
5.08
|
||
|
|
|
III
|
km/h
|
11.17
|
||
|
|
Backward
|
I
|
km/h
|
2.88
|
||
|
|
|
II
|
km/h
|
5.02
|
||
|
Wheel base
|
|
|
mm
|
3076
|
||
|
Compaction width
|
|
|
mm
|
2130
|
||
|
Theoretical gradeability
|
|
|
%
|
30
|
||
|
Minimum turn radius
|
|
|
mm
|
6800
|
||
|
Diameter of vibration wheel
|
|
|
mm
|
1523
|
||
|
Minimum ground clearance
|
|
|
mm
|
431
|
||
|
Engine
|
Model
|
|
|
SC4H140.1G2
|
||
|
|
Rated speed
|
|
r/min
|
1800
|
||
|
|
Rated power
|
|
kW
|
103
|
||
|
Overall dimension (length x width x height)
|
|
|
mm
|
6150*2300*3200
|
||
