Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
1485*1150*1300
-
Machine Weight:
-
830 kg
-
Bucket capacity:
-
1070mm/(width)
-
Product name:
-
China Skid Steer / Mini Skid Steer Loader Price For Sale
-
Engine:
-
23hp EPA Briggs & Stratton/Rato engine
-
Lifting Capacity:
-
430KG
-
Displacement cm3/Number of cylinders:
-
688/2
-
Max working height (H3):
-
2504 mm
-
Max Dumping height:
-
1423 mm
-
Rotation speed per minute(rpm):
-
3600
-
Max Dumping Angle:
-
53°
-
Rotating speed (rpm):
-
3600
-
Drive System:
-
Hydraulic four-wheel drive
Quick Details
-
Engine Brand:
-
Other
-
Power:
-
75 KW, 60 KW, 44.7 KW, 37 KW, 15.7 kw, 55 kw, 70 KW, 92 KW
-
Brand Name:
-
HIGHTOP
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
1485*1150*1300
-
Machine Weight:
-
830 kg
-
Bucket capacity:
-
1070mm/(width)
-
Product name:
-
China Skid Steer / Mini Skid Steer Loader Price For Sale
-
Engine:
-
23hp EPA Briggs & Stratton/Rato engine
-
Lifting Capacity:
-
430KG
-
Displacement cm3/Number of cylinders:
-
688/2
-
Max working height (H3):
-
2504 mm
-
Max Dumping height:
-
1423 mm
-
Rotation speed per minute(rpm):
-
3600
-
Max Dumping Angle:
-
53°
-
Rotating speed (rpm):
-
3600
-
Drive System:
-
Hydraulic four-wheel drive
Specification
|
Model
|
HT430
|
|
Lifting Capacity KG
|
430
|
|
Engine Type
|
HONDA HGX690/Briggs Stratton 3864
|
|
Engine Capacity（kw/Hp)
|
16.5/23hp
|
|
Displacement cm3/Number of cylinders
|
688/2
|
|
Rotation speed per minute（rpm)
|
3600
|
|
Maximum torque NM/rpm
|
38.6/2500
|
|
Cooling method
|
Air-cooled
|
|
Fuel/Fuel tank capacity
|
Gasoline 95#/20L
|
|
Drive System
|
Hydraulic four-wheel drive
|
|
Speed（km/h)
|
0-5.5(By Scale）
|
|
Enhancement of capabilities（kg)
|
350
|
|
Traction force（kg）
|
409
|
|
Hydraulic drive system（L/bar)
|
35/200
|
|
Hydraulic oil tank capacity（L）
|
40
|
|
Standard Tires
|
22*11.00-8
|
|
Electrical system（V）
|
12
|
|
Battery Capacity（Ah)
|
45
|
|
Braking System
|
Hydraulic enclosed brake
|
|
Drive
|
Skid steering
|
|
Hydraulic Cylinder Thrust（KG）
|
600
|
|
Rising Force（KG）
|
300
|
|
Overall Dimensions（MM）
|
1525*1050*1258
|
|
Weight（KG）
|
830
|
Product Description

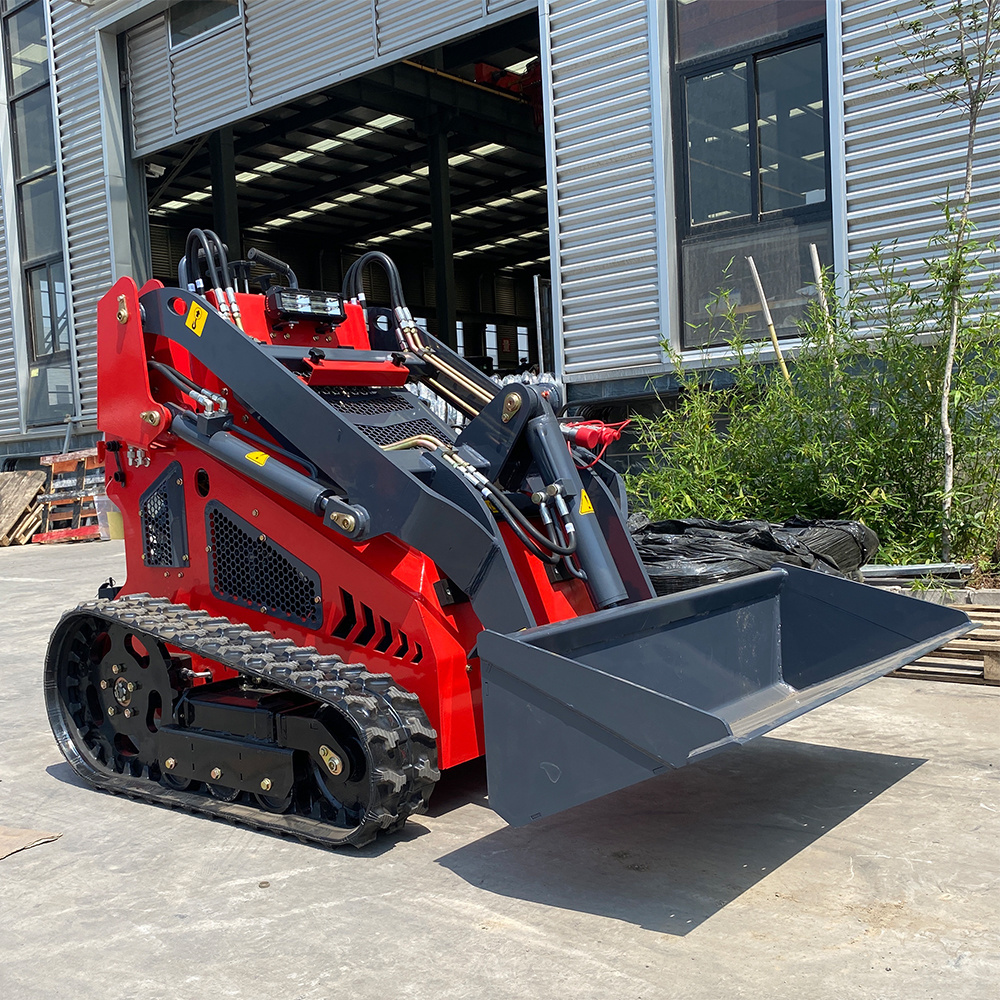

Mini Skid Steer Loader with Briggs & Stratton EPA engine
HIGHTOP HT430 mini loader skid steer loader can change different attachments at job site, it can change just needs a few of minutes , to adapt to different working environment and job contents In this way, shoveling, stacking, lifting, digging, drilling, crushing, grasping,pushing, loosening soil, trenching, road cleaning can be respectively carried out. An auxiliary trailer can load all attachments to job site, do whatever you want to do.
It can be used for site clearing and project closing after large engineering machinery. The 4 in 1 bucket would better choice of attachment for this job, which is with pushing, shoveling,leveling and grabbing 4 functions.
Attachments can be: digger, auger, trencher, sweeper, backhoe, high dump bucket, tiller, lawn mower, hydraulic grapple fork, fork, 4 in 1 bucket, snow blower, leveler, angle blade, mixer, hydraulic breaker, trench filler, lawn aerator, sweeper with bucket, stone bucket, trailer, standard bucket, ripper, stump grinder, wood chipper, multi-function tool etc.
Please contact Kerry Chen whatsapp: +0086 15898612525(24 hours online),
It can be used for site clearing and project closing after large engineering machinery. The 4 in 1 bucket would better choice of attachment for this job, which is with pushing, shoveling,leveling and grabbing 4 functions.
Attachments can be: digger, auger, trencher, sweeper, backhoe, high dump bucket, tiller, lawn mower, hydraulic grapple fork, fork, 4 in 1 bucket, snow blower, leveler, angle blade, mixer, hydraulic breaker, trench filler, lawn aerator, sweeper with bucket, stone bucket, trailer, standard bucket, ripper, stump grinder, wood chipper, multi-function tool etc.
Please contact Kerry Chen whatsapp: +0086 15898612525(24 hours online),
