Quick Details
-
Dimension (L*W*H):
-
186x280x300mm
-
Weight:
-
25KG, 25kg
-

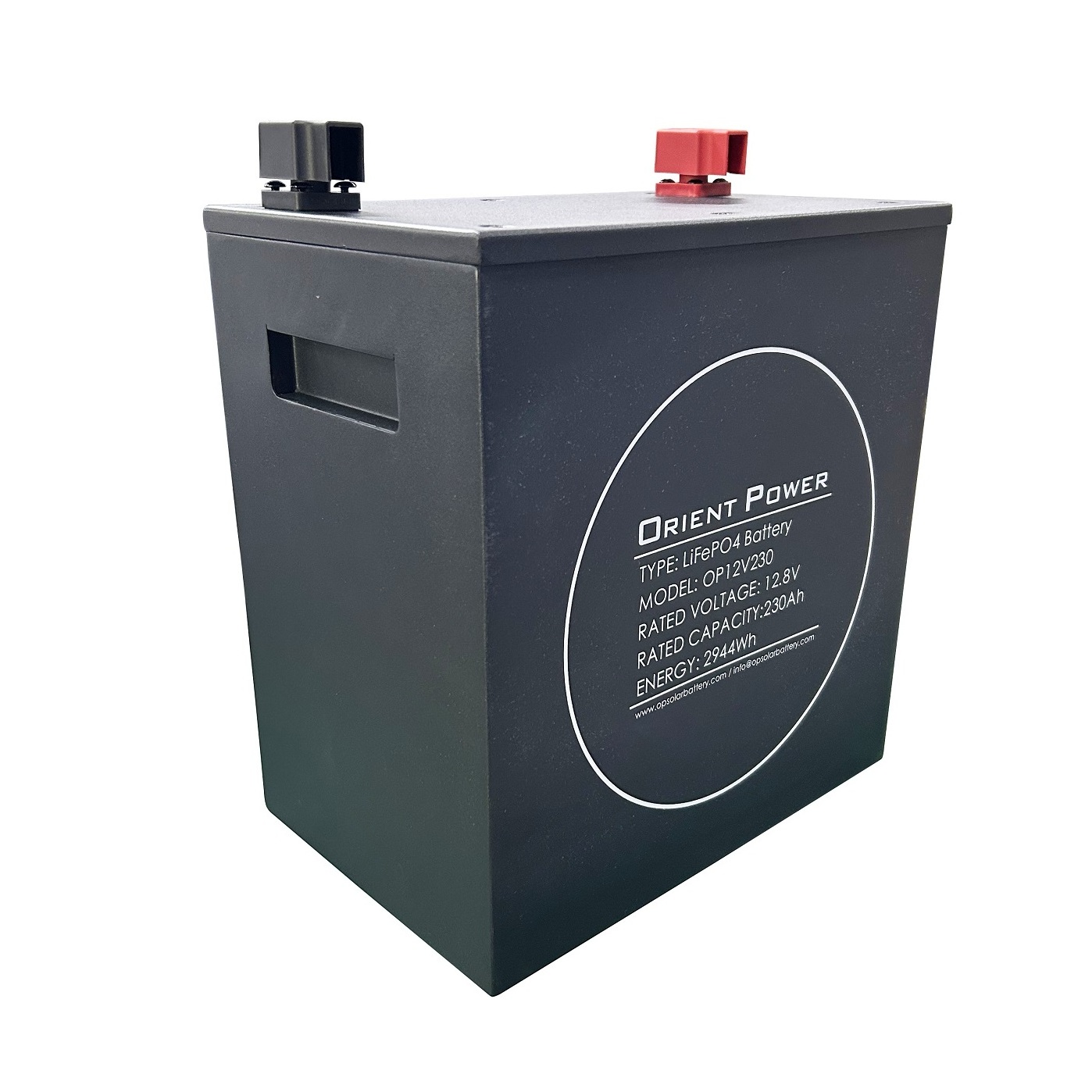

Product name:
-
Lithium RV Battery
-
Cycle life:
-
7000 times
-
Size:
-
186x280x300mm
-
Application:
-
Solar system
-
Voltage:
-
12.8V
-
Capacity:
-
230AH
-
Warranty:
-
10 years
-
Material:
-
Steel
-
Battery cell:
-
3.2V 230Ah LifePO4 Cell
Quick Details
-
Model Number:
-
OP12V230
-
Brand Name:
-
Orient power
-
Place of Origin:
-
Guangdong, China
-
Dimension (L*W*H):
-
186x280x300mm
-
Weight:
-
25KG, 25kg
-
Product name:
-
Lithium RV Battery
-
Cycle life:
-
7000 times
-
Size:
-
186x280x300mm
-
Application:
-
Solar system
-
Voltage:
-
12.8V
-
Capacity:
-
230AH
-
Warranty:
-
10 years
-
Material:
-
Steel
-
Battery cell:
-
3.2V 230Ah LifePO4 Cell
Specification
|
ELECTRICAL PERFORMANCE
|
|
|
CHARGE PERFORMANCE
|
|
||||
|
Model
|
OP12V230
|
|
Recommended Charge Current
|
50 A
|
||||
|
Nominal Voltage
|
12.8V
|
|
Maximum Charge Current
|
200 A
|
||||
|
Nominal Capacity
|
230 Ah
|
|
Recommended Charge Voltage
|
14.6V
|
||||
|
Energy
|
2944 Wh
|
|
BMS Charge Cut-Off Voltage
|
> 14.6V
|
||||
|
Resistance
|
< 50mΩ
|
|
Reconnect Voltage
|
< 14.4V
|
||||
|
Self Discharge
|
< 3%
|
|
Balancing Cell Voltage
|
> 3.45V (Cell
difference >50mV)
|
||||
|
Cells
|
3.2V 230Ah Cells
|
|
|
|
||||
|
|
|
|
|
|
||||
|
MECHANICAL PERFORMANCE
|
|
|
DISCHARGE PERFORMANCE
|
|
||||
|
Dimension (LxWxH)
|
186x280x300mm
|
|
Maximum Continuous Dishcarge Current
|
200 A
|
||||
|
Approx. Weight
|
25 Kg
|
|
BMS Discharge Cut-Off Current
|
205 A (1000ms)
|
||||
|
Terminal Type
|
M8x2
|
|
BMS Discharge Cut-Off Voltage
|
<10V(3s)
|
||||
|
Terminal Torque
|
106 ~ 132 in-lbs
( 12 ~ 15 N·m )
|
|
Reconnect Voltage
|
>10.8 V
|
||||
|
Case Material
|
Steel
|
|
Short Circuit Protection
|
400 μs
|
||||
|
Recommended Connection Wire
|
2 AWG
|
|
|
|
||||
|
|
|
|
|
|
||||
|
TEMPERATURE PERFORMANCE
|
|
|
|
|
||||
|
TEMPERATURE PERFORMANCE
|
4 pcs
|
|
Storage Temperature
|
- 5 ~ 35 °C
|
||||
|
Discharge Temperature
|
- 20 ~ 65 °C
|
|
BMS High Temperature Cut-Off
|
65 °C
|
||||
|
Charge Temperature
|
- 5 ~ 55 °C
|
|
Reconnect Temperature
|
60 °C
|
||||
