Quick Details
-
Model Number:
-
PFL-04XS
-
Type:
-
Wire processing machine
-
Stripping length:
-
0-100mm
-
OD:
-
&25
-
Power cord plug:
-
European,USA,UK,Australia plug and etc.
-
Driven Type:
-
Electric and pneumatic
-
Wire Gauge Range:
-
16-150.0mm2
-
Cutting length:
-
1-350m
-
Power:
-
220V/110V
-
Automation Grade:
-
Automation Grade
Quick Details
-
Usage:
-
Stripping
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
STRONG
-
Model Number:
-
PFL-04XS
-
Type:
-
Wire processing machine
-
Stripping length:
-
0-100mm
-
OD:
-
&25
-
Power cord plug:
-
European,USA,UK,Australia plug and etc.
-
Driven Type:
-
Electric and pneumatic
-
Wire Gauge Range:
-
16-150.0mm2
-
Cutting length:
-
1-350m
-
Power:
-
220V/110V
-
Automation Grade:
-
Automation Grade
Product Description
Product Description

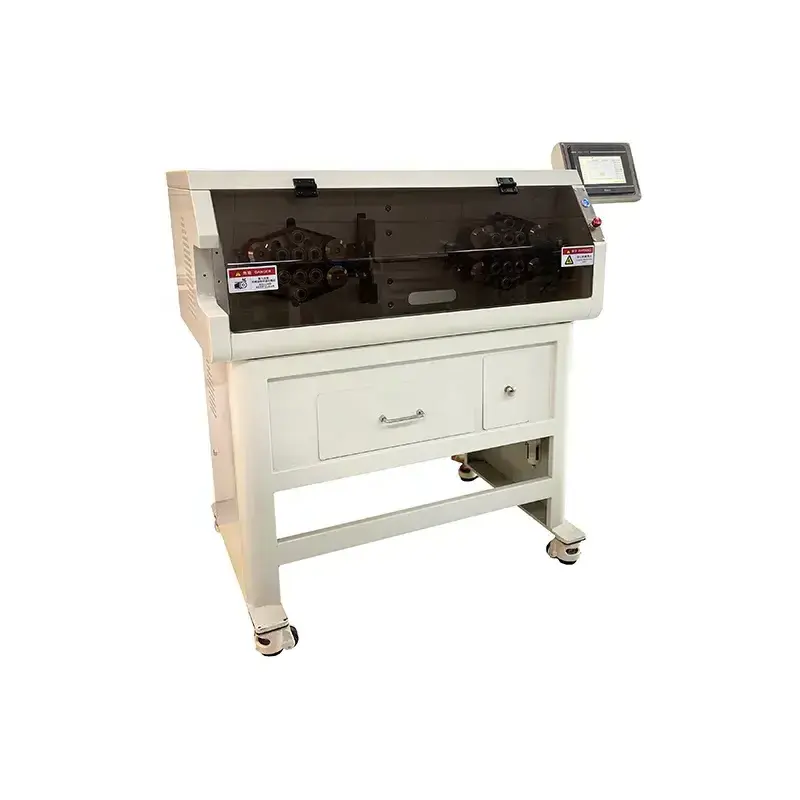

Automatic Full Computer Wire Stripping Machine adopt the advanced automation technology from Japan,Taiwan.
It is a kind of numerical control equipment
Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps, toys, and other various products of wire processing.
Optimal stripped wire PVC/teflon/silica gel line /. Glass fiber, etc.
1.The fully automatic large cable cutting stripping machine is a new generation of wire harness processing equipment, using servo
motor for drivers. 2.Adopt advanced man-machine interface, humanized design, easy to operate. 3.The processed wire harness has the
same length, beautiful appearance and good effect. 4.Blade: High-quality imported high-speed steel, or tungsten steel.
5.Efficiency: 600-2000pcs/H depends on the size and length of cable. 6.Drive mode: 8-wheels drive,total 28 wheels. 7.Feeding node:
Belt feeding, no embossing and scratches on the cable. 8.Special cables, special requirements can be customized, need to send
sample for testing. 9.Suitable for power industry, electric control cabinet, battery box line, new energy vehicle wiring harness,
charging pile wiring harness, charging gun wiring harness, BV hard wire, BVR soft wire, etc.
motor for drivers. 2.Adopt advanced man-machine interface, humanized design, easy to operate. 3.The processed wire harness has the
same length, beautiful appearance and good effect. 4.Blade: High-quality imported high-speed steel, or tungsten steel.
5.Efficiency: 600-2000pcs/H depends on the size and length of cable. 6.Drive mode: 8-wheels drive,total 28 wheels. 7.Feeding node:
Belt feeding, no embossing and scratches on the cable. 8.Special cables, special requirements can be customized, need to send
sample for testing. 9.Suitable for power industry, electric control cabinet, battery box line, new energy vehicle wiring harness,
charging pile wiring harness, charging gun wiring harness, BV hard wire, BVR soft wire, etc.
Application
Machine Parameter
|
Wire Cross-Section Range:
|
1~150.0mm2
|
|
|
|
Available Jacket Wire Diameter:
|
5~23mm
|
|
|
|
Conduit Diameter:
|
max 25mm
|
|
|
|
Cutting Length:
|
1~400m
|
|
|
|
Cutting Tolerance:
|
±0.2mm
|
|
|
|
Stripping Length:
|
Head 1~100mm, Tail 1~100mm
|
|
|
|
Stripping Length for
external jacket |
Head 1~800mm, Tail 1~150mm
|
|
|
|
Speed:
|
900pcs/h (for cutting length 1000mm)
|
|
|
|
Display Way:
|
English 7" touch screen
|
|
|
|
Drive Mode:
|
8 rollers & Motor ball screw drive
|
|
|
|
Blade Material:
|
High speed steel
|
|
|
|
Appropriate Wire:
|
Electrical wires,PVC/Silica gel line/Glass fiber cables
|
|
|
|
Power Supply:
|
220V/50Hz 110V/60Hz
|
|
|
|
Air Pressure:
|
0.8Mpa
|
|
|
|
Power Rating:
|
2300W
|
|
|
|
Measurement:
|
1060*640*1240mm
|
|
|
|
Weight:
|
235kg
|
|
|
Packing & Delivery
Packing:
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Delivery:
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
