Name: PLATFORM
Brand: MHICRANE
Original: China
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
30KW
-
Min. Lifting Height:
-
50cm
-
Table Size:
-
customized
-
Overall Dimensions:
-
customized
-
Weight:
-
20 kg
-
Product name:
-
60-200 ton High Lifting Platform Hydraulic Work Platform
-
Loading capacity:
-
60-200t
-
Platform size:
-
customized
-
Used for:
-
unloading material
-
Power source:
-
380v, 50hz, 3 phase
-
Lifting angle:
-
30-60 degree
-
Lifting method:
-
hydraulic
-
Hydraulic cylinder:
-
national famous brand or improted brand
-
Dump:
-
rear or side dump
-
Hydraulic cylinder qty:
-
1/2/3
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MHICRANE
-
Power:
-
30KW
-
Min. Lifting Height:
-
50cm
-
Table Size:
-
customized
-
Overall Dimensions:
-
customized
-
Weight:
-
20 kg
-
Product name:
-
60-200 ton High Lifting Platform Hydraulic Work Platform
-
Loading capacity:
-
60-200t
-
Platform size:
-
customized
-
Used for:
-
unloading material
-
Power source:
-
380v, 50hz, 3 phase
-
Lifting angle:
-
30-60 degree
-
Lifting method:
-
hydraulic
-
Hydraulic cylinder:
-
national famous brand or improted brand
-
Dump:
-
rear or side dump
-
Hydraulic cylinder qty:
-
1/2/3
Product Description
Product Application
Description of
60-200 ton High Lifting Platform Hydraulic Work Platform
The
60-200 ton High Lifting Platform Hydraulic Work Platform
consists of a main beam of H-shaped steel flanked on each side and two layers of intersected steel beam in its middle section. The checkered plate is used on its surface. The platform is featured of strong stiffness and strength.
The hydraulic cylinder is equipped with multi-level telescopic structure and imported sealing ring, which contributes to the high safety coefficient and stable lifting performance of the platform. Save the construction cost.
High quality hydraulic valves and components have been adopted, and the core valves are imported, so as to ensure the long-term reliable operation.

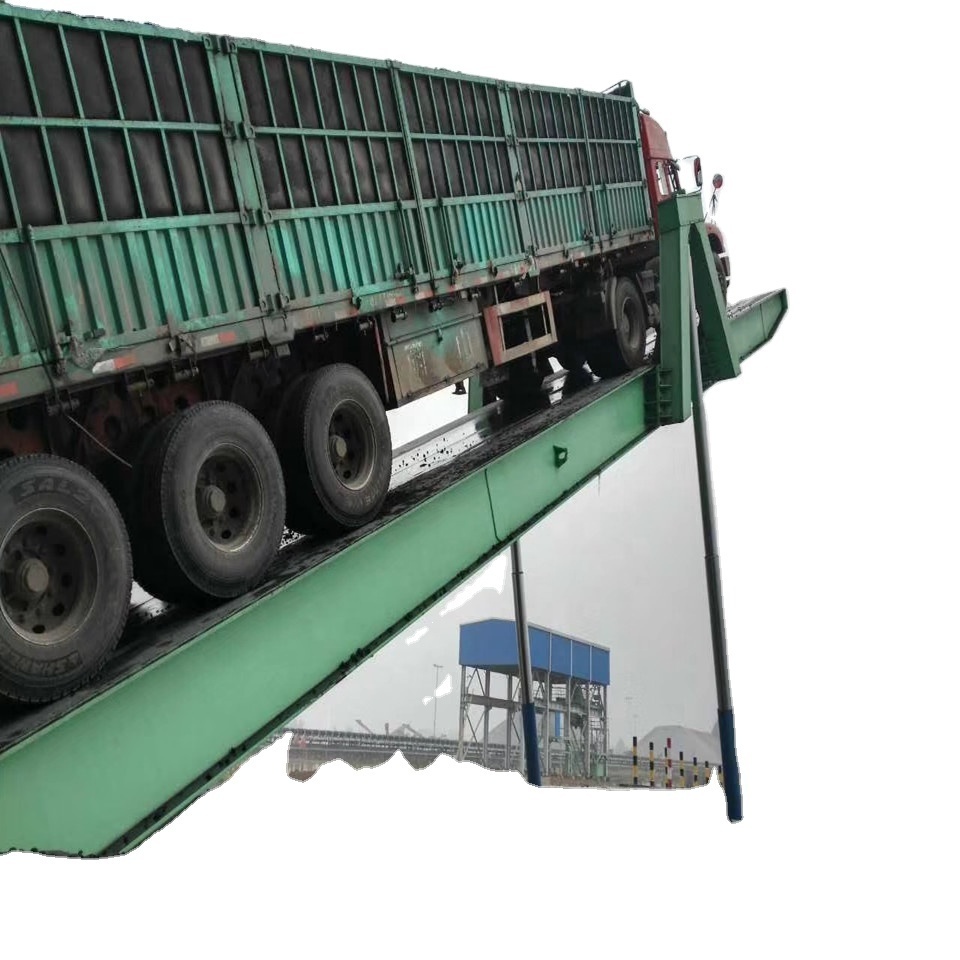

Platform Hydraulic for Trucks Unloading makes unloading more easier, more convenient and more efficient.
Before using
60-200 ton High Lifting Platform Hydraulic Work Platform
Human labor is adopted to unload bulk materials from truck, featuring long working time, poor working environment, low working efficiency, large working intensity, and resulting in difficult management.
Take a factory which produces produtcs of 1000 tons per day as an example, the daily delivery capacity shall be carried by 30 trucks of heavy loads, so it needs 12 workers for loading and unloading work, which brings about annual human costs of RMB 576 thousand (12*0.4*12=57.6). Furthermore it is difficult to manage so many workers handling and prone to industrial accidents.
After using
60-200 ton High Lifting Platform Hydraulic Work Platform
It takes about 12 minutes to unload bulk materials for each truck (the time for truck passing the truck scale). One or two workers are needed to operate. High working efficiency but low costs obtained.
It does not keep the truck drivers waiting for a long time, so they prefer to make delivery to these enterprises which adopt the hydraulic flap than those without hydraulic truck unloading platform. For example, if an enterprise in grain process industry adopts a hydraulic truck unloading platform, it can acquire grain at a lower price.
A hydraulic truck unloading platform can unload material of 30-150 tons, featuring low input power and stable performance. Quick return of capital investment contributes higher economic profit for enterprises.
The labor intensity of workers has been reduced effectively, the working environment has been improved, and the company management has been effectively enhanced.
Specifications
|
Loading capacity
|
60-200t
|
|
Lifting angle
|
30-60 degree
|
|
Dump method
|
rear dump, side dump
|
|
Platform size
|
10*3 12*3 15*3 18*3 20*3 or customized
|
|
Hydraulic cylinder qty
|
1/2/3
|
|
Power source
|
3 phase, 380v, 50hz, or as agreed
|
Processing
Certifications
Detailed Images
Machine Parts
Main Parts
Name:
HYDRAULIC PUMP
Brand: MHICRANE
Original: China
Machine Parts
Name:
WHEEL STOPPER
Brand:
MHICRANE
Original:
China
Machine Parts
Name: HYDRAULIC CYLINDER AND SUPPORTING BRACING
Brand: MHICRANE
Original: China
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Our service
Pre-Sales Service
1. We have the specialists to introduce domestic and foreign crane industry standards, introduce the company profiles and the product features for the user to select quality and cheap products and provide decision-making materials.
2. Technical Programs, to send professional technical and business personnel for technical exchanges, business issues. Invite your team for factory inspection instruction. Timely provide the performance, features, design drawings and a variety of parameters of the product, and actively cooperate with your company to choose a satisfactory product manufacturers. Even if you didn't choose our products due to other factors, we would also like to provide technical advice for you to purchase advanced technology, reasonable prices, reliable performance of the product.
The Sale of Services
1. Provide the most suitable Technical Solution to fully meet their requirements.
2. select the best matching parts manufacturers, to meet the performance requirements, and the future maintenance.
3. during the manufacturing process, do well with the arrangements of the inspection drawings, product supervision, inspection and acceptance of various stages of work, so that all the work can be carried out in an orderly manner before the shipment.
After-Sales Service.
1. during the installation and commissioning of the equipment, we'll send the experienced senior engineer in person to the site to guide the installation and commissioning to ensure the normal operation of the product smoothly, for free.
2. free training of operation and maintenance. Long-term technical support for the use and maintenance. Provide 24 hours maintenance support to ensure the operation during use.
We will not only provide users with qualified products, but also the high-quality services to left a deep impression to the customers.
Pre-Sales Service
1. We have the specialists to introduce domestic and foreign crane industry standards, introduce the company profiles and the product features for the user to select quality and cheap products and provide decision-making materials.
2. Technical Programs, to send professional technical and business personnel for technical exchanges, business issues. Invite your team for factory inspection instruction. Timely provide the performance, features, design drawings and a variety of parameters of the product, and actively cooperate with your company to choose a satisfactory product manufacturers. Even if you didn't choose our products due to other factors, we would also like to provide technical advice for you to purchase advanced technology, reasonable prices, reliable performance of the product.
The Sale of Services
1. Provide the most suitable Technical Solution to fully meet their requirements.
2. select the best matching parts manufacturers, to meet the performance requirements, and the future maintenance.
3. during the manufacturing process, do well with the arrangements of the inspection drawings, product supervision, inspection and acceptance of various stages of work, so that all the work can be carried out in an orderly manner before the shipment.
After-Sales Service.
1. during the installation and commissioning of the equipment, we'll send the experienced senior engineer in person to the site to guide the installation and commissioning to ensure the normal operation of the product smoothly, for free.
2. free training of operation and maintenance. Long-term technical support for the use and maintenance. Provide 24 hours maintenance support to ensure the operation during use.
We will not only provide users with qualified products, but also the high-quality services to left a deep impression to the customers.
Packing & Delivery
|
Packaging
|
|
|
|
Name
|
PLATFORM, WHEEL STOPPER
|
|
|
|
|
|
|
Packaging Details
|
nude pack for export, in 40OT
|
|
|
Packaging
|
|
|
|
Name
|
Platform Hydraulic for Trucks Unloading
|
|
|
Weight
|
|
|
|
Packaging Details
|
nude pack
|
|
