Quick Details
-
Brand Name:
-
APT
-
Use:
-
FTTH
-
Warranty Time:
-
3years
-
Product name:
-
CWDM 4 8 16 18 Channel Multiplexer
-
Application:
-
FTTTH FTTTB FTTTX
-
Wavelength:
-
1260~1650nm
-
Fiber Type:
-
G652D/G657A1/G657A2
-
Connector Type:
-
SC FC LC ST
-
Certification:
-
CE/ROHS/ISO9001
-
Warranty:
-
3 Yeas
-
Insertion Loss:
-
IL<0.5db
-
Brand:
-
OEM Avaliable
-
MOQ:
-
10 Pcs
Quick Details
-
Type:
-
Fiber Optic Multiplexer
-
Model Number:
-
Fiber Optic Multiplexer
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
APT
-
Use:
-
FTTH
-
Warranty Time:
-
3years
-
Product name:
-
CWDM 4 8 16 18 Channel Multiplexer
-
Application:
-
FTTTH FTTTB FTTTX
-
Wavelength:
-
1260~1650nm
-
Fiber Type:
-
G652D/G657A1/G657A2
-
Connector Type:
-
SC FC LC ST
-
Certification:
-
CE/ROHS/ISO9001
-
Warranty:
-
3 Yeas
-
Insertion Loss:
-
IL<0.5db
-
Brand:
-
OEM Avaliable
-
MOQ:
-
10 Pcs
Products Description

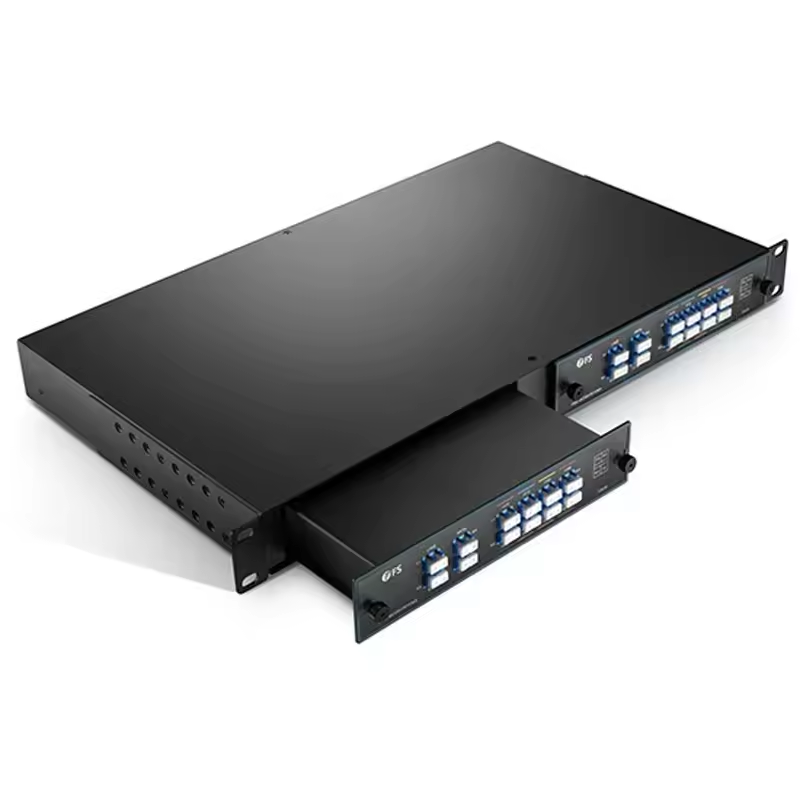

FMU-1UFMX-N mounts to standard EIA19'' rack rails, holding up to 2 units FMU Plug-in Module. This chassis consists of SPCC material, which provides high degree of protection and corrosion-resistant, to protect inside Mux/Demux Modules well. The rounded corner can also eliminate accidental injury or damage to installers.
Features
* Low Insertion Loss
* High Channel Isolation
* Optical path epoxy free
* Excellent thermal stability and reliability
* telcordia GR-1221 Compliance and RoHS Environmental Protection Standard
Application
* Add /Drop
* CATV Fiber Optic System
* Metro/Access Network
* DWDM Networ
*Fiber Optic Amplifier
Features
* Low Insertion Loss
* High Channel Isolation
* Optical path epoxy free
* Excellent thermal stability and reliability
* telcordia GR-1221 Compliance and RoHS Environmental Protection Standard
Application
* Add /Drop
* CATV Fiber Optic System
* Metro/Access Network
* DWDM Networ
*Fiber Optic Amplifier
Details Images
Specification
|
Part Number
|
FMU-1UFMX-N
|
|
Slot Count
|
2-slot
|
|
Enclosure Type
|
Rack Mountable
|
|
Rack Mount Type Material
|
Cold Rolled Steel
|
|
Net Weight
|
3.2kg (7lb)
|
|
Dimensions (H×W×D)
|
1.73"×18.97"×10.28" (44×481.8×261.2mm)
|
|
Parameters
|
1x2
|
1x4
|
1x8
|
1x16
|
|||
|
Center Wavelength(nm)
|
ITU,ITU+1
|
|
|
|
|||
|
Passband（nm）
|
ITU±6.5
|
|
|
|
|||
|
Operating Wavelength（nm)
|
1460~1620 or 1260~1620
|
|
|
|
|||
|
Channel Space(nm)
|
20
|
|
|
|
|||
|
Fiber Type
|
SMF-28e or customer specified
|
|
|
|
|||
|
1L(dB)(P/A Grade)
|
0.7/1.0
|
1.4/1.7
|
2.0/2.5
|
3.5/4.0
|
|||
|
Isolation (dB) Adjacent Channel
|
30
|
|
|
|
|||
|
Isolation (dB) NON-Adjacent Channel
|
50
|
|
|
|
|||
|
Ripple(dB)
|
0.3
|
0.4
|
0.5
|
0.5
|
|||
|
PDL(dB)
|
0.2
|
|
|
|
|||
|
PMD(ps)
|
0.1
|
|
|
|
|||
|
RL(dB)
|
45
|
|
|
|
|||
|
Directivity (dB)
|
50
|
|
|
|
|||
|
Maximum Optical Power (mw)
|
500
|
|
|
|
|||
|
Operating Temperature(℃）
|
-40~85
|
|
|
|
|||
|
Storage Temperature(℃）
|
-40~85
|
|
|
|
|||
|
Box Package (mm)
|
100*80*10
|
|
140*115*18
|
|
|||
|
LGX package
|
1U ,2U
|
|
|
|
|||
|
19'' Rack mount package
|
1U
|
|
|
|
|||
