Quick Details
-
voltage:
-
12V
-
Material:
-
DT4
-
Product name:
-
Clutch
-
Type:
-
Electromagnetic
Quick Details
-
Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Food & Beverage Shops
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Lixin
-
voltage:
-
12V
-
Material:
-
DT4
-
Product name:
-
Clutch
-
Type:
-
Electromagnetic

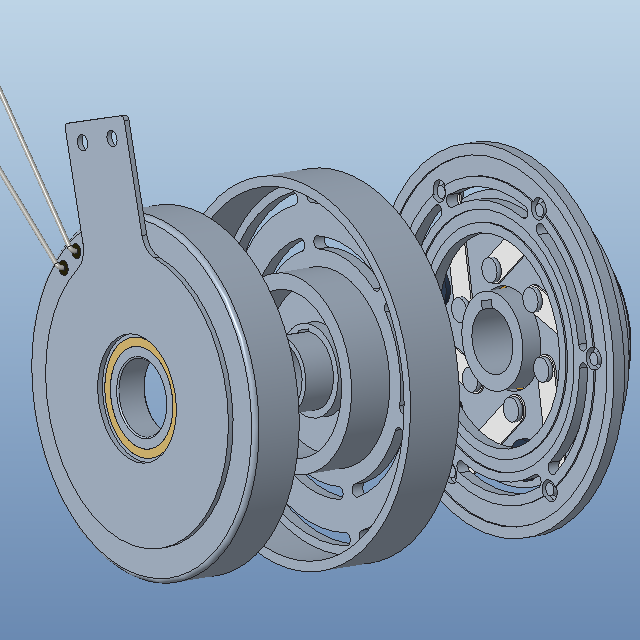

Electric PTO Clutch
NEW Ogura MA-7FSP Electric Clutch 12 Volt DC
Airflow #A40032
Henderson #51873
Swenson #04138-017-00
Hi-Way #41719
Meyer #61167
Fisher #9207
Western #65212
Hiniker #80302223, #80302146
Ogora #515609
Boss #PMV0107, #PMV1013
Monroe #00069497, #05050107
Down Easter #SPN104C
Torwell #E22
1.00" I.D. bore
3 hole
110 FT/LB’s
Although 12 volt is the most common, 24 volts can also be made available. Depending upon the quantity, other specialty voltages can be made. This clutch is 12 volt
Specifications: Static Torque = 110 Foot pounds, Bore size (shaft hole) = 1", Output = hub, Ref Pitch Diameter = 3.63 inches, Weight = 10 lbs.
To help prevent failure from both vibration and outside contaminants, all coils are sealed in the coil shell with a high temperature epoxy coating.
