Quick Details
Quick Details
-
Brand Name:
-
HW
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-

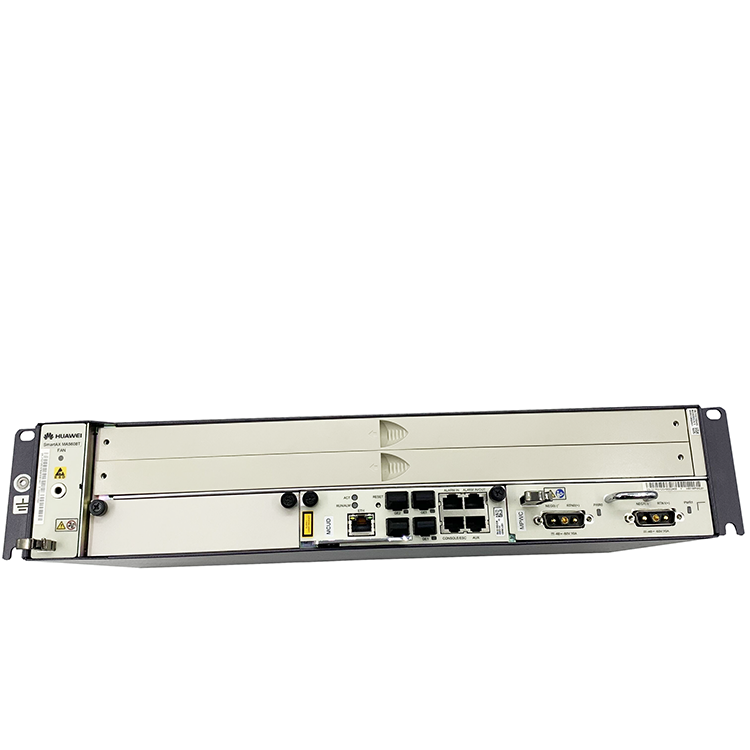

SmartAX MA5608T
SmartAX MA5608T OLT is one of telecom operator-class Gigabit Passive Optical Network (GPON/EPON) Optical Line Terminal for large-scale aggregation and access networking.
This is the world first OLT which integrates the functionality of the aggregation switch and edge router. It can provide high-density GPON, 10GPON and Ethernet P2P optical access, triple-play service, TDM/ATM/Ethernet leased line service for business customers
& mobile backhaul with high reliability and high precision clock, and high-density GE/10GE interfaces for cascading remote access
equipment. MA5600T support to simplify network architecture, to improve network reliability and lower TCO essentially
It is usually equipped with GPFD GPBD GPBH service card MCUD1 /MUCD main control card AC or DC power module. ( There are B+ and C+ SFP for service card. C+ SFP cover B+ SFP)
Specifications
| Model No. | MA5680T | MA5683T | MA5608T |
| Dimension: | 490*275.8*447.2mm | 442*283.2*263mm | 442*233.5*88mm |
| Operating Environment | Temperature: -25℃~+55℃ Humidity:5%~95% (non-condensing) | Temperature: -40℃~+65℃ Humidity:5%~95% (non-condensing) | Temperature: -40℃~+65℃ Humidity:5%~95% (non-condensing) |
| Power Supply Parameters | -48V DC input Supports dual power protection Working Voltage range -38.4V~-72V | -48V DC input Supports dual power protection Working Voltage range -38.4V~-72V | -48V DC input Supports dual power protection Working Voltage range -38.4V~-72V Support 220V / 110V AC input |
| Backplane Exchange capacity | 3.2Tbit/s | 1.5Tbit/s | 720Gbit/s |
| Control Board Exchange Capacity | 1920 Gbit/s | 960Gbit/s | 512Gbit/s |
| Access Capacity | 128*10G EPON 64*10G GPON 128*EPON 256*GPON 768*GE | 48*10G EPON 24*10G GPON 48*EPON 96*GPON 288*GE | 16*10G EPON 8*10G GPON 16*EPON 32*GPON 96*GE |
| Access Type | Upstream interface: 10GE optical, GE optical/electricity Business interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface | ||
