Quick Details
-
Brand Name:
-
EXO waste oil burner
-
Product name:
-
diesel burner / incinerator burner
-
Model:
-
YB-03 Waste oil burner
-
Color:
-
Classic silver or do as customers' requirement
-
Oil consumption:
-
2 - 3 (KG/Hour)
-
Output heat power:
-
15-35 (KW)
-
Output Heat:
-
15,000-32,000 (kcal / h)
-
Fuels:
-
Kinds of oils, waste oils and normal oils
-
Voltage:
-
110V / 220V / 230V / 240V / 380V
-
After Warranty Service:
-
Video technical support
Quick Details
-
Type:
-
Oil Burner
-
Weight (KG):
-
28
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EXO waste oil burner
-
Product name:
-
diesel burner / incinerator burner
-
Model:
-
YB-03 Waste oil burner
-
Color:
-
Classic silver or do as customers' requirement
-
Oil consumption:
-
2 - 3 (KG/Hour)
-
Output heat power:
-
15-35 (KW)
-
Output Heat:
-
15,000-32,000 (kcal / h)
-
Fuels:
-
Kinds of oils, waste oils and normal oils
-
Voltage:
-
110V / 220V / 230V / 240V / 380V
-
After Warranty Service:
-
Video technical support
Waste oil burner system /used vegetable oil burner for steam boiler
Application:
| Fuels |
waste oil calorific value between 8000-10,000Kcal,no solidification,no volatility,no water,is available to use.
such as:
used engine oil,used crankcase oil
used cooking oil,used transmission oil used hydraulic oil,used synthetic oil used mixed oil,used vegetable oil used diesel oil,used tyre pyrolysis oil waste machine shop cutting oil used grades #1,#3,#4 heating oils note:regular oils,such as diesel are also available, |
| Application | Various: boiler,furnace,oven , air heater,spray booth etc |

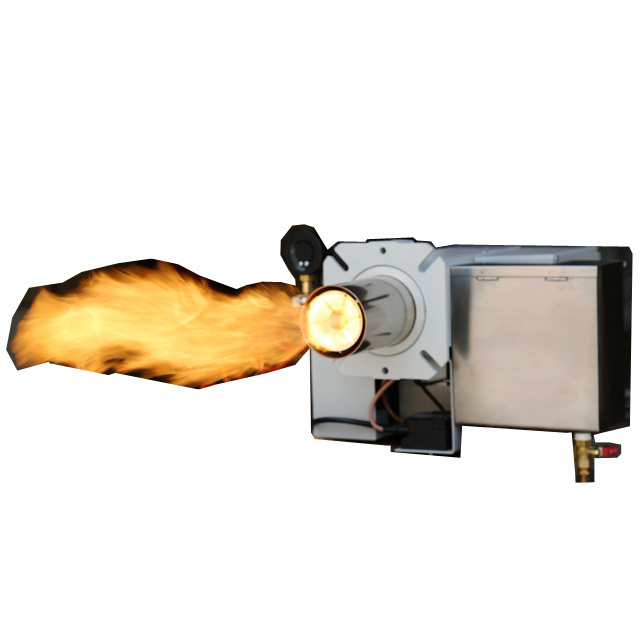

Pictures of waste oil burner
Specifications of the waste oil burner :
| Model | B-03 waste oil burner |
| Oil consumption | 2 - 3 (KG/Hour) |
| Output heat power | 15-35 (KW) |
| Output heat | 15,000-32,000(KCal/h) |
| Distance from fire gun to flange | 173mm |
| Fire gun dia. | 90mm |
| Nozzle(s) | 1 x 0.8 (mm) |
| Compressed Air Pressure | 0.05-0.1MPa |
| Voltage | 220V/50Hz & 110V/60Hz both available |
Waste oil burner packing:
1. Sea packing: Plywood box with foam in protection;
2. Express packing: carton box with foam in protection.
3. For large quantity: carton box with foam in protection + big plywood box
4. We could also pack the oil burner as your requirements
Packing Pictures:
The buyers often ask about the waste oil burner:
1. Are you a manufacturer or trade company?
We are manufacturer and we have our own trade company.
2. Do you have any certification?
Yes. All of our products have been CE approved.
3. The minimum order?
1 set.
If we have stocks, we will send out the products within 1 week after received the payment.
4. The different voltage can use it?
Yes.
Generally, our stocks’ voltage is 220v. Please inform us if you need 120v or other.
5. What should I do when I received the products?
Check carefully. If any damage, please take a video or some photos at first and timely feedback to us.
6. Your products’ warranty?
One year and we could supply technical service for ever.
7. Can I visit your factory?
Of cause. Our factory is in Yantai of Shandong Province. You could fly to YANTAI PENGLAI INTERNATIONAL AIRPORT and we will pick you up.
