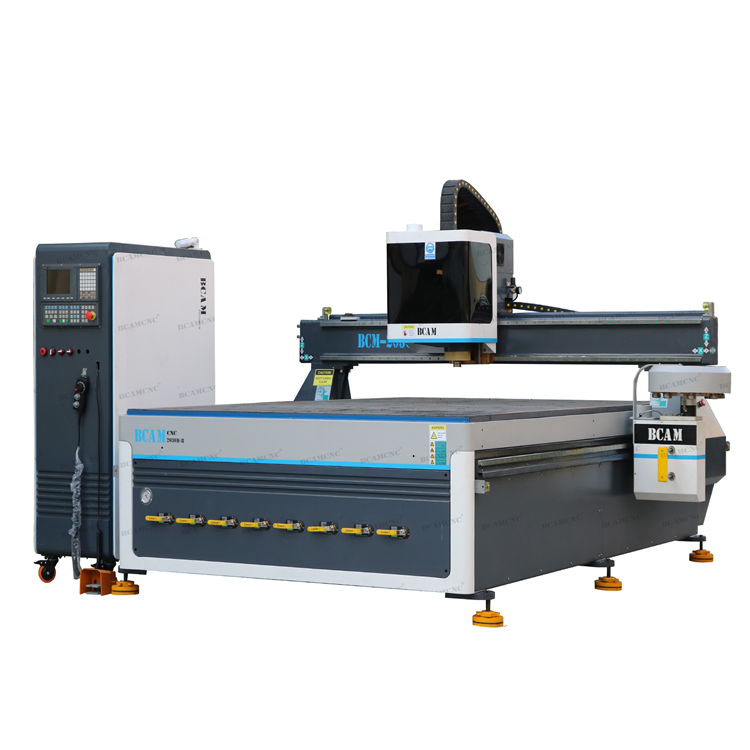

Wood cnc router 3d carving machine with carousel tools changer /1325 1530 2030 cnc woodworking machinery

Wood cnc router 3d carving machine with carousel tools changer /1325 1530 2030 cnc woodworking machinery

FOB Reference Price: Get Latest Price

≥1 Sets

US $17999

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Positioning Accuracy (mm):: 0.03 mm

Travel (X Axis)(mm):: 1300 mm

Travel (Y Axis)(mm):: 2500 mm

Repeatability (X/Y/Z) (mm):: 0.02 mm

Place of Origin:: Shandong, China

Brand Name:: BCAMCNC

Voltage:: AC380V/50HZ/3Phase

Dimension(L*W*H):: 2000*3000*200mm

Weight (KG):: 2100

Warranty:: 3 Years

Working area:: 2000*3000*200mm

Table structure:: T-slot+vacuum table

Spindle speed:: 0-24000rpm/min

Control system:: Taiwan Syntec Control System

Max. Travel ling speed:: 80m/min

X,Y,Z Guide Rail:: Taiwan CSK/TBI/HIWIN Square Rail

Driver & motor:: Yaskawa servo motor and driver

Weight:: 2100kg

Power:: Italy 9.6kw

Transmission:: Helical Rack Pinion

Certification:: CE ISO

Quick Details

Working Table Size(mm):: 2000×3000

Machine Type:: Electrical Router

Range of Spindle Speed(r.p.m):: 6000 - 24000 rpm

Positioning Accuracy (mm):: 0.03 mm

Travel (X Axis)(mm):: 1300 mm

Travel (Y Axis)(mm):: 2500 mm

Repeatability (X/Y/Z) (mm):: 0.02 mm

Place of Origin:: Shandong, China

Brand Name:: BCAMCNC

Voltage:: AC380V/50HZ/3Phase

Dimension(L*W*H):: 2000*3000*200mm

Weight (KG):: 2100

Warranty:: 3 Years

Working area:: 2000*3000*200mm

Table structure:: T-slot+vacuum table

Spindle speed:: 0-24000rpm/min

Control system:: Taiwan Syntec Control System

Max. Travel ling speed:: 80m/min

X,Y,Z Guide Rail:: Taiwan CSK/TBI/HIWIN Square Rail

Driver & motor:: Yaskawa servo motor and driver

Weight:: 2100kg

Power:: Italy 9.6kw

Transmission:: Helical Rack Pinion

Certification:: CE ISO

BCAMCNC

BCAMCNC , a professional machinery manufacturing company, with 6000 square meters factory，a highly specialized workforce and more than 10 Patent Technologies has gained a global reputation as one of the most reliable and trusted CNC machinery solution providers. BCAMCNC comprehensive in the production, design, manufacturing, trade and service of CNC machine like CNC Router, Laser cutting machine, Digital cutting table, Fiber laser cutting machine and Edge banding machine etc., Our wide variety products used in the field of Woodworking, Sign Making, Panel Furniture Production, Jewelry pieces, Packaging etc., High quality products with the high production efficiency. All our products are precision engineered to ensure the high standard expected from ourselves. The whole manufacturing process is meticulously and systematically controlled to guarantee the precision and quality.

Wood cnc router 3d carving machine with carousel tools changer /1325 1530 2030 cnc woodworking machinery

Product Description

Technical Parameter	Specification
Model	BCM2030D
Working area	20003000200mm
Table structure	T-slot+vacuum table
Spindle motor	Italy 9.6KW Air-cooling spindle with tool changer
Tool changer	12 position carousel tool changer with ISO tool holders and tool collets
Spindle speed	6000-24000rpm/min
Max. Rapid Travel Rate	80m/min
Max. Working Speed	60m/min
Motor and driver	Japan servo motor and driver
Reducer	Jaoan reducer
X,Y,Z Rail and Trasmission	X Y axis helical rack and pinion transmission, Z axis TaiwanTBI Ball Screw
Guide Rail	Taiwan CSK/TBI/HIWIN Square Rail
Inverter	Delta inverter 11kw
Control system	Taiwan Syntec Control System
Command Language	G Code
Interface	USB
Software Compatibility	Option:Type3, Ucancam, solidworks, ArtCAM, Vcarve, Vcarve Pro, Alphacam,etc.
Footprint	390030002400
New Weight	2400kgs
Working Voltage	AC380V/3PH/50Hz(optional: 220V)

Features

1. Italy spindle is the world famous spindle brand, cooling efficiency, Stable, esay maintenance, enjoy international warranty service. 2. Equipped with 12 position carousel tool magazine, can change tools speedy and freely. 3. China Taiwan Syntec control system: Human - machine touch screen is easy to operate. It can support *.g; *.nc *.ug; *.demo; *.iso; *.eng; *.cut; *.dxf; *.plt; *.txt; etc. 4. Japan Yaskawa servo motor and driver have high torque, high load, fast response, no low frequency vibration. Closed-loop control system is more accurate. 5. Active safety system: When people enter machine working area and impacted by the gantry, the machine would stop immediately to keep safe. 6. Z axis board and T-slot use galvanized aluminum alloy, More durable, beautiful, and strong. 7. 8-10mm heavy duty welding bed, and do stress relief for the frame, to make sure the machine bed/ frame is strong after welding.

Detailed Images

Application

Application of 2030 3d cnc wood carving router:

CNC Router machine is mainly used in the advertising industry ,small-scale woodworking industry,artwork industry,soft metal processing and electronics industry etc. it can engrave all kinds of signage,trademark, nameplates, badge, photo frame, ect. It can be used for solid wood furniture, mahogany furniture, MDF paint door,solid wood door etc. It can process wooden craft, mural art of wood, artwor ,embossed, jewelery ,aluminum front panel,pop can.copper mold etc.

Our Service

1.36 months guarantee for whole 3d cnc woodworking cnc router, and all lifetime technical support. 2.Main parts(excluding the consumables)shall be changed free of charge if there is any problem during the warranty period. 3.Lifetime maintenance free of charge. 4.We will provide the consumable parts at an agency price when you need replacement. 5. After the machine is finished, our engineers will debug and test the machine, so the machine has been debugged before shipment. 6. If necessary, our company can send personnel to your company to install or adjust.

Packing & Delivery

For each machine, our engineer will operate the machine for testing after machine is finished, the test video will send to clients for check, everything is okay, we will arrange packing.

Packing And Delivery

1.Before packaging, we will lubricate the guide rails, bearings, sliders, etc Then packed the machine with plastic film for clearing and damp proofing.

2. Then put the machine in the plywood case for safety. 3. Transport the plywood case into the container.
