Quick Details
-
Application:
-
Hospital/Basement/Soprts Venues/Apartment/Entry
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Super Window House
-
Model Number:
-
Aluminum Alloy Awning Window
-
Curtain Type:
-
Sliding/Houver/Casement/Roller Shutter
-
Product name:
-
Aluminum Awning Window
-
Color:
-
Customized Color
-
Profile color:
-
White/ Dark Grey/Brown/ Red/Light Grey/Other
-
Quality Standard:
-
AS2047/CE/SONCAP/ISO9001:2008
-
Glass Color:
-
Clear\gray\blue\green\brown
-
Packing:
-
Fumigation Plywood Wood Crate(Avoid Damage
-
Surface treatment:
-
Coated Profile/Polishing/Pvd/Coated Profile
-
Window type:
-
Aluminum Double Glazed Window
-
Glass Type:
-
Single\double\tempering\floating\stained\low-e
Quick Details
-
Frame Material:
-
Aluminum Alloy
-
Feature:
-
Magnetic Screen, Folding Screen
-
Function:
-
Anti-Theft
-
Application:
-
Hospital/Basement/Soprts Venues/Apartment/Entry
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Super Window House
-
Model Number:
-
Aluminum Alloy Awning Window
-
Curtain Type:
-
Sliding/Houver/Casement/Roller Shutter
-
Product name:
-
Aluminum Awning Window
-
Color:
-
Customized Color
-
Profile color:
-
White/ Dark Grey/Brown/ Red/Light Grey/Other
-
Quality Standard:
-
AS2047/CE/SONCAP/ISO9001:2008
-
Glass Color:
-
Clear\gray\blue\green\brown
-
Packing:
-
Fumigation Plywood Wood Crate(Avoid Damage
-
Surface treatment:
-
Coated Profile/Polishing/Pvd/Coated Profile
-
Window type:
-
Aluminum Double Glazed Window
-
Glass Type:
-
Single\double\tempering\floating\stained\low-e
Wholesale Patio Vertical Opening Aluminium Profiles Shallow Box Bay Window Top Hung Replacing Bay Window

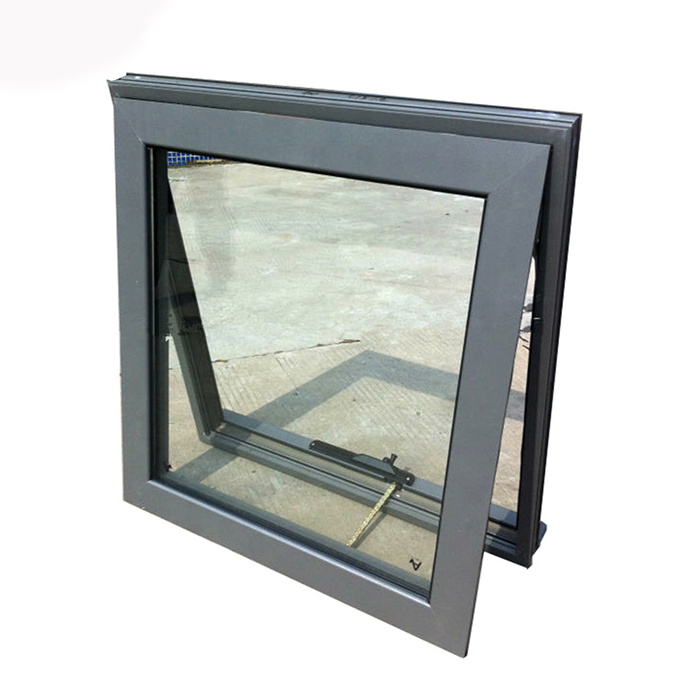

1.Product Introduction
Aluminum alloy awning window has advantages like big opening area and saves indoor space,well sealed,good heat thermal insulation performance,good air tightness, good water tightness and better security.
|
Style |
Aluminum Alloy Awning Window |
|
|
Profile Brand |
Chinese Top Brand,1.2mm/1.4mm/2.0mm Wall Thickness |
Customized |
|
Profile |
Aluminum Profile Or Thermal Break Profile White Color,Champagne Color Or Wood grain Color |
Customized |
|
Surface Treatment |
Anodizing,Power Coating,PVDF Coating, Electrophoresis,Etc |
Customized |
|
Glass |
Single Or Double Tempered Glass,Art Glass,Laminated Glass,Low-E Glass,Etc |
Customized |
|
Hardware |
German Top Brand ‘ROTO’ Or Australian ‘Doric’,Chinese Top Brand |
Customized |
|
Screen |
Retractable Screen,Accordion Screen,Folding Screen,Etc |
Customized |
|
Rubber Strip |
European Standard EPDM |
Customized |
|
Free Sample |
Ready Within 5 Days,Delivery By DHL/TNT |
|
|
Quality Control |
As2047/As2208/Ce/Soccap/Iso9001:2008 |
|
2.Product Details
|
Profiles
|
series |
1. 6063-T5 high quality thermal break aluminium profiles 2. 6063-T5 high quality non-thermal break aluminium profiles Commonly used series:45/50mm: 50series max-glass-thickness:22mm |
|
Thickness |
0.8/1.0/1.2/1.4/1.8mm |
|
|
|
color |
Brown\ dark grey\light grey\ black\star black |
|
Glass |
Types |
Low-e glass\frosted glazing\ grey/blue/green tinted glass,etc. Double tempered glazing:5+12A+5,6+12A+6 Single tempered d glazing:6,8,10,12... Laminated glass:6.38,10.76,10.38... |
|
Thickness |
4-19mm. |
|
|
color |
clear/super clear/ tinted blue/green/coffee brown/gray |
|
|
Hardware |
Brand:Germany brand\Australia brand\China brand Aluminum alloy top hung window: Handle lock+transmission rod+hinge+limit stopper+EPDM sealing strip+invisible screen Aluminum alloy middle hung window: Handle lock+transmission rod+hinge+limit stopper+ EPDM seal strip +invisible screen Aluminum alloy bottom hung window: Handle lock+transmission rod+hinge+limit stopper+ EPDM seal strip +invisible screen |
|
|
Mesh |
Stainless steel security mesh\Aluminium security mesh Fiberglass flyscreen\Retractable flyscreen |
|
|
Finish |
Powder coating \ Anodized \ Electrophoresis \ Wood grain |
|
|
Advantages |
1. Large openable area for maximising ventilation 2. Wide sash profile creates an appealing ‘picture frame’ effect 3. Flush-faced external profile for shedding dust and rain 4. Internally fitted screens 5. Continuous seal system provides excellent weatherproofing and acoustic (noise reducing) properties |
|
3.Profile Details
|
Profiles |
1.Non-thermal break aluminum profiles
3. Frame: 6063/6065 and different aluminum profiles produced by our own factory |
|
Non-thermal break aluminum awning window 1.Common series:45/50mm 2. the biggest glass thickness:22mm 3.The profile thickness: 0.8/1.0/1.2/1.4/1.8mm |
|
|
Thermal break aluminum awning window 1.Common series: 50/70/80mm 2. the biggest glass thickness:3-39mm 3. The profile thickness: 1.2/1.4/1.6/2.0mm |
|
|
Color: Silver oxide, electrophoretic champagne,spraying white/dark grey/ light grey/coffice/brown/red/black, wood grain,others,customized |
|
|
Surface Treatment |
1.Spraying 2.Anodizing 3.Electrophoresis 4.Wood grain transfer 5.Coating |
4.Glass Details
|
Glass |
Types |
Film Glass/ Gray Glass/ Black Glass/ Blue Glass/ Green Glass/ Double Glass/ Double Tempered Glass/ Laminated Glass/ Double Glazing/ Double Glazed/ Tempered Glazing/ Tempered Glazed/ Safety Glass |
|
Thickness |
3mm/4mm/5mm/6mm/8mm/10mm/12mm/6.38mm/8.38mm /10.38mm/10.76mm/12.76mm/11.14mm/5mm+6air+5mm /5mm+9air+5mm/5mm+12air+5mm/6mm+6air+6mm /6mm+9air+6mm/6mm+12air+6mm |
|
|
color |
clear/super clear/ tinted blue/green/coffee brown/gray |
5.Hardware Accessories
Aluminum Alloy Top Hung Window: Handle Lock+Transmission Rod+Hinge+Limit Stopper+EPDM Sealing Strip+Invisible Screen
6.Product Parameters
|
Parameter |
Item |
Parameter |
|
|
K/U (insulation) |
< 1.1 |
Glass thickness/mm |
3-30 |
|
Airtightness/ m3/(m2.h) |
≤0.5 |
Profile Width/mm |
50-135 |
|
Watertighness/Pa |
≥700 |
Transmittance |
60%-98% up to glass type |
|
wind pressure/ KPa |
≥5.0 |
Fire-proof level |
AAAAA |
|
Profile thickness/mm |
0.8-3.0 |
Anti-theft level |
AAAAA |
7.Processing Procedure
Aluminum top-hung window: blanking - assembly angle - glue - EPDM sealing strip - weather strip -installing glass bead and glass -installing hinge - installing handle lock and transmission rod / ”7” handle lock
8.Quality Control
Aluminum alloy inside casement window: blanking - assembly angle - glue - EPDM sealing strip - weather strip - installing glass bead and glass - installing hinge - installing wind bracing - installing handle lock and transmission rod
9.Product Package
1. Stretch film packaging
2. 5 carton packaging
3. Fumigation-free wooden frame packaging
4. Packed in wooden cases with fully enclosed and fumigation-free plywood.
Different packing methods can be applied to FCL and LCL.
10.Project Case
