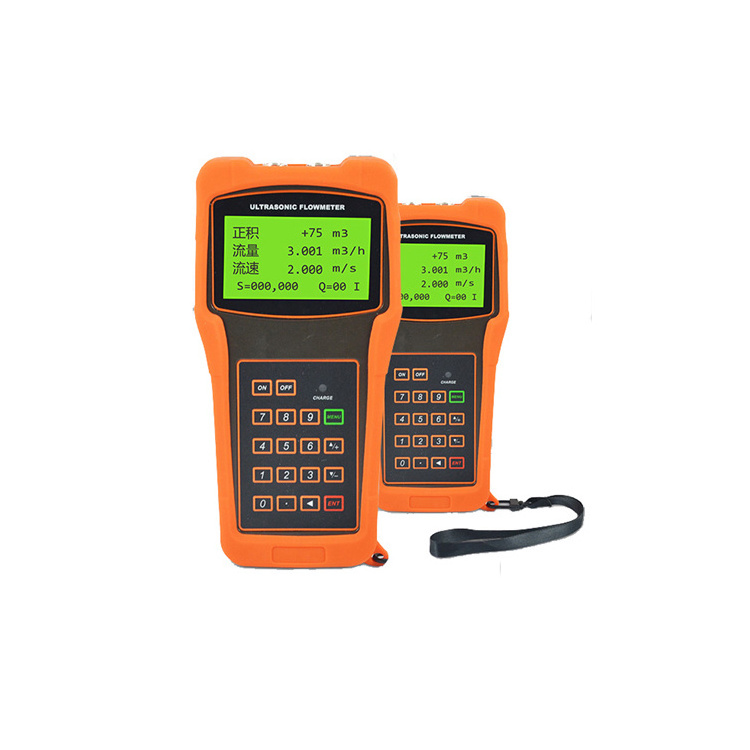

*Non-contact measuring method, small size, light weight and easy to carry
*Built-in rechargeable battery, can work continuously for more than 12 hours, advanced die-cast aluminum host
*Backlit LCD all Chinese display instantaneous flow and positive, negative, static cumulative flow, flow rate, time, analog input
and other data
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SENTEC
-
Model Number:
-
FMU830
-
Product Name:
-
Ultrasonic Flow Meter
-
Flow range:
-
± 32m/s
-
Accuracy:
-
±1%
-
Unit of measurement:
-
meters, feet, cubic meters, liters, cubic feet, US gallons
-
Diameter range:
-
DN15~DN6000mm
-
Output signal:
-
1 channel OCT pulse output (pulse 6-1000ms, default 200ms)
-
Response time:
-
0~999 second (optional)
-
Power supply:
-
Rechargeable battery power supply (distribution charger)
-
Application:
-
flow measurement, flow meter, flowmeter
-
Keywords:
-
Ultrasonic Flowmeter
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
12month
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SENTEC
-
Model Number:
-
FMU830
-
Product Name:
-
Ultrasonic Flow Meter
-
Flow range:
-
± 32m/s
-
Accuracy:
-
±1%
-
Unit of measurement:
-
meters, feet, cubic meters, liters, cubic feet, US gallons
-
Diameter range:
-
DN15~DN6000mm
-
Output signal:
-
1 channel OCT pulse output (pulse 6-1000ms, default 200ms)
-
Response time:
-
0~999 second (optional)
-
Power supply:
-
Rechargeable battery power supply (distribution charger)
-
Application:
-
flow measurement, flow meter, flowmeter
-
Keywords:
-
Ultrasonic Flowmeter
Products Description
Features
|
SPECIFICATION
|
|
|
|
Pipe Diameter
|
DN15~6000mm
|
|
|
Power supply
|
Built-in battery(rechargeable), 100-240VAC adapter
|
|
|
Output
|
1 channel OCT pules output (pulse 6-1000ms, default 200ms)RS232C baud rate 75~57600
|
|
|
Accuracy
|
1%
|
|
|
Display unit
|
meters. feet, cubic meters, liters, cubic feet, us gallons
|
|
|
Data record
|
built-in data logger can store 2000 rows of data
|
|
|
Temperature
|
Host:-20~60℃;flow sensor:-30~ 160℃
|
|
|
Protection grade
|
Host:IP67;flow sensor:IP68
|
|
|
Pipe Material
|
Uniform medium pipe such as carbon steel, stainless steel, cast iron, copper, pvc, aluminum, FRP
|
|
|
Shell material
|
Flame retardant ABS
|
|
Details Images
Smart Proofreading Sensitivity
•Hardly affected by corrosion, foam; hardly affected by atmospheric water vapor, temperature, and pressure changes
Long Life
•Maintenance-free: no moving parts, no need to maintain after installation.•Low driving power, low running cost and long service life
Wide range of applications
•High adaptation: no influence on electrical parameter and density of medium, suitable for various conditions.
Recommend Products
Certifications
Packaging&Shipping
Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.
Q:Could I visit your factory?
A: Sincerely invite you to visit our factory.
Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Credit Assurance
Q: What is the warranty for your product ?
A: Warranty: 1 years, Lifetime maintenance
Q: How to contact you?
A: Email/Skype: sales01(@)cdsentec.com, Tel/wechat/whatsapp: +86 18848456685
The specific price is subject to the parameters, please contact us for the quotation
