Quick Details
-
After-sales Service Provided:
-
No after-sales service
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ANNEWELL
-
Voltage:
-
220V
-

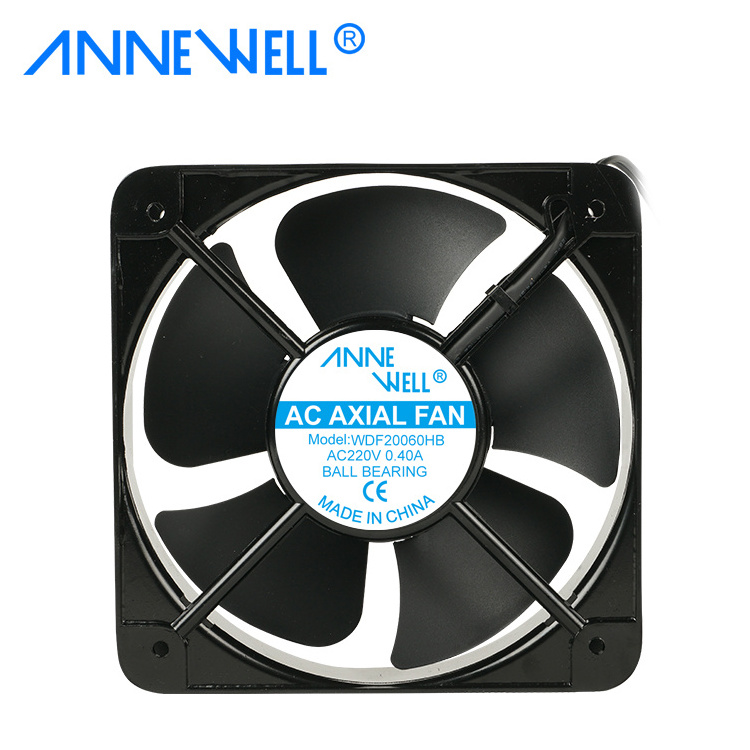

Product name:
-
AC Axial Fan
-
Size:
-
200x200x60mm
-
Frequency:
-
50HZ/60HZ
-
Bearing Type:
-
Ball Bearing
-
Material:
-
Plastic Blade/Aluminum Frame
-
Motor:
-
Copper Motor
-
Air flow:
-
9.8m3/min
-
Noise:
-
54dBA
-
Weight:
-
1540g
-
Current:
-
0.30~0.45A
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
-
Electric Current Type:
-
AC
-
Mounting:
-
FREE STANDING
-
After-sales Service Provided:
-
No after-sales service
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ANNEWELL
-
Voltage:
-
220V
-
Product name:
-
AC Axial Fan
-
Size:
-
200x200x60mm
-
Frequency:
-
50HZ/60HZ
-
Bearing Type:
-
Ball Bearing
-
Material:
-
Plastic Blade/Aluminum Frame
-
Motor:
-
Copper Motor
-
Air flow:
-
9.8m3/min
-
Noise:
-
54dBA
-
Weight:
-
1540g
-
Current:
-
0.30~0.45A
| Model | WDF20060H23 | Size | 200x200x60mm |
| Frame | Aluminum Alloy | Impeller | PBT+30%GF |
| Bearing Type | Ball Bearing | Lead Wire | AWG#20 UL 1015 (Optional) |
| Motor | Shaded Pole Induction Motor | Insulation | Class B |
| Weight | 1540g | ||
| Application | 3D printers,Stage lighting,VR equipment,Intelligent Manicure machine, Projector,High-speed camera,Head mounted display,Automotive industry, Cabinet industry, Power industry,UAV application, Electric forklift,LED lighting industry, Hand held air detector,Charging machine,Nebulizer.Electromagnetic oven,Humidifier,Smart toilet,Intelligent household lampblack machine,Air purifier,Car GPS,Car LED lamp,Aromatherapy machine.CPU cooler,Case. | ||
| Model |
Rataed
voltage |
Frequency |
Rated
current |
Rated
input power |
Nominal
speed |
Noise
DB(A) |
Air flow
CFM |
Air pressure
|
Weight |
Bearing
Type |
| WDF20060-HB | 110 | 50/60 | 0.62/0.58 | 77/55 | 2350/2500 | 64/66 | 335/350 | 17/19 | 1540g | BALL |
| WDF20060-HB | 220 | 50/60 | 0.45/0.40 | 72/50 | 2350/2500 | 64/66 | 335/350 | 17/19 | 1540g | BALL |
| WDF20060-HB | 380 | 50/60 | 0.23/0.20 | 72/50 | 2350/2500 | 64/66 | 335/350 | 17/19 | 1540g | BALL |
