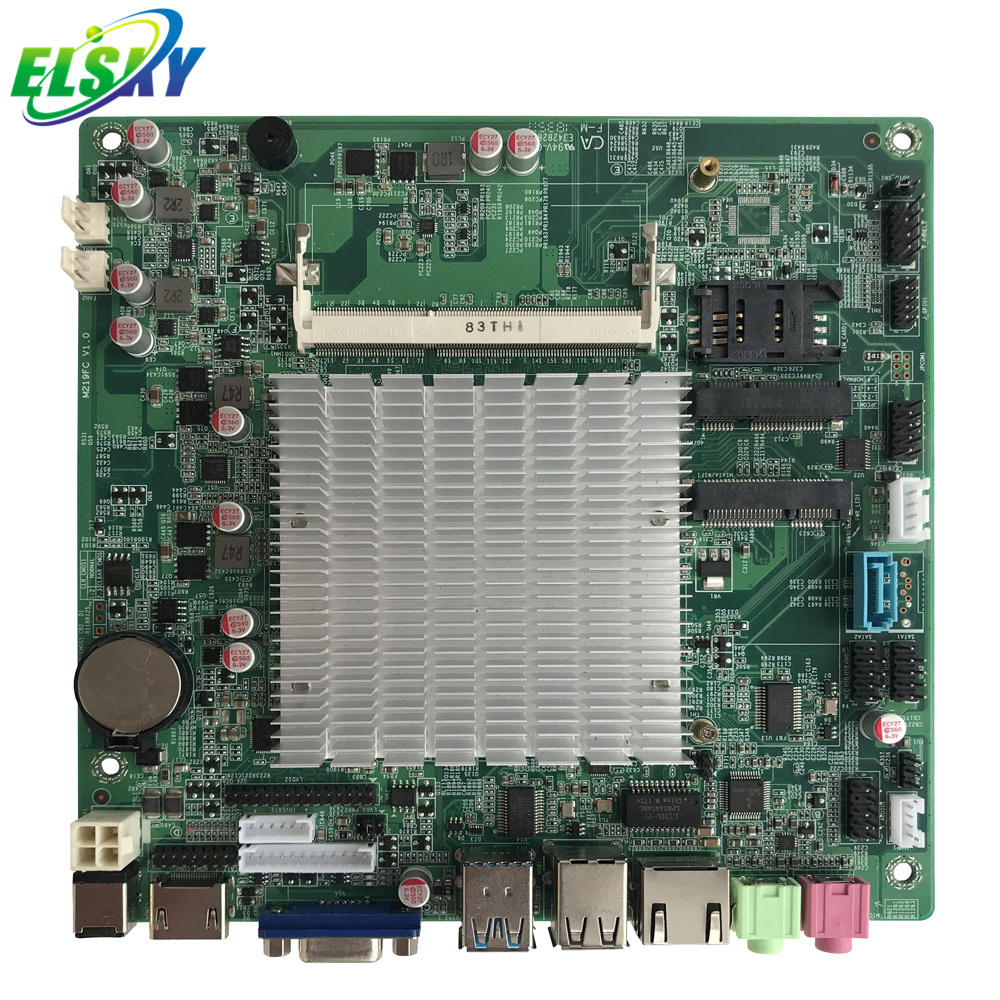

Cost-effective J1800 Processor Quad Cores 2.66GHz GPIO SIM Card LVDS RS232COM Fanless Motherboard
Cost-effective J1800 Processor Quad Cores 2.66GHz GPIO SIM Card LVDS RS232COM Fanless Motherboard
Cost-effective J1800 Processor Quad Cores 2.66GHz GPIO SIM Card LVDS RS232COM Fanless Motherboard
Cost-effective J1800 Processor Quad Cores 2.66GHz GPIO SIM Card LVDS RS232COM Fanless Motherboard
Cost-effective J1800 Processor Quad Cores 2.66GHz GPIO SIM Card LVDS RS232COM Fanless Motherboard
Cost-effective J1800 Processor Quad Cores 2.66GHz GPIO SIM Card LVDS RS232COM Fanless Motherboard
Cost-effective J1800 Processor Quad Cores 2.66GHz GPIO SIM Card LVDS RS232COM Fanless Motherboard
Cost-effective J1800 Processor Quad Cores 2.66GHz GPIO SIM Card LVDS RS232COM Fanless Motherboard

Cost-effective J1800 Processor Quad Cores 2.66GHz GPIO SIM Card LVDS RS232COM Fanless Motherboard

FOB Reference Price: Get Latest Price
≥1 Pieces
US $48
≥50 Pieces
US $47
≥100 Pieces
US $46
≥500 Pieces
US $45
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Memory Type:
DDR3, 1*DDR3 1600MHz low voltage 1.35V Memory channel,up to 8GB RAM.
Chipset:
SOC chipset
FSB / HT:
Dual cores 2.58GHz
Brand Name:
ELSKY/OEM/ODM
Place of Origin:
Shenzhen or Hongkong
Certification:
Other

Quick Details

Maximum Ram Capacity:
8GB
Application:
Industrial computer,IWB,Band ATM,mri
Form Factor:
170*170mm Mini-itx
Memory Type:
DDR3, 1*DDR3 1600MHz low voltage 1.35V Memory channel,up to 8GB RAM.
Chipset:
SOC chipset
FSB / HT:
Dual cores 2.58GHz
Brand Name:
ELSKY/OEM/ODM
Place of Origin:
Shenzhen or Hongkong
Certification:
Other
Price Explanation!!! All of prices are barebone (Motherboard+CPU). If you need Memory,SSD,HDD,WIFI,License operating system,3G,4G,GPS,power adapter and other accessories, please contact us to get the prices. If you need to purchase in large quantities, or want to know about promotional activities/clearance sale, please contact us for the best price. The prices of this product link are for reference only! We don't update product links frequently. If you want to know the latest price, please contact us. Notice:The prices will vary with exchange rates and material costs.All prices are subject to change without notice.All product specifications are subject to change without notice. Thank you for your attention and support!
Product Description

Product Name:

Cost-effective J1800 J1900 J2900 Processor Quad Cores 2.66GHz GPIO SIM Card LVDS RS232COM Fanless Motherboard.
M218FC/M219FC/M229FC Motherboard Specification:
Model
M218FC(J1800 CPU),M219FC(J1900 CPU),M229F(J2900 CPU).


Integrated Processor
Bay Trail:
M218FC motherboard supports dual cores 2.41~2.58GHz J1800 CPU;
M219FC motherboard supports quad cores 2.0~2.42GHz J1900 CPU;
M229FC motherboard supports quad cores 2.41~2.66GHz J2900 CPU.
Processor Quantity
Only support 1 piece processor on the motherboard.
Chipset
Integrated SOC chipset design on CPU.
Memory
1*DDR3 1600MHz low voltage 1.35V Memory channel,up to 8GB RAM.
Network Card
1*Realtek 8111H Gigabit Network card,support wake on LAN,PXE boot.
Audio
Realtek ALC662 HD digital audio decoder,support
Graphics Card
Integrated HD Graphics on CPU,support 1080P,H264,3D play.
Display
VGA, LVDS,support synchronously,asynchronously dual screen display.
Hard Disk
(Storage)
1*SATA2.0 , 1*MSATA2.0
Power Supply
DC12V 5A(Current:5A or more than 5A) DC plug:5.5*2.5mm
Heat Sink
Fanless
Form Factor
Mini-itx,170*170*18mm(L*W*H)
I/O Interfaces
1*DC-in ,1*VGA ,3*USB2.0 , 1*USB3.0 , 1*RJ45 LAN , 1*Line-out , 1*Mic-in.

Built-in Pins
1*LVDS , 1*VGA , 4*USB2.0 , 1*RS232 COM , 1*GPIO , 2*FAN , 1*SIM Card slot ,1*CLR_CMOS , 1*F_PANEL , 1*SATA_Power ,1*AUTO_SW(Support hardware control " power on").
Expansion Bus
1*Mini-PCIE slot,support WIFI,4G,GPS,MSATA.
Operating System
Win 7(32bit,64bit) , Win 8.1 , Win 10 , Linux ,Android. (Not support Win XP)
System Monitor
/ Watch dog
Support CPU temperature monitor, fan speed,system temperature.

BIOS
AMI BIOS;
Support read only,power on,timing switch,remote switch,intelligently identify devices.
Operating            Environment
Working temperature :-10℃~60℃
Relative humidity:5%~95%,non-condensation.
Fitted Chassis
HD4000,HD4001,IPC6000
Options
3G/4G/WIFI module,Cable,RAM,SSD,HDD,etc.

Application:

Finance retail,Advertising machine,Network Security,Firewall Host,Firewall Server,Firewall Computer,Audio Player/Server,Electronic map machine,All-in-One PC,POS cash register,
Interactive ordering machine in restaurant,Intelligent transportation,Digital signage,
Education IWB(Interactive Whiteboard),Conference electronic whiteboard,Industrial PC,
Subway/Metro/MRT/Tube/automatically Entrance&Export gate,Face recognition turnstile gate,
Industrial camera,Data collection,Video capture,Automatic welding machine,Industrial robot,Bank ATM and other fields.

Detailed Images

Front


Side


I/O interfaces

Related Products

M218F/M219F/M229F


M335F/M345F/M420F


NANO8F/NANO9F


HD4000


HD4001


IPC6000


Packing & Delivery

Packing:

Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and separated by stiff cardboards in carton boxes.

Total weight:
1 piece motherboard about 0.4~0.5KG;

20pcs motherboards about 8.5KG;

100pcs motherboards about 40~45KG;

200pcs motherboards about 80~85KG.


Carton size:

20*20*8cm carton for 1~2 pcs motherboard;

47*30.3*23.5cm  carton for 10pcs motherboard;

50*49*20cm carton for 20~30pcs motherboard.

Shipping:

3 working days after received full payment(In stock).

Express:DHL,Fedex,UPS,TNT,etc.
