Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LANScientific
-
Model Number:
-
TrueX COAT 1/TrueX COAT 2
-
Product name:
-
XRF spectrometer
-
Detection range:
-
Mg~U
-
Detector:
-
BOOST Si-Pin/SDD(optional)
-
Display:
-
4.3" touch screen
Quick Details
-
Warranty:
-
One year
-
Size:
-
254*79*280mm
-
Weight:
-
1.6Kg
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LANScientific
-
Model Number:
-
TrueX COAT 1/TrueX COAT 2
-
Product name:
-
XRF spectrometer
-
Detection range:
-
Mg~U
-
Detector:
-
BOOST Si-Pin/SDD(optional)
-
Display:
-
4.3" touch screen
Product Description

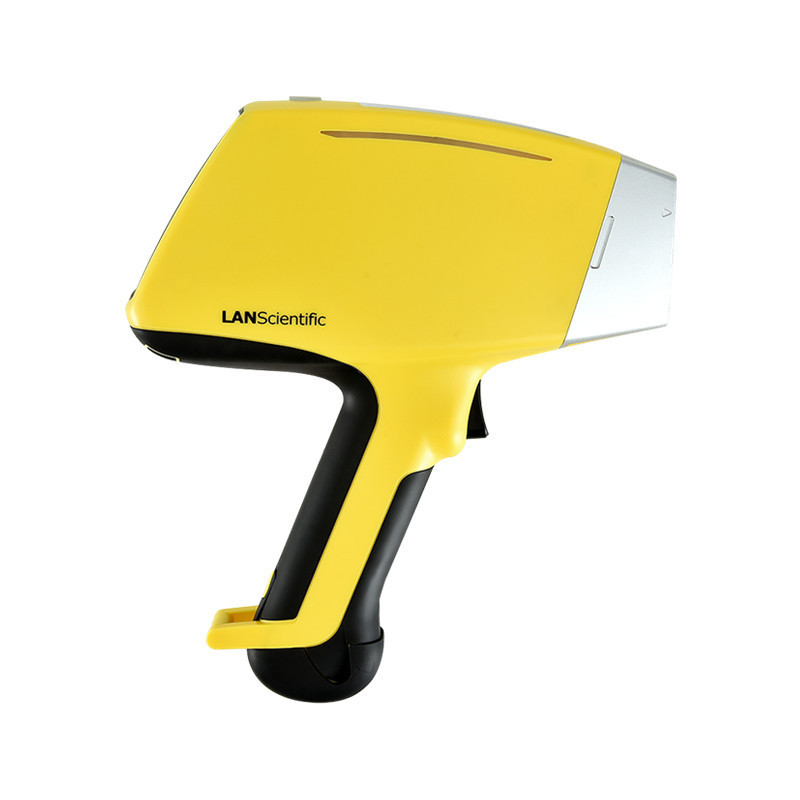

TrueX COAT coating thickness measuring instrument is a hand-held XRF instrument with excellent performance, relying on years of XRF technology research and development experience and integrating coating market demand. TrueX COAT is suitable for coating thickness measurement and material analysis with the advantages of non-destructive, reliable, high productivity and high flexibility. It can be used for qualitative analysis of elemental composition of samples, as well as thickness measurement of coatings and coating systems. Widely used in circuit board, semiconductor, electroplating, metal products, auto parts, sanitary ware, jewelry and other industries in the functional plating bath concentration analysis.
Main Features
The instrument is smaller in size and lighter in weight, so it is easy to carry.
High-performance configuration
High-speed processing chips, advanced algorithms and efficient software combine to make instrument analysis faster.
Industrial resistance touch screen
4.3-inch industrial resistance touch screen, compared with capacitor screen. It has better backlight performance, can still be clearly visible under strong light in the field, and avoid the risk of removing gloves in special outdoor environment.
User-customized
Users can create customized professional reports, including company logo, company address, test results, spectrograph and other sample information (such as product description, origin, batch number, etc.).
Technical Parameters
|
Weight
|
1.6KG（with battery)
|
|
Size
|
254×79×280mm（L×W×H）
|
|
Excitation source
|
Up to 50KV/200μA, Voltage and current can be adjusted freely, W/Ag/Rh target (optional)
|
|
Detection Range
|
Mg—U
|
|
Detector
|
BOOST Si-Pin、SDD(optional)
|
|
Display System
|
4.3 inches industrial grade resistance touch screen
Automatically adjust display brightness according to external environment |
|
Data Processing
|
Built-in 32GB storage
USB, Bluetooth, WIFI, can connect the device to the Internet, remote setting and maintenance of the instrument |
|
Security
|
Built-in DoubleBeam™ technology automatically whether samples are at front, enhanced radiation safety and protection
Waterproof, dustproof and shockproof carrying case LANScientific special safety rope |
|
Power Supply System
|
Intelligent battery with MSBUS, can directly check the remaining capacity of the battery, the battery complies with the air
dangerous goods transport regulations |
|
Power system
|
Intelligent battery with MSBUS, real-time monitoring battery, spare battery can directly check the remaining capacity of the
battery, the battery complies with the air dangerous goods transport regulations A single battery can work for about 8 hours |
