Quick Details
-
Brand Name:
-
HiGlue, HiGlue
-
Model Number:
-
510, 510/ 515 /518/ 574/573/5182/5208
-
Type:
-
Flange sealant
-
Product name:
-
anaerobic adhesive
-
Packing:
-
50ml, 250ml, 1kg, 17kg
-
Curing time:
-
12 hours
-
Strength:
-
High strength
-
Viscosity:
-
High
-
Use:
-
Sealing rigid flange faces on transmissions and motor casings
-
Color:
-
Pink
Quick Details
-
CAS No.:
-
25852-47-5
-
Other Names:
-
Flange Sealant
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
HiGlue, HiGlue
-
Model Number:
-
510, 510/ 515 /518/ 574/573/5182/5208
-
Type:
-
Flange sealant
-
Product name:
-
anaerobic adhesive
-
Packing:
-
50ml, 250ml, 1kg, 17kg
-
Curing time:
-
12 hours
-
Strength:
-
High strength
-
Viscosity:
-
High
-
Use:
-
Sealing rigid flange faces on transmissions and motor casings
-
Color:
-
Pink

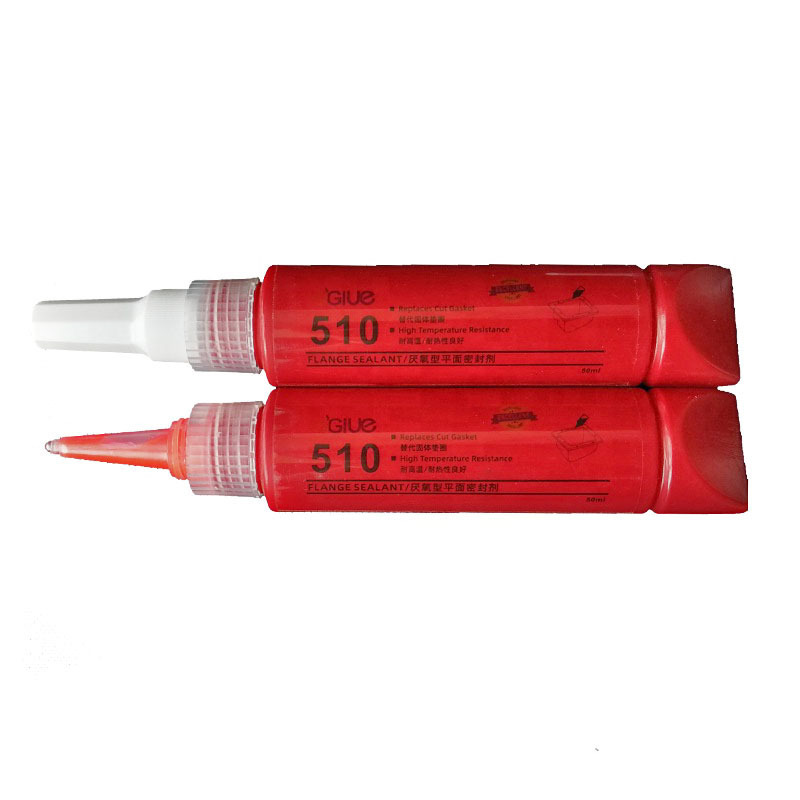

Product Description
This form-in-place anaerobic-curing gasketing sealant provides high temperature and chemical resistance on close fitting, rigid machined metal flanges.
HIGLUE 510 is a high-temperature resistant, form-in-place anaerobic-curing sealant, which forms an instant, low-pressure seal when confined in the absence of air between close fitting metal surfaces. Ideal for rigid flanges, especially in transmissions and motor casings. Unprimed gap-fill is 0.25mm. Recommended for use with aluminum and steel substrates.
HIGLUE 510 is a high-temperature resistant, form-in-place anaerobic-curing sealant, which forms an instant, low-pressure seal when confined in the absence of air between close fitting metal surfaces. Ideal for rigid flanges, especially in transmissions and motor casings. Unprimed gap-fill is 0.25mm. Recommended for use with aluminum and steel substrates.
Specification
|
Model
|
Specification
|
Color
|
Characteristic
|
Cure Time(@ 25°C)
|
Viscosity(mPa.s)
|
|
510
|
50ml 300ml
|
pink
|
high temperature resistance
|
72 hr
|
200000/750000
|
|
515
|
50ml 300ml
|
black
|
general use
|
24 hr
|
150000/375000
|
|
518
|
50ml 300ml
|
red
|
aluminium surface seal
|
24 hr
|
500000/1000000
|
|
574
|
50ml 300ml
|
Orange
|
fast cure
|
12 hr
|
20000/40000
|
Technical information
|
Application method
|
Dispense System, Manual, Screen Printing
|
|
Applications
|
For Close Fitting Parts, For High Temperature Applications, Rigid Assembly Gasketing, Sealing
|
|
Chemical basis / base
|
Dimethacrylate Ester
|
|
Color
|
Pink
|
|
Cure type
|
Anaerobic Cure
|
|
Fixture time, Steel
|
25.0 min.
|
|
Gap fill, Unprimed
|
0.25 mm
|
|
Key characteristics
|
Chemical Resistant, For machined, rigid flanges, Strength: Medium Strength, Thixotropic
|
|
Number of components
|
1 Part
|
|
Operating temperature
|
-65.0 - 400.0 °F (-55.0 - 200.0 °C )
|
|
Physical form
|
Gel
|
|
Recommended for use with
|
Metal: Aluminum, Metal: Steel
|
|
Storage temperature
|
8.0 - 21.0 °C
|
|
Viscosity, 20 RPM
|
90000.0 mPa·s (cP)
|
Features&Benefits
* For close fitting, rigid metal flanges
* Withstands temperatures to 400°F (204°C)
* Adapts to surface irregularities and scratches up to 0.010in (0.25mm)
* Increases the torque capacity of assembled flanges
* Registered to NSF Category P1
* Withstands temperatures to 400°F (204°C)
* Adapts to surface irregularities and scratches up to 0.010in (0.25mm)
* Increases the torque capacity of assembled flanges
* Registered to NSF Category P1
