Quick Details
-
Cord Ending:
-
No plug or with plug you need
-
Weight:
-
50 lbs
-
AWG:
-
10
-
Cord/Cable Length:
-
50'
-
Volts:
-
125V
-
Amps:
-
30
-
Cord/Cable Included:
-
Yes
-
Using for:
-
For indoor, non-weather tight applications only
-
Product name:
-
Retractable spring loaded cable reel
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JH
-
Model Number:
-
CR044
-
Cord Ending:
-
No plug or with plug you need
-
Weight:
-
50 lbs
-
AWG:
-
10
-
Cord/Cable Length:
-
50'
-
Volts:
-
125V
-
Amps:
-
30
-
Cord/Cable Included:
-
Yes
-
Using for:
-
For indoor, non-weather tight applications only
-
Product name:
-
Retractable spring loaded cable reel
JH empty cable reel auto rewind cable reel stand spring loaded cable reel retractable mechanism

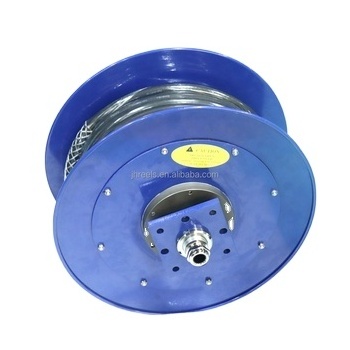

50 ft. Retractable spring loaded cable reel
JH power and light cord reels offer many different styles of outlets and lamps. Easy to mount and structurally strong, the power cord and light cord reels have robotically welded heavy gauge steel frame that attaches to most structurally sound surfaces. For indoor, non-weather tight applications only. *
Features OF Retractable spring loaded cable reel
| We powder coat parts individually before installation for superior coverage and better protection against corrosion. | You won't have to worry about your spring losing its strength or breaking from normal usage. |
- Reinforced steel – The robotically welded steel base offers maximum strength and consistent quality.Retractable spring loaded cable reel
- Heavy duty collector Slip ring – A robust collector ring assures maximum conductivity current flow.
- Long life drive spring – Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
- Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.Retractable spring loaded cable reel
Retractable spring loaded cable reel, retractable cable reel mechanism
More reel drums for your choose...
|
Spring Power cable reel |
Stainless steel hose reel |
Flat car cable reels |
|
1' air hose reels |
Hand crank cable reel |
Motor driven reel drum |
|
2-hose/3-hose reel drum |
Fiber optical cable reel for UAV |
EV car Cahrging cable reel |
JH reels drums are used in power communication, factory workshop, engineering machinery, marine ships, food and chemical industry... And other industries.
empty cable reel auto rewind cable reel cable reel stand spring loaded cable reel, retractable cable reel mechanism
|
JINGHUI HONGKONG.
Main Item list: Spring Driven Reels,Motor Driven Reels,Hand Crank Reels,SS304 /316 Reels,Custom Reels,Slip Rings,Rotary Joints
Customer Service:
ATTN: Nora Yao E-mail: sales1 jhreels.com Phone&WhatsApp&Wechat: +86-15361604458 |
Scan the Wechat in here |
| Packaging Details: | Standard Export Carton or Wooden Package |
| Delivery Details: |
Delivery time for Sample: 7 days / Delivery time for Order depends on quantity
Shipping:BY DHL, FedEx, UPS or TNT,EMS...... |
To increase spring tension:
Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly* until loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.
To reduce spring tension:
This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.
2. How do I install a new drive spring and set pre-turns?
We have several different types of spring driven reels. Each require a slightly different set of instructions. For "How-To" instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.
3. Can my spring driven reel be made "constant tension"?
While most JH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.
Please contact JH Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.
This could mean it has a broken latch spring, bent latch pawl or latch plate. The broken part(s) will need to be replace.
