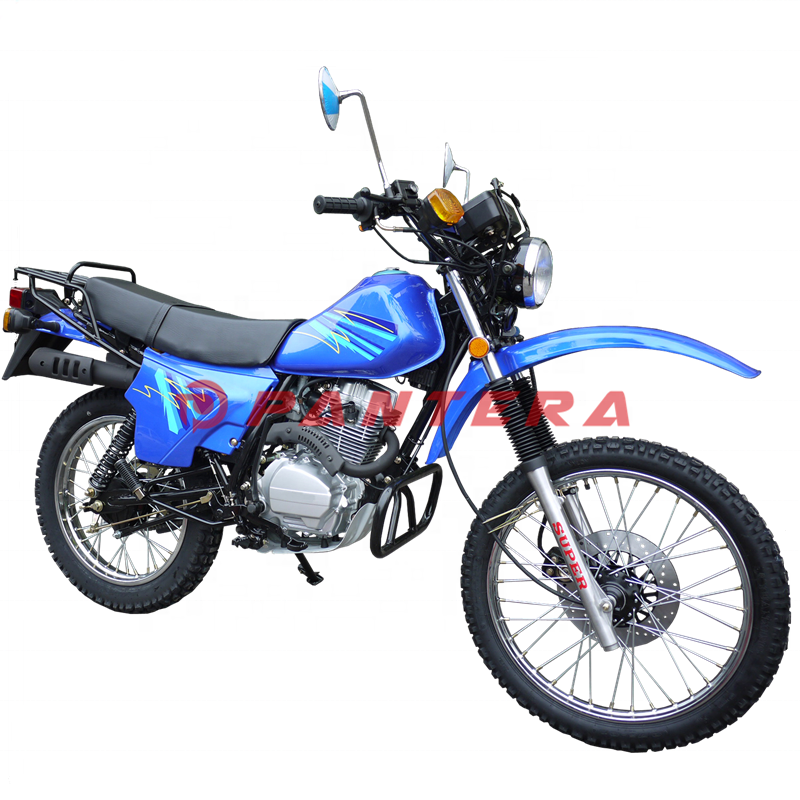

Chinese Motocross 4-Stroke 125cc Mini Dirt Bike Made In China

Technical Parameter

Engine

Engine Type:

Single cylinder,wind-cooled,Four-stroke

Displacement(ml):

193.3

Bore X Stroke (mm):

63×62

Compression Ratio:

9.0:1

Max. Power (kw/r/min)

11.0/7500

Max. Torque (N.m/r/min):

14.0/6000

Max. Speed (Km/h):

≥90

Lubrication:

Pressure ,splash

Clutch Type:

Multiplate wet clutch,automatic

Ignition:

CDI

Starting System:

Electric/Kick ; Electronics/Kick

Transmission System:

Chain drive

CHASSIS

Front Brake:

Disc brake

Rear Brake:

Drum brake

Front Tire:

90/100-21

Rear Tire:

120/90-18

Battery :

12V7Ah

DIMENSIONS

L X W X H (mm):

2220×810×1230

Seat Height (mm):

890

Wheelbase (mm):

1440

Min. Ground Clearance(mm):

280

Max. Permissionable Weight(kg):

150

Rider Capacity:

1 Person

Dry. Weigth (kg):

139

Engine Oil (L):

1.1L

Fuel Tank Capacity(L):

12.9L

OTHER

Packing Size (mm):

1890×460×860

Packing Weight(kg):

159

Container Loading(40HQ):

93
